Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 6COM: |
6USB |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Maximum Memory Capacity: |
4G |
| Memory: |
DDR3 |
| SATA Interface: |
SATA2.0 |
| Structure: |
3.5inch |

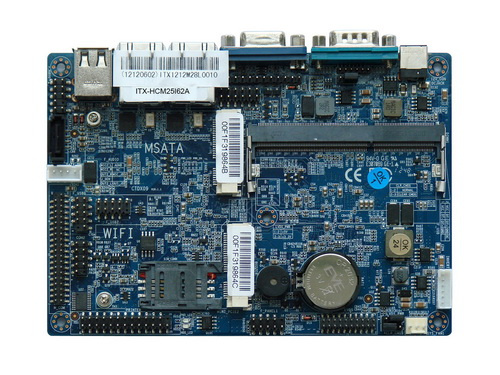

Product Description
CPU Intel Atom D2550 1.86Ghz Low consumption processor( TDP13W,667Mhz)
Chipset Single chip: Intel NM10
Memory 1 x SODIMM DDR3 1333/1066MHz DIMM, Max support 4GB
Graphics Onboard Intel GMA3600 support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Realtek 8111E, 10/100/1000M lan support PXE.
Storage Interface 1 x SATA2.0 Hard disk connector
Expansion Slots 2x MINI PCIE slot
USB Support 6 PCS USB 2.0 Porst (4 pcs need extend)
Internal
I/O Connectors 1 x SATA headers
1 x CPU fan header
1 x front panel header
1 x F_Audio header
2 x USB 2.0 headers
1 x Clear CMOS Header
6 x COM headers
1x GPIO header
1 x VGA_H header
1 x 24bit LVDS header
1 x LVDS_INVERT header
1x LPT header
1x SIM header
Back Panel
Connectors 1 x VGA port
1 x COMI port
2 x USB 2.0 ports
2 x RJ-45 ports
1x DC port
I/O Controller 1 x IT8782F
BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE
Form Factor 146 x 102mm
Work Environmental
Working conditional temperature -15~55°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
