Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pole: |
4 |
| Function: |
Turn Switch |
| Rated Continuous Current: |
40-1000A |
Product Description

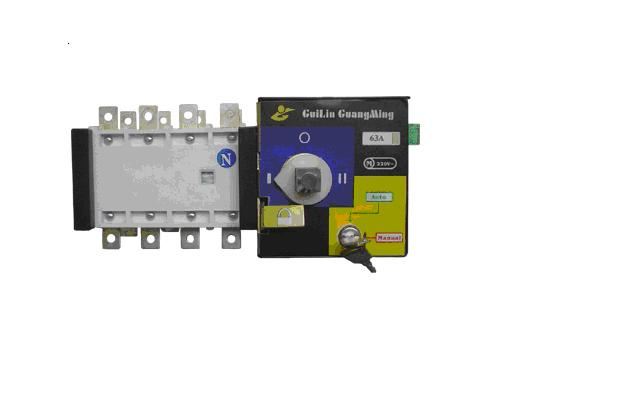

AUTO transfer switch
Promise heat current Ith 20A 40A 63A 80A
Insulation voltage Ui 750V
Withstand impulsion voltage Uimp 8KV
Rated voltage Ue AV440V
Rated current Ie 20A 40A 63A 80A
Load AC31A\AC35A\AC33A
Make-open capacity 10Ie
Make-break capacity 8Ie
Limiting short-circuit current 100KA
Short-time withstand capacity IS 7KA
Change-over time 0.45S
Operating voltage AC220V
Electromotor energy wasting Start 300W\Normal 55W
Weight(kg) 4.2 4.3 4.4 4.5.
Guilin GM Technology Industry Ltd.Was founded in 1999, (is) located in world(-wide) famous tour city- Guilin, China, engaged in a micro-computer and industrial automation control products, research and development, production and marketing of high-tech enterprises.The company has a sound quality management system, strong R & D strength and efficient management mechanism, as well as advanced R & D and production facilities.After 10 years of hard-working and continuous improvement, the company has developed from small scale to a large company.
At present, the main products are DACTS series diesel generating units automatic control, special vehicles, automatic control engineering, Screw Compressors intelligent controller series, the central air-conditioning controller, hot and cold water unit controller, GPS terminal on-board control, System monitoring software platform, and so on.Cost-effective and reliable high-end clients in the telecommunications and the acclaim, military, transportation, building and many other intelligent end-user in widespread use.
The company also introduces advanced monitoring and control of new products according to the needs of the market, at the same time as the need for industrial upgrading and updating of GM's customers systems integration solutions
