Product Specifications
| Prod Model: |
YS-631-X 4.8MM |
| Markets: |
North America,South America |
| Shape: |
CP2 |
| Standard: |
NBR Standard |
| Certification: |
NBR |
Product Description

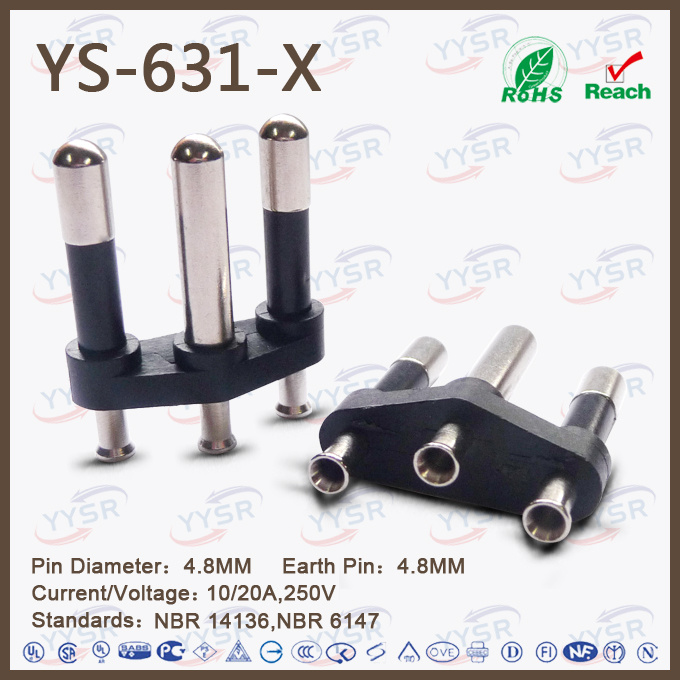

YS-631-X Brazilian NBR 14136 plug
Hollow pin plug insert
Three Pin , 20A , 4.8MM in diameter
Code: YS-631-X
Name: 20A 3 Pole Brazilian plug insert ,Round brass pin
Appearance: Plug Insert / Plug part / Plug
Color: White/Black
Finish: Nickel Plated
Product Show
Material
Brass: H62~H65 (lead free)
Plastic: PBT 30% glass-reinforced(with ROHS,REACH,PAHS,PHTHALATE)
Technical data
2 pins diameter: 4.8mm+/-0.06
2 pins length: 31+/-0.2mm
Applicable cables:0.75~2.0mm
Competitive Advantage
1) Iso/invention certified & RoHs
2) High grade materiel
3) Best quality product
4) Competitive price
5) Production capacity: 700,000PCS per day.
Recommend Product
And YS-631-X is similar with YS-631. The 2 PINS of YS-631-X are 4.8mm. But the 2 PINS of YS-631 are 4.0mm.
Another Brazil Plug Insert
YYSR has many kinds of Brazil plug insert, such as 4.0mm pin and 4.8mm pin or 3 pin and 2 pin plug.
|
Brand |
YYSR |
|
Code |
YS-631-X |
|
Pin |
Hollow pin & Solid pin |
|
Type |
Crimping |
|
Description |
4.8mm 3 pin plug with insulation |
|
Color |
Black & White |
|
Current / Voltage |
10/20A, 250V |
|
Material |
Brass: H62~65 BRASS with Nickel-plating
Plastic: PBT 30% glass-reinforced |
|
Environmental Certifications |
ROHS,REACH,PAHS,PHTHALATE |
|
|
|
|
PACKING LIST |
|
|
Code |
YS-631-X |
|
PE BAG |
500PCS/bag |
|
CARTON |
4000PCS/ctn |
|
CARTON SIZE |
44*28*23CM |
YYSR INDUSTRIAL Co., Ltd. (Namely Cixi Yinsheng Electronic Components Factory) is located in Ningbo, founding in 2004. It is professional manufactory engaged in production of plug insert, hollow brass pin and other hardware accessories. Our brand is "YYSR". It's an international trademark. It is an ISO 9001: 2008 certified organization.
Thanks to our highly automated manufacturing process for plug inserts, our quality standards are considered to be an industry benchmark towards which our competition strives.
We are equipped for the challenges posed by the global market and look forward to receiving your individual enquiries for which we are sure to be able to work out innovative and economical solutions.
