20HP Air Compressor for Ukraine Market (DB-20A)

Name: 20HP Air Compressor for Ukraine Market (DB-20A)
Brand: china-manufacturer-directory.com
SKU: 688540915
Availability: InStock
Rating: 4.5 (33 reviews)

Supplier:	Shanghai DHH Screw Compressor Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	DB-20A
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Western Europe
Configuration:	Stationary
Power Source:	AC Power
Type:	Screw
Voltage:	380V and 415V

Product Description

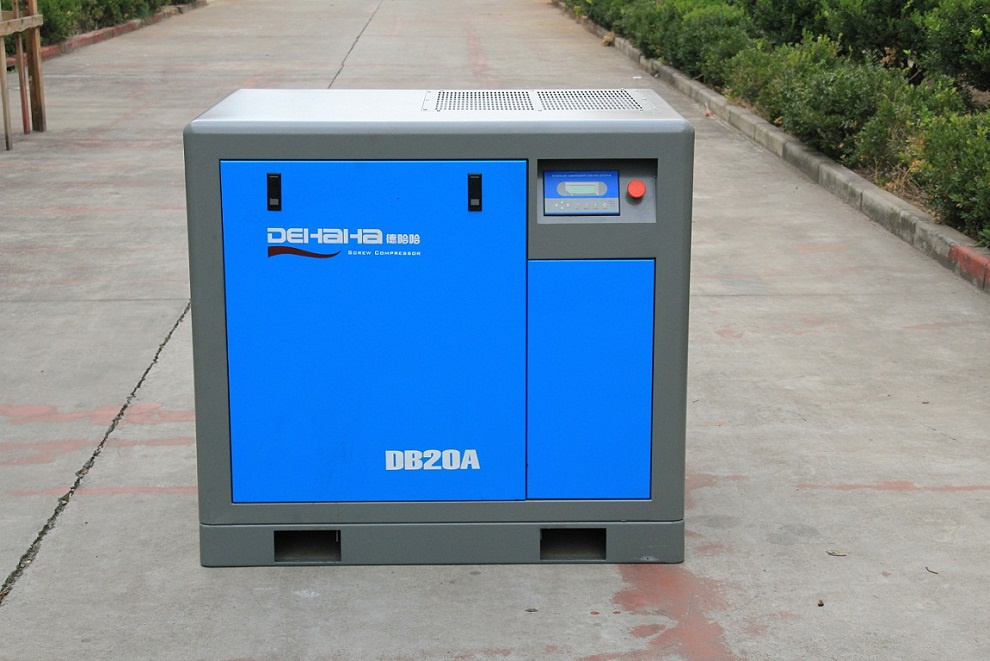

Belt driven 20HP screw air compressor dB20A:
1. Reliable quality, competitive price
2. German Air end, 10 years manufacture experience
3. Working environment temperature: - 5 ~ 45 degree;
4. Discharge temperature is less than ambient temperature about + 10 ~ 15 degree.
5. Drive mode: Belt driven;
6. Start mode: Variable frequency start;
7. Work voltage: 380V / 50Hz, 460V / 230V/415V voltages can be made for customers;

DHH	Air flow Capacity(m 3 /min)/cfm									Power			Noise			Outlet Diameter			Dimension	Weight
MODEL	0.7Mpa			0.8Mpa		1.0Mpa		1.3Mpa			KW	HP		dB(A)			INCH		W× D× H mm	Kg
	m 3 /min	cfm		m 3 /min	cfm	m 3 /min	cfm	m 3 /min	cfm
DB-7.5A	0.91		32.1	0.84	29.6	0.75	26.5	0.63	22.2		5.5	7.5			65			G3/4”	780× 680× 800	300
DB-10A	1.3		45.9	1.2	42.4	1.0	35.3	0.84	29.6		7.5	10			65			G3/4”	780× 680× 800	320
DB-15A	1.7		60	1.6	56.5	1.4	49.4	1.2	42.4		11	15			65			G3/4”	1100× 800× 980	400
DB-20A	2.4		84.8	2.3	81.2	2.0	70.6	1.6	56.5		15	20			68			G3/4”	1100× 800× 980	430
DB-25A	3.0		105.9	2.9	102.4	2.7	95.3	2.3	81.2		18.5	25			68			G1”	1250× 870× 1180	590
DB-30A	3.7		130.7	3.6	127.1	3.2	113	2.8	98.9		22	30			68			G1”	1250× 870× 1180	650
DB-40A	5.2		183.6	5.0	176.6	4.5	158.9	3.8	134.2		30	40			69			G1”	1250× 870× 1180	750
DB-50A	6.5		229.5	6.2	219	5.6	197.8	4.9	173		37	50			69			G1 1/2”	1540× 950× 1290	880
DB-60A	8.0		282.5	7.3	257.8	7.0	247.2	5.9	208.4		45	60			70			G1 1/2”	1540× 950× 1290	1000
DB-75A/W	10.1		356.7	9.5	335.5	8.7	307.2	7.8	275.5		55	75			70			G2”	1600× 1150× 1420	1500

Shanghai DHH Screw Compressor Co., Ltd is high-tech enterprise, which specialized in the R&D and production and exporting of air compressor system equipment over 15 years experience.

---ISO 9001 and CE TUV certified
---Global competitive price and guaranty
---High quality integrated with Germany technology
---Customers over 20 countries in the world
---Supply OEM (customer's logo) for distributors

DHH always make superior quality screw air compressor because of adopting Germany advanced production technology and European famous brands machine parts for compressors.

Shanghai DHH screw compressor Co., Ltd has an experienced expert team, not only provide users with high-quality and high-efficiency compressed air system equipment, but also provide users with optimum air system solutions during before-sale, sale and after-sale services.

Our products are available in 40 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, France, U. K., Germany, Italy, Spain, Poland, Russia, Ukraine, Australia, U. A. E, Saudi Arabia, Egypt, Thailand, Vietnam, Malaysia, Indonesia, India, Iran, South Africa, Colombia, Mexico, Argentina, Brasil, Chile, etc.
