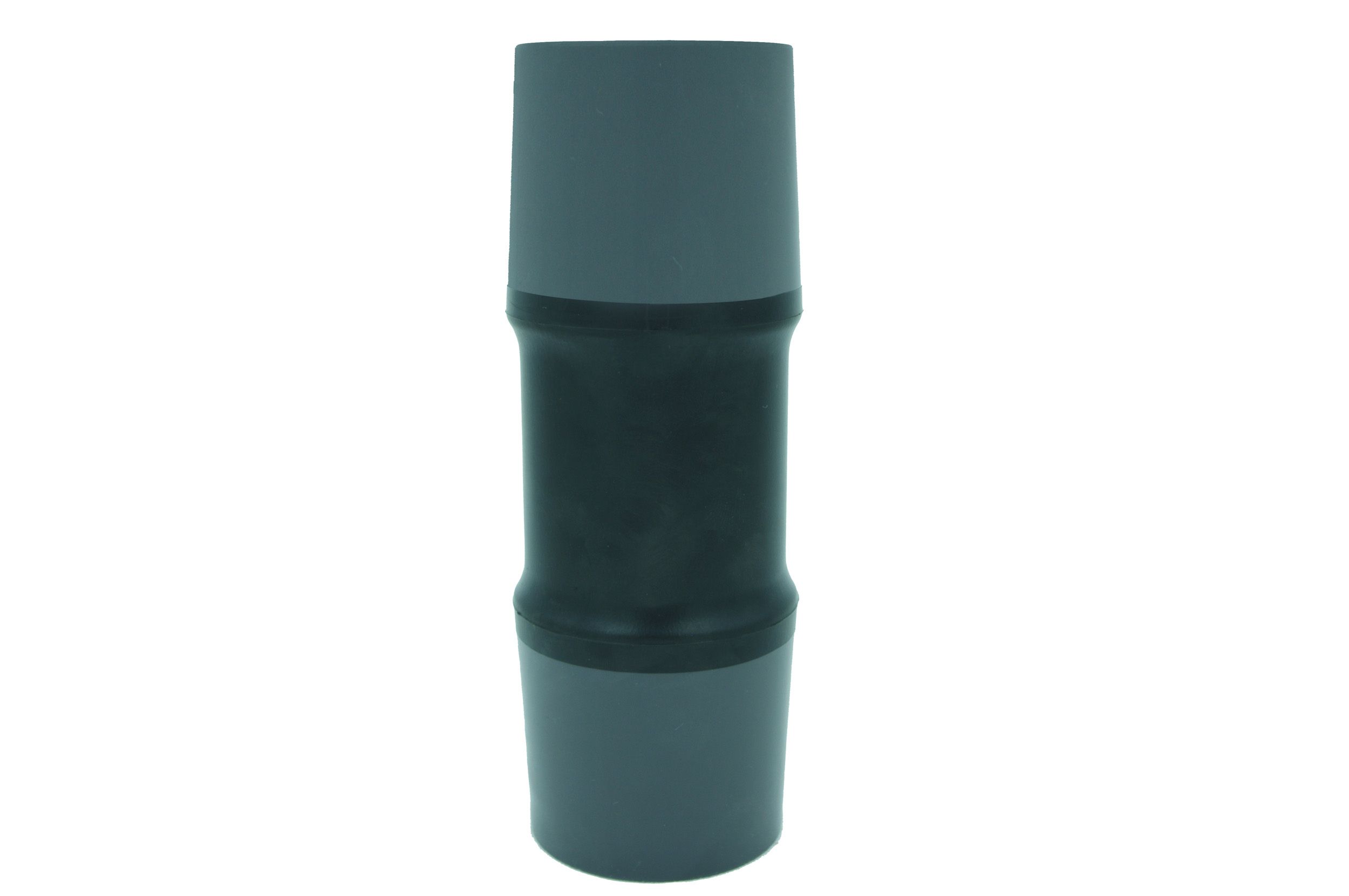

20kv Rubber Inner Cone Connect Cabinet Busbar Connector
Price: |
US $ 170-200/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Specifications
Prod Model: |
hc-43 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Side Extension |
Performance Test: |
100% |
Rated Voltage: |
8.7/15kv |
Rated Current: |
630/1250A |
Type: |
Insulation Sleeve |
Chemistry: |
Hybrid Insulation |
Thermal Rating: |
F 155 |
Maximum Voltage: |
10KV~20KV |
Application: |
Busbar Connector |
Material: |
Silicon Rubber |
Brand: |
Hifuture |
Product Description
10kV Inner Cone Connect Cabinet Busbar ConnectorRange of ApplicationApply to switch connect cabinet for voltage of 6/10kV,8.7/10kV,8.7/15kV, and rated current of 630A/1250A, with function of fulfilling side extension of neighboring switch unit, insulation protection and electrical transmission.Product DescriptionInner cone connect cabinet busbar, adopted silicone rubber material of international famous brand to produce which with excellent insulation performance, heat resistance, cold resistance, dielectric properties, resistance to ozone and atmospheric aging properties, and can be operated under any working conditions.Each batch of raw material have been passed the mechanical properties and electrical properties index testing, which ensures product quality from source.All finished products 100% takes the factory performance test.Import DESMA solid injection production system, with dustless and air-conditioned manufacturing shop, and constant temperature and humidity all year round, which ensures the product not affected by external environment and the quality stability of productWith professional engineering installing team, and years of installation and operating experience, providing the field installation and guide installation, we can make sure the finished product installation quality.Technical FeatureInner cone combined cabinet busbar, adopted copper bar to process, silvering product surface, using non-magnetic and constant force spring to fixed, which ensures the good cooperation of hardware.Circular connection of busbar connection hardware and bushing hardware, big contact area, strong flow capacity.Inside and outside screened design of product, screened resistance lower than 5kΩ,which ensures the safety of product operating and operator, as well as achieve the performance of all insulation, whole sealing, protection, maintenance-free, dust-resistant and so on.
Technical Parameterrated voltage | 8.7/15kV |
rated current | 630/1250A |
the highest operating voltage | 17.5kV |
cable accessories conductor material | copper,copper and aluminum |
long-time running temperature | -40ºC to 95ºC |
rated current conductor temperature rise not higher than | 50K |
short circuit temperature | 250ºC,less than 5s |
power frequency withstand voltage | 42kV,5min, no flashover, no breakdown |
partial discharge | 15kV,≤5pc |
impulse voltage test | 95kV,±10 times |
short circuit thermal stability (conductor) | 24.2KA,2s 2 times, no visible damage |
short circuit dynamic stability | 85.56kA,no less than 91ms,no visible damage |
screened resistance test | before and after aging, screened resistance not bigger than 5000Ω |
SpecificationVoltage Level | Type |
|
8.7/15kV | Insulation busbar | Inner cone connect cabinet | remark |
HCPS-NM-10-I | HCPS-NT-10-I |
|
HCPS-NM-10-II | HCPS-NT-10-II |
|
