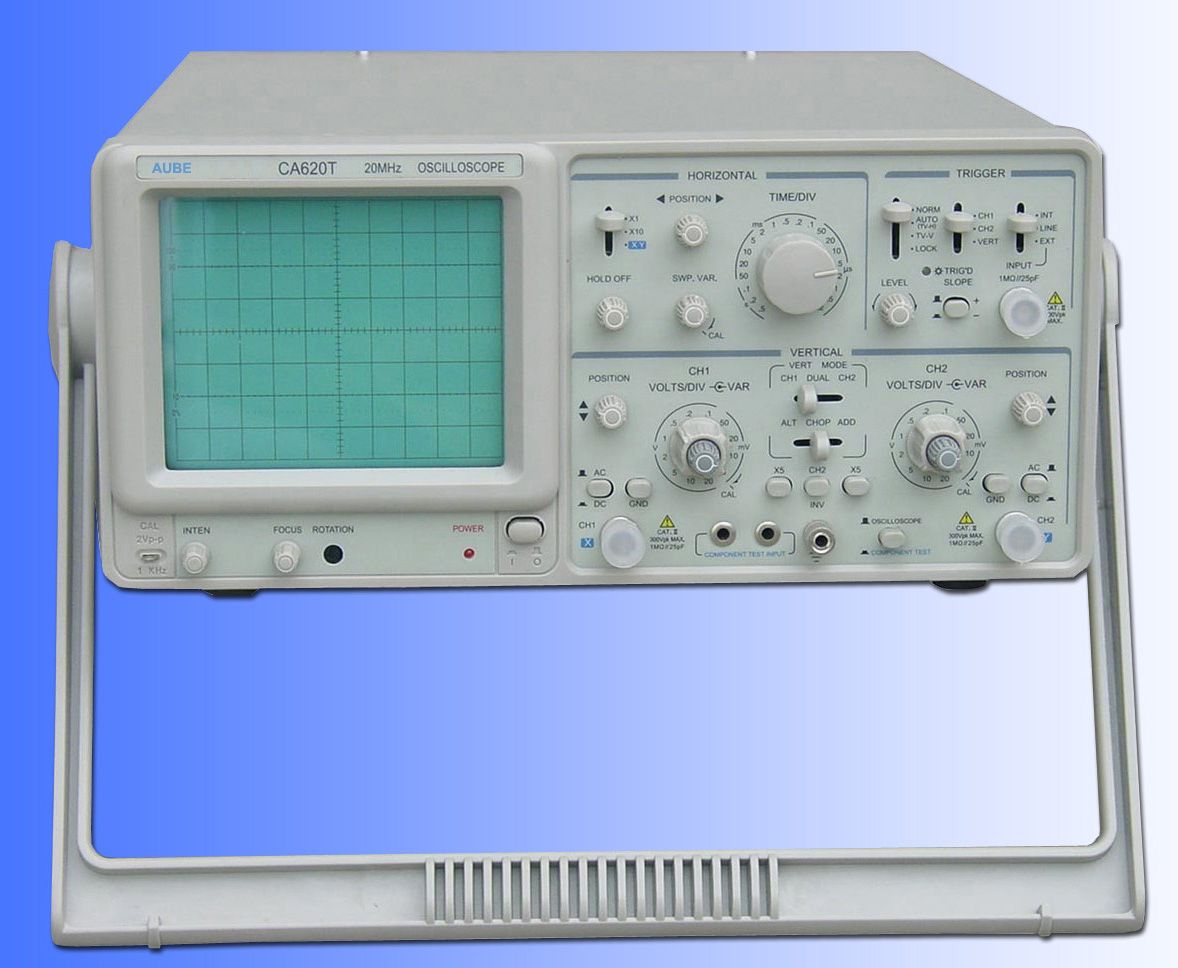

20MHz Analog Oscilloscope for Teaching (CA620)

Name: 20MHz Analog Oscilloscope for Teaching (CA620)
Brand: China-Manufacturer-Directory.com
SKU: 742589045
Availability: InStock
Rating: 4.9 (144 reviews)

Supplier:	Changsha Aube Didactic Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CA620 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sensitivity:	5mv/Div-20V/Div on 1-2-5 Sequence 12 Ranges
Bandwidth.:	DC-20MHz
Operation Mode:	CH1,CH2,Alt,Chop,Add,CH2 Inv
Triggering Mode:	Norm,Auto (TV-H),TV-V,Level Lock
Effective Size:	8 X 10div 1div=10mm
Dimensions (Mm):	310W X 145h X 440d
Kind:	Analog Oscilloscope
Structure:	Desktop
Channel Number:	2
Bandwidth:	20MHz

Product Description

Function:
* Sweep switch use to digital coding switch, light sense, high reliability
* TV synchronization. Observe the stable TV-H and TV-V signal
* Auto focus. Auto adjusting focus level at measuring
* Trigger level lock, trigger circuit at auto synchronization status, can still gain a stable wave without adjusting the level again
* Trigger alt, simultaneity observe two unattached signal
* Six inch screen, observe clear wave shape.
* Component Test (CA620T ONLY)

Vertical Axis
Vertical Axis
Item	Specification
Sensitivity	5mV/DIV-20V/DIV on 1-2-5 sequence 12 ranges
Accuracy	+- 5 % or better
Vertical Magnification Accuracy	x5 : +- 10% or better
Vernier Vertical Sensitivity	To 1: 2.5 or less
Input coupling	AC\GND\DC
Rise Time	17.5ns or less
Bandwidth (-3dB)	DC: 0-20MHz
Bandwidth (-3dB)	AC: 10Hz-20MHz
Input Impedance	1M ohms +- 3% , 25pF +- 5pF
Input Impedance	10: 1 probe: 10MΩ+- 5%,16pF+- 2pF
Maximum Input Voltage	300V(DC+AC peak)at 1kHz
Operation Mode	CH1,CH2,ALT,CHOP,ADD,CH2 INV
Trigger
Trigger
Item	Specification
Trigger Sensitivity	INT: 5Hz-10MHz: 1DIV;10MHz -20MHz: 1.5DIV;TV Signal: 2DIV
Trigger Sensitivity	EXT: 5Hz -10MHz: 0.2V;10MHz -20MHz: 0.3V;TV Signal: 0.5V
AUTO Trggering	20Hz or over
EXT Triggering Input Impedance	1M ohms +- 5%,25pF +- 5pF
Maximum External Trigger Voltage	300V (DC+AC peak) at 1kHz
Triggering Source	INT,EXT,LINE
INT Triggering Source	CH1,CH2,VERT
Triggering Mode	NORM,AUTO (TV-H),TV-V,LEVEL LOCK
Horizontal Axis
Horizontal Axis
Item	Specification
Sweep Rate	0.5s/DIV-0.2us/DIV 20 steps in 1-2-5 sequence
Accuracy	+- 5%
Vernier Sweep Time Control	To 1: 2.5 or slower
Sweep Magnification Accuracy	x10: +- 5% (20ns-50ns: +- 10%)
X-Y Mode
X-Y Mode
Item	Specification
Sensitivity	Same as Vertical Deflection System
Bandwidth	DC-500kHz (-3dB)
Phase Shfit	Less than 3°at DC-50kHz
Calibration Voltage
Calibration Voltage
Item	Specification
Waveform	Square Wave
Output Voltage	2Vp-p +- 2%
Frequency	1kHz +- 3%
CRT
CRT
Item	Specification
Effective Size	8 x 10DIV 1DIV=10mm
Acceleration Voltage	Apporx. 2kV
Phosphor	P31
Power Requirements
Power Requirements
Item	Specification
Voltage	220V +- 10%
Frequency	50Hz or 60Hz
Power Consumption	40VA
Mechanical Specifications
Mechanical Specifications
Item	Specification
Dimensions (mm)	310W x 145H x 440D
Weight	Approx. 8kg
Environment Specifications
Environment Specifications
Item	Specification
Ambient Temperatures	Operating: 0 to 40 Degrees centigrade
Ambient Temperatures	Storage: -10 to 70 Degrees centigrade
Humidity	Operating: 90% RH (40 Degrees centigrade)
Humidity	Storage: 90% RH (50 Degrees centigrade)
Altitude	Operating: to 2000m
Altitude	Non-operating: to 15000m
Component Test (CA620T Only)
Component Test (CA620T Only)
Z Axis (Optional)
Z Axis (Optional)
Item	Specification
Sensitivity	5V p-p(Trace bacomes brightess with negative input)
Bandwidth	DC-1MHz
Input Impedance	10k omhs
Maximum Input Voltage	50V (DC+AC peak)
CH1 Signal Output (Optional )
CH1 Signal Output (Optional )
Item	Specification
Output Voltage	Least 20mV/DIV
Output Impedance	Approx. 50 ohms
Bandwidth	50Hz-5MHz (-3dB)
