Product Specifications
| Prod Model: |
GSB-2C/20 (20T) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valve: |
Made in Taiwan |
| Electric Parts: |
Made in Japan and France |
| Type: |
Shoes |
| Automatic Grade: |
Automatic |
| Certification: |
CE |
Product Description

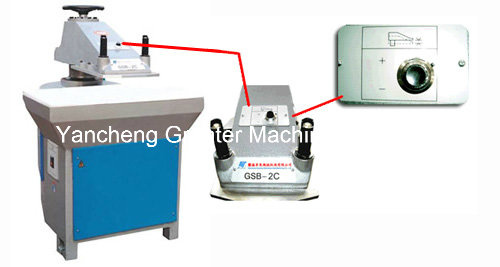

GSB-2C/20 Hydraulic Swing Arm Cutting MachineUse: It is used to scissor up plastic boards, leather, fibre, cotton fibres, paper carton and other similar materials.
Features:1) Safe, two-hand trip operation; The sway arm can swing freely. Best operation line of sight;
2) Used to cutting plastic boards, leather, fiber, cotton fiber, paper cartons and other similar materials, especially suitable for shoe industry;
3) Equipped with lubricating system to lessen wear and prolong service life;
4) Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality shoes;
5) People can adjust height of sway arm from table by simple handle, convenient, stable.
Remark:The machine include cutting board,tools and spae parts.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, and you can choose any color for your machine.
| Model | GSB-2C/20 |
| Max cutting Force | 20 Tons |
| Sway Arm Width | 350× 550mm |
| Stroke Adjustment | 5-75mm |
| Distance Between Upper Board And Lower Table | 65-150mm |
| Table Area | 1000× 500mm |
| Electrical Supply | 3x440/415/400/380/220/200V, 50/60 Hz |
| single phase 240/220V, 50/60 Hz |
| Motor Power | 1.5kw |
| Packing Size(L× W× H) | 1100× 1100× 1600mm |
| Weight ( Without Oil ) | 900Kg |
| Hydraulic oil (46#) | 60 Liters |

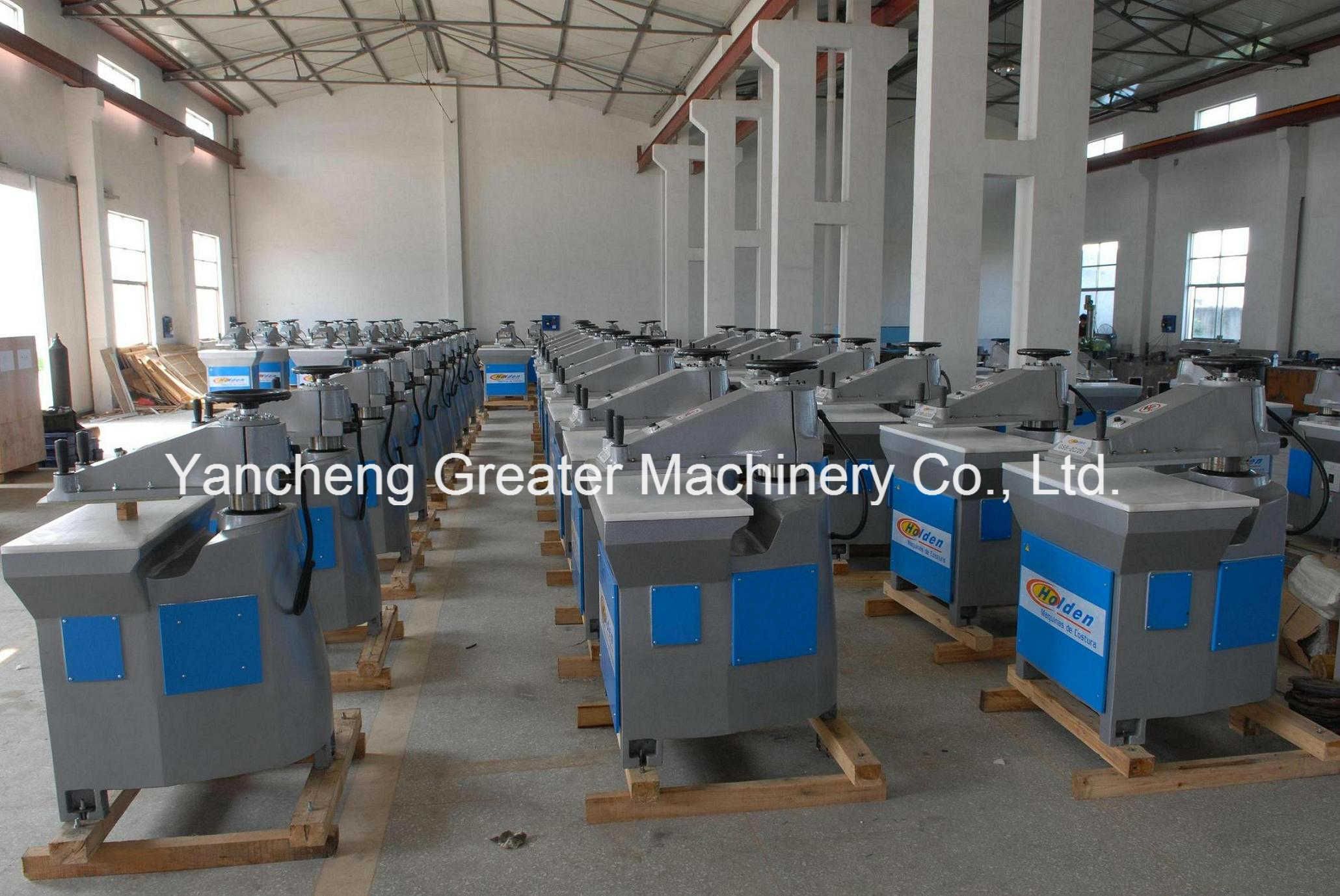

The Greater machinery is absorbed in the automatic equipment of Hydraulic cutting machine and shoe-making machinery. Systematic design of high-accuracy blanking and made. It centralized domain front and most advanced technology, the cutting machine series researched and developed, hold the lead all the time on the market. Our company is active in implementation of brand strategy to promote the technological progress and sticks to the tenet of creating Greater brand, developing national machinery industry and has realized the fast development by legal operation with high-effective management, high product quality and complete after-sale services. Its products sell well in China and have been sold as far as to twenty foreign countries and regions, such as UK, USA, Japan, Russia, Italy and Southeast Asia.
At present our company has formed a whole complete supporting supply system of cutting, mould cutting machinery. Our company can supply the Hydraulic Cutting Machine from 20T to 300T, either single-side or double-side auto infeeding is available. It is applied to leather processing industry, shoe-making industry, case and bag industry, package industry, toys industry, stationery industry, automobile industry, polyurethane processing industry to cut materials such as leather, rubber, plastics, cardboard, cloth, foam, nylon, leatheret, and PVC with mold cutting die. Our company senior technical staff is with abundant experience, in order to help users in the selecting type of the machine and dispose, depend on different blanking technological requirements, seek the most advanced, most suitable solution. Impel users' product quality and profit to get the abundant assurance.
Friends both at home and abroad are welcome to visit us and cooperate with us!
Business Type: Manufacturer/Factory & Trading Company
International Commercial Terms: FOB, CIF
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 4~10 People
Overseas Agent/Branch:
| Address: | Santos, Brazil |
| Telephone: | 55 - 11 - 33130628 |
Export Percentage: >90%
Annual Export Revenue: 2.5 million~5 million USD
Main Markets: North America, South America, Europe, Southeast Asia/ Mideast, East Asia(Japan/ South Korea), Africa, Australia, Domestic
Export Mode: Have Own Export License
Factory Address: NO.8 FENGHUANG ROAD,DAGANG TOWN,YANCHENG CITY,JIANGSU,CHINA
R&D Capacity: OEM, Own Brand(GRT)
No. of R&D Staff: Less than 5 People
No. of Production Lines: 5
