Product Specifications
| Prod Model: |
TLYS1A |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
Product Description

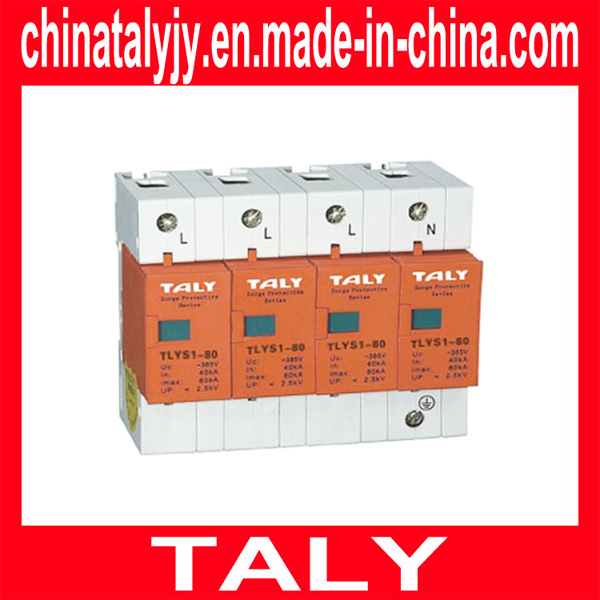

TLYS1A Surge protection device
Scope of application
TLYS1A series surge protector is the surge protector with power supply type under the indoor installation and a port voltage limiting type, which is suitable for the TT, IT, TN-S, TN-C, TN-CS and other power supply system with AC 50/60Hz, rated voltage 230/400V and below, and for the protection
Of low voltage grid and all kinds of electrical equipment and control systems, or for suppressing transient overvoltagewithstand impulse voltage higher than the equipment so that discharges surge of energy. It also can limit the voltage of a variety of surge over-voltage so that it can protect systems circuit and equipment.
Purpose and working condition
Failure from the device
On the module of SPD, it sets failure a from the device. When the protector overheats and breaks down failure, failure from the device can automatically remove it from the power line out. Meanwhile gives an indication signal out. Signage displays green when protector is normal, while it displays red after failure from the device.
Remote signaling contact
SPD can be made with a variety of remote signaling contact. If a module or multiple modules of protector are fail, the contact will close and send fault information out.
Normal working conditions of protector:
1. Altitude does not exceed 2000m;
2. Ambient air temperature: Normal range: -5 ~+40 ° C, extended range: -40 ~ +80 ° C;
3. Relative humidity: 30% -90% under the conditions of room temperature 4. No significant shake and shock vibration
5. No explosive medium, and the medium is not able enough to corrode metal and to damage the insulation of gas and dust (including conductive dust).
Selection principle
1. Lasting applied voltage between two terminals of surge protector should not exceed the maximum
Continuous working voltage of surge protector Uc value;
2. The voltage protection level of surge protector Up should be less than the impact limits of the protected withstand voltage;
3. To select the appropriate specifications depending on different grounding systems and protection modes.
Category
1. Nominal discharge current: 15, 40, 65KA(8/20us)
2. Maximum continuous working voltage: 275V, 385V, 440V
3. Poles No.: 1P, 2P, 3P, 4P
4. Auxiliary function:
1)With remote signal output(Can realize the function of alarm)
2)No remote signal output
Installation instructions
The mounting distance between each level protector should not exceed 10m, but the distance of protector connected to the front of the protected equipment protection and protective equipment should be as short as not greater than 10m. If you can not ensure the installation distance due to the limitation of mounting distance, then there is not necessary to mount decoupling components between each level protector so that making after-level protector can get the protection from pre-protector. In the low-voltage power supply
System, to input the inductor, it can achieve the purpose of decoupling.
Remote signaling terminal parameters
We also produce many various of surge protectors.
Welcome to contact with us if you are interested in. We are looking forward to starting the cooperation with you.
Contact:
Tel: +86-577-57189983
Mobile Phone: +86-13616776676
Fax: +86-577-62713637
|
Type of remote signaling terminal |
Active type |
|
Rated power of terminal |
AC:250V/0.5A |
|
DC:250V/0.1A 125V/0.2A 75V/0.5A |
|
Cross-section of conductor |
1.5mm single conductor |
Specification
Parameter |
TLYS1A |
|
Pole No. |
1P,2P,3P,4P |
|
Rated working voltage Un(V) |
230/400 |
|
ln(8/20μ s)kA |
5 |
15 |
20 |
|
lmax(8/20μ s)kA |
15 |
40 |
65 |
|
Max. continuous working voltage Ue(V) |
275 |
385 |
440 |
275 |
385 |
440 |
275 |
385 |
440 |
|
U1mA |
<1.2 |
<1.6 |
<1.8 |
<1.2 |
<1.6 |
<1.8 |
<1.5 |
<1.8 |
<2.0 |
|
Protection level Up kV |
25Agl |
50Agl |
80Agl |
|
Response time(ns) |
<25 |
|
Leakage current 75% Uc lmA |
<20μA |
|
Test catagroy |
II |
|
Protection level |
IP20 |
|
Environmental temperature limit |
-40 degree Celsius~+80 degree Celsius |
|
Insulation shell material |
PBT/PA66 |
|
Frame retardant level conforms to UL94 |
VO |
|
Installation method |
35mm standard electrical rail |
|
Shell color |
Red |
|
Matching fuse or breaker(A) |
40~63 |
|
Suggesting connection wire diameter(mm) |
Phase wire
Null wire |
1.5~35 Hard wire |
|
Ground wire |
1.5~35 Double color |
|
Standards |
IEC 61643-1 IEC-61643-21
GB18802.1 GB18802.21 |
