Hangzhou Anow Microfiltration Co., Ltd. >> 0.22 Micro Absolute Pleated Cartridge Filter

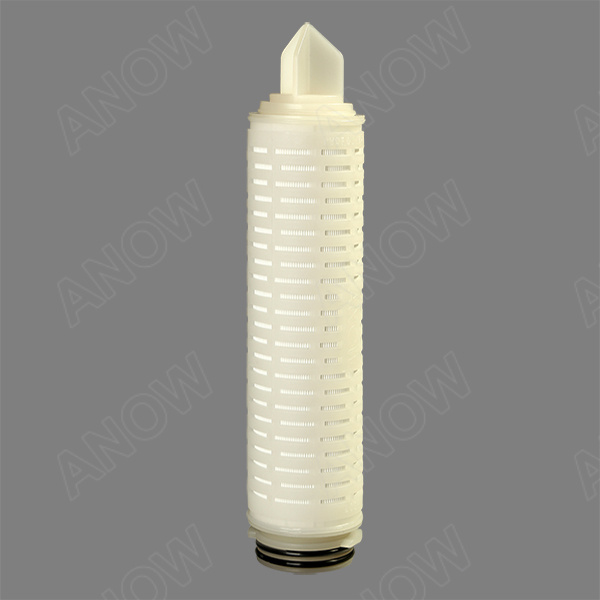

0.22 Micro Absolute Pleated Cartridge Filter

Name: 0.22 Micro Absolute Pleated Cartridge Filter
Brand: china-manufacturer-directory.com
SKU: 772822075
Availability: InStock
Rating: 4.6 (67 reviews)

Supplier:	Hangzhou Anow Microfiltration Co., Ltd.
Price:	US $ 10-60/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LFNN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Anow,OEM
Filter Media:	Double-Layer Hydrophobic PTFE
Diameter:	68
Structure:	PP
Length(in):	5, 10, 20, 30, 40
Filtration Area:	≥ 6.4 Ft2/10 in (≥ 0.60 M2/250 mm)
Removal Rating, Um:	0.01 (for Gas)
Maximum Forward Differential Pressure:	4.2 Bar@23 Degree Centigrade
Integrity Test@23 Degree Centigrade Bubb:	≥ 1100 Mbar with 60/40% Ipa/Water
Multiple Sterilization Cycles:	200 Steam-in-Place Sterilization Cycles
Filtration Grade:	HEPA Filter
Activated Carbon Filter Type:	PTFE

Product Description

0.22 Micro Absolute Pleated Filter Cartridge

Featurea and benefits

Broad chemical compatibility
Absolute construction with retention ratings of 0.05, 0.1, 0.22, 0.45, 1.0, 3.0, 5.0 or 10 µ M
High throughputs and superior flow rates
Long service life and cost-effective
100% integrity testable prior to release

Quality
Cartridge filter produced in a controlled environment
Manufactured according to ISO 9001 certified quality management system

Application

Sterile venting of tanks
Autoclave vacuum break lines
Fermentation air applications
Sterile process gases
CIP at ambient temperature

Materials of Construction
Membrane	Double-layer Polytetrafluoroethylene (PTFE)
Support and Drainage	PP
Core, Cage	PP
End Caps	PP (222/226 with encapsulated stainless steel reinforcing ring)
O-rings/Gasket	Silicone/EPDM/Viton/TEV
Sealing Technology	Thermal Bonding, No Adhesives
Dimensions
Diameter	Φ68
Length	5 inch, 10 inch, 20 inch, 30 inch, 40 inch
Filtration Area, ft 2
≥ 6.4 per 10-inch element
Pore Size, μm
0.01 (for gas)
Maximum Differential Pressure
Forward: 4.2 bar @ 23 C; 1.5 bar @ 85 C
Nitrogen Flow Rate & Pressure Drop , per 10-inch cartridge
≥ 60 m 3 /h at 0.1 bar with 0 bar outlet pressure
≥ 120 m 3 /h at 0.1 bar with 2 bar outlet pressure
Integrity Test - at 23 C
Bubble point	≥ 1100 mbar with 60/40% IPA/water
HydroCorr (water intrusion test)	≤ 0.75mL/min per 10-inch cartridge with water at 2620mbar
Bacterial Retention
Passed the bacterial challenge testing using Brevundimonas diminuta (ATCC19146) at a minimum challenge concentration of 1 x 10 7 CFU/cm 2 .
Non-Fiber Releasing
Meets the criteria for a "non-fiber releasing" filter as defined in 21 CFR 210.3 (b) (6).
Sanitization
May be hot water sanitized for 30 cycles using purified water at 85 Cfor 30 min
Multiple Sterilization Cycles
200 steam-in-place sterilization or autoclave cycles of 30 min at 123 C
Good Manufacturing Practices
Manufactured in an ANOW facility which adheres to Good Manufacturing Practices.

Hangzhou Anow Microfiltration Co., Ltd. is a well-known filtration company in Asia who focus on N66, N6, MCE, PES, PVDF, PTFE membrane development, with pore size ranging from 0.03 μ M to 10 μ M, and design and production of various pleated filter cartridges and capsule filters. ANOW provides professional assistance to liquid and gas & air filtration, separation and purification solutions for customers around the word in biopharmaceutical, medical, food & beverage, microelectronic, chemistry, water treatment and laboratory applications.

ANOW is a state-class high-tech enterprise, who has successfully gotten the certificates of ISO9001 and ISO13485, and obtained the SFDA authorized production certificate of the 3rd medical plastic products, among which disposable microporous membrane and filters for medial use have been honored the registration certificate of medical devices by SFDA. Besides, we have been also honored as Direct Unit of the Membrane Industry Association of China and Direct Company of medical plastic product branch association of CAMDI.

Our plant located in Xindeng Industrial Zone, Fuyang, Hangzhou, covers a production workshop area of 6000 m² , with 3000 m² Area meeting the GMP requirements for manufacturing of medical devices, 100000-class 600 m² Cleaning room and 2400 m² Cleaning room. We have more than twenty lines for the production of microporous membranes and pleated filter cartridges, advanced inspection tools and equipments, as well as professional R&D Centre and Validation Centre. In addition, we have adequate and recognized technical experts such as Professor Meile Gong, for developing new products and providing technical service, which can satisfy our customers both in quantity and quality.

ANOW has been making great efforts to improve the quality management system during the process of obtaining the certificates of production and registration. We particularly attach great importance to R&D to make consistent progress in order to provide customers with excellent products and services.

Our massion is "make\ing the filtration better".
