Product Specifications
| Prod Model: |
PC226, PC326, PC426 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
FCC, CE, CCC, RoHS, CB |
| Front Shell: |
IP65 |
| Touch Panel: |
Mapletouch 5wire Resistive |
| Expand Function: |
Can Add WiFi, Card Reader etc |
| Install Way: |
Desktop or Wall Mounting |
| Mainboard: |
Low-Pressure |
| Material: |
Metal |
| Size: |
10.4"-22" |
| Function: |
Can Built in PCI Slot |
| Screen: |
Optional Muti-Touch IR Touch Screen |
| Memory Capacity: |
2GB |
| CPU: |
Intel Atom |
| Display Type: |
LCD |
| HDD Capacity: |
320GB |
| GPU: |
Intel |
| Display Screen Size: |
22" |
Product Description

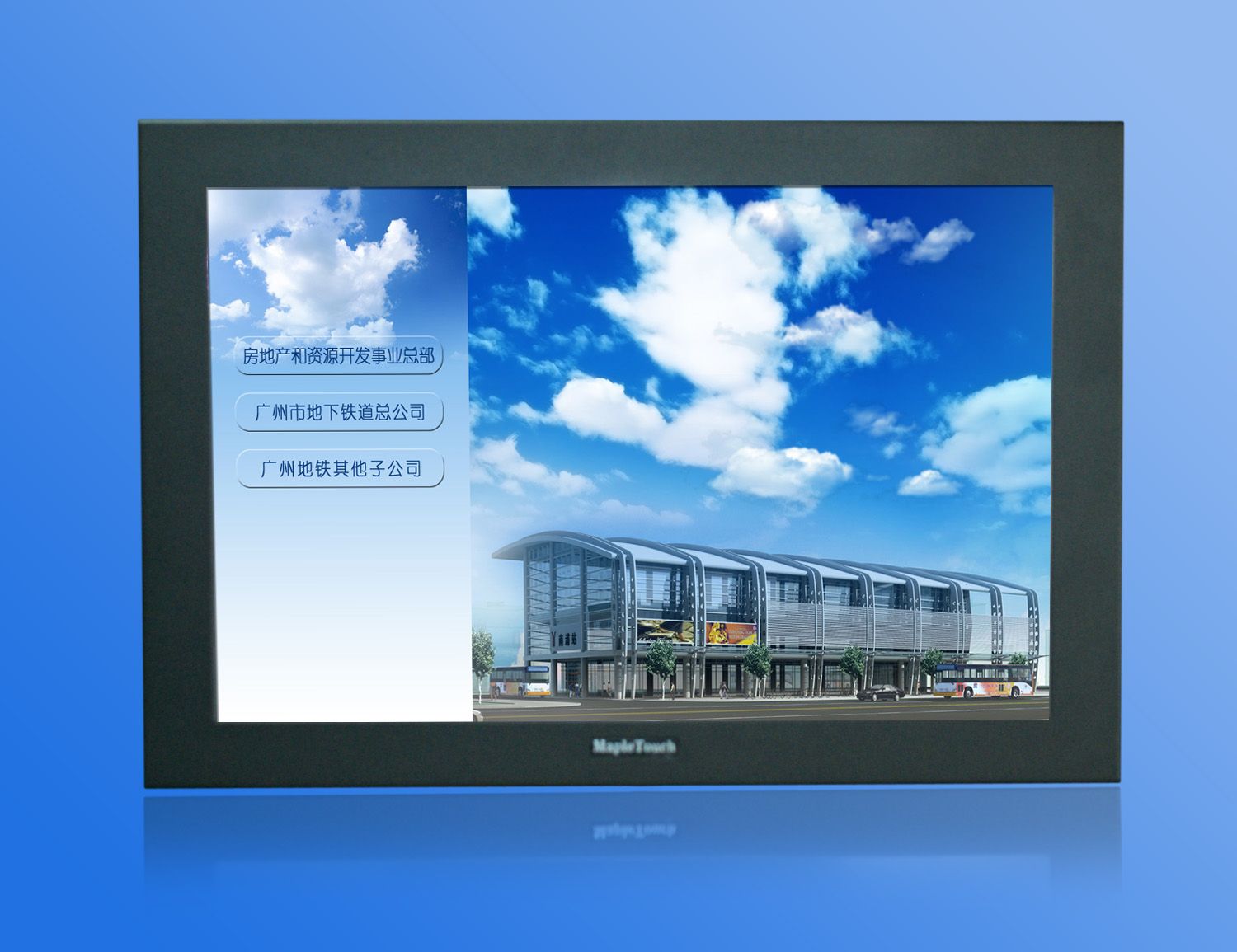

Model PC226W(16: 9)/(4: 3)
Display Area 22"
Resolution 1280*1024(1920× 1080)
Contrast Radio 30000 1
Color Resolution 16.7M
Brightness 400CD/M2
Standard Collocations:
Mainboard Intel 945GM
CPU Celeron M 1.5G~2G or Intel Core 2 Duo
Memory DDRII 1G, 2G
HDD SSD 16G or 320G
LCD MTBF 50, 000 Hours
Back light MTBF 25, 000 Hours
USB port 4 units
RS232 port 2 units
Audio Interface AC97 Audio
Network Interface 10\100Mbps high speed ethernet network (wireless network card optional)
LPT Port 1 unit
I\O Connection:
VGA port dB-15 port
Controller USB/COM (Optional)
DC Adapter DC12V\5A
Circumstance Condition:
Operation Temperature -10~ 35degree
Store Temperature -20 ~ 60degree
Optional Fittings:
Customer Display Optional
Magnetic Card Reader Optional
Product Certification FCC, CE
Others:
Installing ways Hanging, Wall Mounting, Desktop VESA(100MM*100MM)
Power supply 100V-240VAC
Touch Screen MapleTouch Five-wire ResistiveTouch Screen (Hitting Life: More than 35 million times for any point)
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
