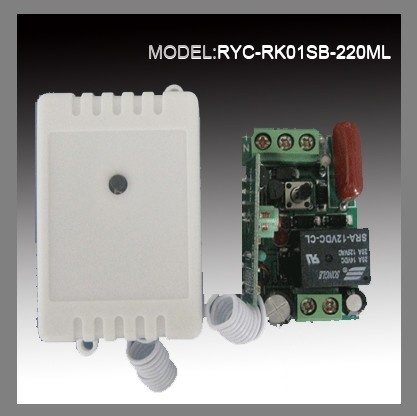

220 Ultra-Small Size Single Remote Control Switch Ryc-Rk01sb-220ml

220 volt mini single RYC-RK01SB-220ML Description

I. Features
1, miniature smart chip decodes remote control by learning to code can be paired.
2, single passive output
3, the use of wireless coding technology, no direction, anti-interference ability.
4, mainly used in electric doors, windows, switches, auto parts, security alarm and other remote areas.
Second, the main technical indicators
1, Working voltage: DC220V
2, the operating frequency: 315MHz (433MHz or another can be customized)
3, the receiver sensitivity: -95dB
4 Encoding: Learning
5, work: Jog / interlock / self-locking switch between the three available
6, output: A set of switching signals
7, the maximum load: 3A
8, size: 62 * 35 * 22 mm
Third, remote pair
1) Output mode selection and learning methods: Press the remote control to any key indicator should blink continuously learn otherwise, the module can not learn this remote control. (Jog and self-locking mode requires a single button you can remote control, remote interlock approach requires at least two buttons)
2) Output mode selection: Press the control panel button to learn hold for about two seconds, the learning light is on, do not release the button to learn, another about four seconds, the learning will light up becomes off. Do not release the button to learn about two seconds after learning a few flashes for about two seconds, the indicator will blink twice learning, another about two seconds, the indicator light will blink three times to learn. LED flashes once in the study after learning indicator flashes twice before the release button to learn, then the output mode to jog mode. After learning indicator blinks twice, three times before learning indicator blinks, release the learn button, then the output is self-locking manner. Learning blinks three times, put the learning key, the output mode is interlocked.
3) learning methods: Press the control panel button to learn hold for about two seconds, the learning indicator lights, release the button to learn, to learn pressing any key on the remote control to learn indicator light flashes three times after the change light, which means that success in learning. The control panel can memorize up to sixteen remote control, seventh will cover the first memory remote control (currently only the remote control of the road on the 13th data bit corresponding key to control); Learning a second remote control just lit control panel lights, and then press the remote control button to).
4) Clear Learning code: Press the control panel button to learn hold for about two seconds, the learning light is on, do not release the button to learn, another about four seconds, the learning will light up and change out. Code means all memory clear, if you do not change the control output mode, release the learn button. To maintain a clean code is output before the output unchanged. Otherwise, repeat 2) action.

It can be widely used in remote control switch, remote control, remote control socket, remote control LED, remote stereo, remote control electric doors, remote control parking lock, remote control garage doors, remote control retractable doors, roller shutter remote control, remote control curtains, alarm host, alarm, remote control motorcycle cars, remote control electric cars, remote control MP3, remote control lights, remote control cars, security and other remote areas of civil and industrial facilities, as well as remote control and other industrial motor reversing remote areas, with easy installation, simple to use, safe and reliable.
