Product Specifications
| Prod Model: |
RYC-RK01S-220ML |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part Number: |
Ryc-Rk01s-220ml |
| Working Voltage: |
AC220V |
| Remote Control Distance: |
30 Meters |
| Size: |
35mm * 65mm |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Transmission Distance: |
<50m |
Product Description

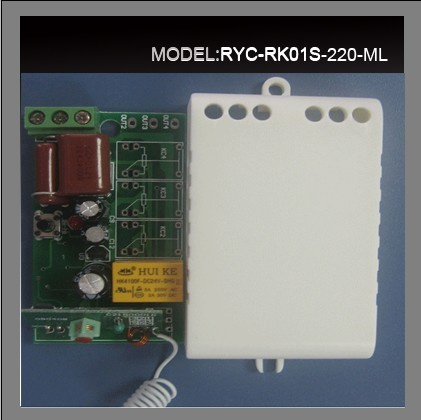

220 volts learning single wireless remote control switch RYC-RK01S-220ML Description
I. Features:
1. Two-wire design, can be controlled by remote control lights on and off two kinds of functions;
2. Mainly used: Lighting remote areas (which can be accessed incandescent, energy saving lamps, fluorescent lamps and other co-class).
3. Three outputs can be independently output, while total off function with total open.
4, smaller: 35X65MM, easily concealed and packaging, can be easily packaged or articulated in various places.
5, receiver sensitivity, remote control distance of up to 30-100 meters to.
Second, the main technical indicators:
1, the working frequency: 315MHz
2, working voltage: AC220V
3, remote control distance: 30 meters
4, type: Learning code
5, work: Self-locking and total open total clearance
6 feet
Size: 35mm * 65mm
Third, the learning method:
1, press the control panel button to learn, release, in off state, press the remote control to learn the keys 1, 2, 3
Any of a button, the lights flash once to indicate that three-way self-locking feature to automatically learn pairing is complete;
2, long press the learn button, the indicator light changes from the off, release the button to learn, before the relay does not beep, immediately press the remote
Is the 4th key, the indicator will flash once to indicate that the total open total off function study is completed.
Fourth, learning code is cleared:
Press the control panel button to learn and hold for about 20 seconds, the indicator light changes from the off, it was about four seconds or so, following the
Electric will be issued by the crisp sound, which means that learning code completely removed, the receiver board is no longer remote control. Note: In the relay
Is not beep before, do not press the remote controller code.
Our main products are wireless remote control switch, infrared remote control switch, remote control switch 220 volt, 12 volt remote control switch, 24 volt remote switch, 86 wireless remote control switch panel, remote motor reversing remote control switch, infrared remote control socket, infrared remote control switch, etc.; Remote control are: Push the cover remote control, a small four-button remote control, peppers remote control, waterproof remote control, Buick remote control, remote control cat, slim remote control with base metal remote control, remote control panel 86, 1000 m remote control, 3000 meters remote control, power remote control, etc.; Receiver module are: Normal 5 volts receiver module, 3 V low-power receiver module, decoding receiver module, learning code receiver module, scroll receiver module, superheterodyne not receiver module with decoder, superheterodyne receiver module with decoding, firing head, coding launch first class, the other according to customer requirements design and produce all kinds of wireless remote control products (including dimensions, functions, etc. ).
It can be widely used in remote control switch, remote control, remote control socket, remote control LED, remote stereo, remote control electric doors, garage door remote control, remote control retractable doors, roller shutter remote control, remote control parking lock, parking lock remote control, remote control curtains, alarm host, alarm, remote control motorcycle, electric car remote control, remote control MP3, remote control lights, remote control cars, security and other remote areas of civil and industrial facilities, as well as remote control and other industrial motor reversing remote areas, with easy installation, simple to use, safe and reliable and so on
