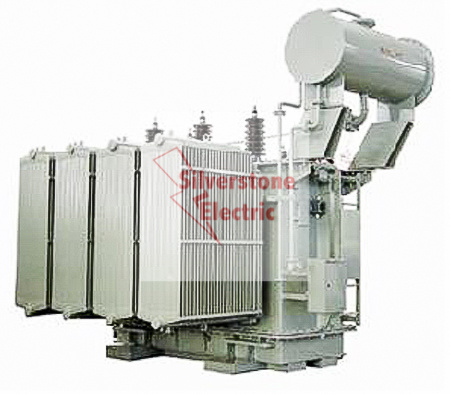

220kv combination power transformer
SFPS8-X-120000/220
MVA 120/120/60
Voltage: 220+ - 2x2.5%/121/37
YN. YnO. D11
31500-180000/230 combined type transformer technical parameter
Ratedpower
(kVA) Valtage Connction 9 loss (kW) 10 loss (kW) 11 loss (kW) No-load Loss(%) Impedence Voltage(%)
H. V(kV) L. V(kV) No-Load Loss Load Loss No-Load Loss Load Loss No-Load Loss Load Loss
31500 230-242
± 8× 1.25% 6.3 YNd11 38 135 34.2 128.3 30.4 128.3 0.7 12-14
40000 10.5 45 157 40.5 149.2 36 149.2 0.63
50000 35 54 189 48.6 179.6 43.2 179.6 0.56
63000 38.5 63 220 56.7 209 50.4 209 0.56
90000 10.5 80 288 72 273.6 64 273.6 0.49
120000 11 99 346 89.1 328.7 79.2 328.7 0.49
150000 35 116 405 104.4 384.8 92.8 384.8 0.42
180000 38.5 135 468 121.5 444.6 108 444.6 0.42
| 31500-180000/230 combined type transformer technical parameter |
Ratedpower
(kVA) | Valtage | Connction | 9 loss (kW) | 10 loss (kW) | 11 loss (kW) | No-load Loss(%) | Impedence Voltage(%) | | H.V(kV) | L.V(kV) | No-Load Loss | Load Loss | No-Load Loss | Load Loss | No-Load Loss | Load Loss | | 31500 | 230-242
±8×1.25% | 6.3 | YNd11 | 38 | 135 | 34.2 | 128.3 | 30.4 | 128.3 | 0.7 | 12-14 | | 40000 | 10.5 | 45 | 157 | 40.5 | 149.2 | 36 | 149.2 | 0.63 | | 50000 | 35 | 54 | 189 | 48.6 | 179.6 | 43.2 | 179.6 | 0.56 | | 63000 | 38.5 | 63 | 220 | 56.7 | 209 | 50.4 | 209 | 0.56 | | 90000 | 10.5 | 80 | 288 | 72 | 273.6 | 64 | 273.6 | 0.49 | | 120000 | 11 | 99 | 346 | 89.1 | 328.7 | 79.2 | 328.7 | 0.49 | | 150000 | 35 | 116 | 405 | 104.4 | 384.8 | 92.8 | 384.8 | 0.42 | | 180000 | 38.5 | 135 | 468 | 121.5 | 444.6 | 108 | 444.6 |
|
