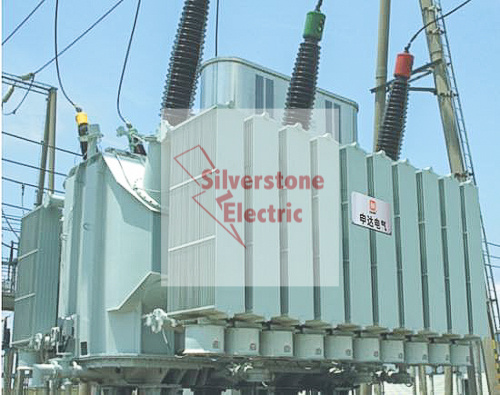

220kv (LV: 66KV) Power Transformer 3 Phase 2 Winding with Octc

Product Specifications

Prod Model:	SFZ-4200000/220kv
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Application:	Audio

Product Description

Structure characteristic of 220KV three winding power transformer

1.Iron core

1. The iron core adopts cold-rolled crystal-oriented silicon steel plate 30Z140 with high quality, low-loss, and no time effect, sheared by Geroge line and with no burr. 1.2 Iron core adopts pulling board structure, the upper and down yoke is clamped by board, to form the frame structure. The iron core adopts advanced lamination process, which effectively controls the no-load loss and electro-magnetic noise.
2 Winding
2.1 Winding adopts mature structure, which ensure the reliability of transformer operation.
2.2 The insulation power field intensity between turns shall be controlled no greater than 1.6kV/mm.
3.Body
3.1 Body adopts mature insulation structure, and strictly guarantee the main axial insulation margin.
3.2 Body mostly adopt multi-coil whole assembly, processed in constant voltage and evaporation, which made coil shrink evenly and with less rebounce, and enhance the electric strength and mechanical strength.
3.3 Adopt laminating wood board or thermal shaped insulation cardboard. Pressed tightly with pin, which ensure the winding is constantly pressed tightly.
4.leading wire
4.1 The layout of all leading wire is reasonable, which guarantees the enough electric distance and mechanical strenth.
4.2 All leading wire is cirlulized ,which guarantee the reliable wild or prize connection.
5.Oil tank
5.1 Oil tank adopts structure of flat top, bell jar type, which add the mechanical strength of oil tank and also make the appearance beautiful and graceful, site installation tend to be more convenient.
5.2 Pipeline with gas relay such as the oil tube and bushing hoist support on top of oil tank is with hoist gradient, to facilitate the gas in transformer flow to gas relay.
5.3 Vacuum oiling is adopted, there is no leakage and permanent distortion in the following test. vacuum-pumping :759mmHg load voltage test: bear 2 times the oil pressure of oil conservator oil surface for 24 hours.
5.4 The structure of transformer is convenient for disassembly and change of bushing and porcelain element.
5.5 The oil drip valve is set on the bottom of oil tank, sampling valve is set in the middle.
5.6 collective gas connecting tube is fixed on the bushing hoist support.
5.7 Transformer is of full-sealed structure, the upper and down oil tanks are required to welded fully.
6.Oil conservation tank
6.1 Adopt capsule type, finger type oil level indicator oil conservation tank.
6.2 The structure is convenient for internal cleaning, the capacity can ensure no oil overflow in 40ºC ambient temperature with full load, and oil shall be seen from oil level indicator before put into operation in -25ºC.
6.3 Oil conservation tank is equipped with oil-sealed moisture absorber.
7.Safety protection device:
7.1 Gas relay is fixed in transformer, the standard complies with ZBK41004-89Gas relay.
7.2 There is enough and reliable pressure release device, and matched with oil spray pipe, the direction of oil spraying is downward.
8.Oil temperature measuring device:
8.1 There is pipe support of mercury thermometer, which is set on the top of oil tank.
8.2 There is temperature controller, the accuracy of thermometer complies with the related standard. Quantity and technical requirement shall as per tender document.
9.Each component of transformer shall be prefabricated once in manufacture factory, marked, to ensure the smooth procedure of site assembly. Before Ex-factory, inner core shall be check, and clean the fifth in transformer.

Rated power (kVA)	High Voltage (kV)	H.V Tap range	Low Voltage (kV)	Connection Symbol	Short-Circuit Impedance (%)	No-load Loss (kW)			On-Load Loss (kW)			No-load Current (%)
						9 Type	10 Type	11 Type	9 Type	10 Type	11 Type
31500	220 242	±8×1.25% ±8×1.5%	6.3,6.6, 10.5,11, 20,34.5, 35,37, 38.5,66, 69	YNd11	12~14	38	34	30	135	128	128	0.7
40000						45	41	36	157	149	149	0.63
50000						54	49	43	189	180	180	0.56
63000						63	57	50	220	209	209	0.56
90000						80	72	64	288	274	274	0.49
120000						99	89	79	346	329	329	0.49
150000						116	104	93	405	385	385	0.42
180000						135	122	108	468	445	445	0.42
