Product Specifications
| Prod Model: |
SSZ SZ 10 Series 220kv Power Transformer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Three Phase Oil Immerised Power: |
220kv |
| Circuit Structure: |
Electronic Step-down Transformer |
| Usage: |
Electric Power Transmission |
| Output Type: |
Three Phase |
| Driving Method: |
Electric Transmission |
Product Description

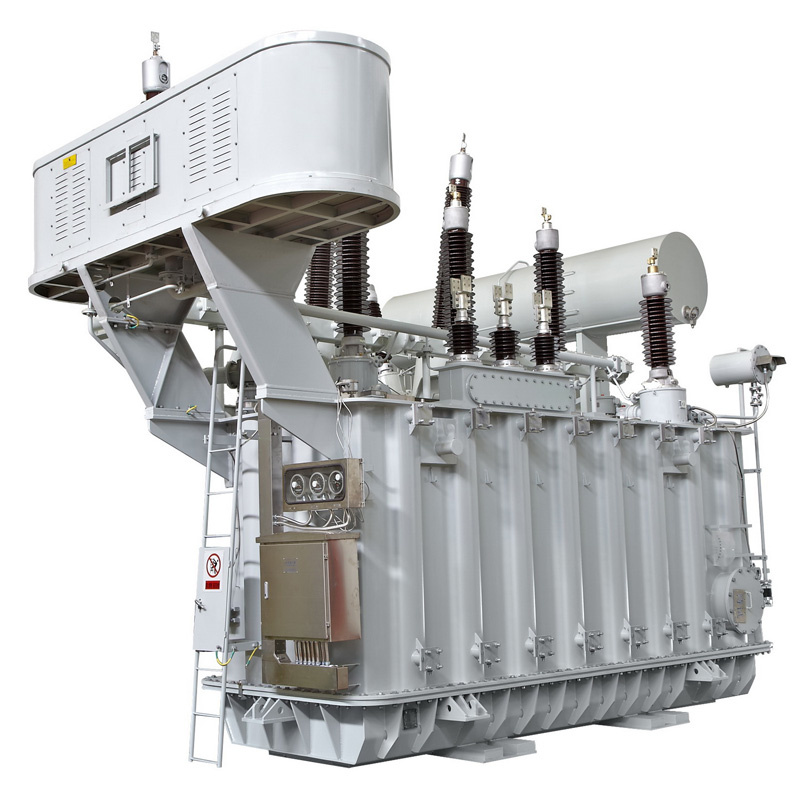

220kV Power DistributionTransformer
1)low noise; Low loss;
2)low partial discharge;
3)strong anti-short-circuit;
4)high impedance;
Features:
1. Low loss, and significantly energy-saving.
2. The core laminations are made up from high-quality cold-rolled grain-oriented silicon steel sheets
3. Zigzag directed flow of oil are provided within the windings
4. The regulating winding is a separate winding which apart from the high voltage main winding
5. The windings of one phase are assembled into an integral phase block before placing into the core.
6. Core frames in the form of a flat plate are used for clamping the core.
7. Transformer tanks are fabricated with steel plates wide enough so that there are no weld joints on each surface.
8. Diaphragm membrane is provided within the conservator, preventing direct contact of oil with air, protecting the oil from aging
9. Reliably sealed, and fine machined for sealed surface.
10. Quality assurance rules are also observed for all insulating parts, and main components.
|
Rated Power (kVA) |
Voltage Combination and tapping range (kV) |
Connection Symbol |
No-load loss(kW) |
On-load loss(kW) |
Impedance(%) |
No-load current(%) |
|
HV |
MV |
LV |
|
31500 |
220 242 |
69 121 |
6.3 |
Ynyn0d11 |
33 |
135 |
12~14 |
0.84 |
|
40000 |
6.6 |
40 |
158 |
0.77 |
|
50000 |
10.5 |
47 |
189 |
0.70 |
|
63000 |
11 |
56 |
221 |
0.70 |
|
90000 |
35 |
74 |
288 |
0.63 |
|
120000 |
10.5 |
90 |
347 |
0.63 |
|
150000 |
11 |
108 |
405 |
0.56 |
|
180000 |
11 |
123 |
459 |
0.56 |
|
240000 |
13.8 |
153 |
567 |
0.49 |
|
300000 |
15.75 |
180 |
675 |
0.49 |
|
360000 |
18 |
207 |
774 |
0.49 |
