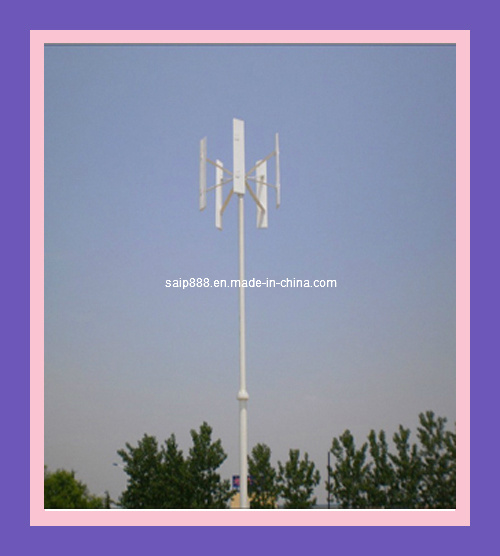

220V Pure Sine Vertical Axis Wind Turbine Generator

Name: 220V Pure Sine Vertical Axis Wind Turbine Generator
Brand: China-Manufacturer-Directory.com
SKU: 677173982
Availability: InStock
Rating: 4.7 (33 reviews)

Supplier:	Shanghai Saipwell Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SPV-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wind Turbine Type:	Permanent Magnet Synchronous Generator
Output Control System:	Charger Control, Inverter
Matched Inverter Type:	Sine Wave
Blade Quantity:	6
Blade Material:	Carbon Fiber
Rated Rotating Rate:	150(R/Min)
Yaw Mode:	Mechanical
Rated Power(W):	300W-2kw
Output Voltage(DC):	220V
Start-up Wind Speed(M/S):	2
Number Of Blade:	Multiple-Blade
Stress Way Of Blade:	Resistance
Rotating Shaft:	Vertical

Product Description

1. Fan-driven generator
2. Sine wave
3. High efficiency,
4. Easy installment
5. CE&RoHS

Detailed Description:

1. Adopt high-quality and high-strength permanent materials to ensure high energy conversion efficiency.

2. Adopt high-quality and high-strength aluminum alloy to make the unit light weight and easy installation.

3. The fiber-glass blades have the advantages of great intensity and excellent fatigue resistance.

4. Stainless steel shaft and screws to avoid rust and corrosion

5. And the surface is coated with pollution-free material. Working environmental temperature from -20C-50C.

6. Electromagnetic brake is with the function of over-speed and over-current protection.

Inside the Wind Turbine

Anemometer: Measures the wind spee and transmits to the controller

Blades: Blades to "lift" and rotate.

Brake: Stop the rotor in emergencies.

Controller: Starts up the machine at wind speeds of about 8 to 16 miles per hour (mph) and shuts off the machine at about 55 mph.

Gear box: Connect the low-speed shaft to the high-speed shaft and increase the rotational speeds

Generator: Usually an off-the-shelf induction generator that produces 60-cycle AC electricity

Tower: Towers are made from tubular steel (shown here), concrete, or steel lattice.

power	300W	500W	1KW	2KW	3KW	5KW	10KW	20KW
the diameter of wind wheel	1.8m	1.8m	2m	2. m	3.2m	3.2m	3.2m	3.2m
blades number	3	3	4	4	5	5	7	9
blades length	1m	1m	1m	1m	1.6m	1.6m	1.6m	1.6m
rated rotate speed	150(r/min)	150(r/min)	150(r/min)	150(r/min)	160(r/min)	160(r/min)	160(r/min)	150(r/min)
rated wind speed	7-8m/s	7-8m/s	7-8m/s	7-8m/s	7-8m/s	7-8 m/s	10-11m/s	12m/s
start up wind speed	2m/s	2m/s	2.5m/s	2m/s	3m/s	3m/s	3m/s	3m/s
working wind speed	3-24(m/s)	3-24(m/s)	3-24(m/s)	3-24(m/s)	3-24(m/s)	3-24(m/s)	3-24(m/s)	3-24m/s
security wind speed	40m/s	40m/s	40m/s	40(m/s)	40(m/s)	50(m/s)	50(m/s)	50(m/s)
rated power	300W	500W	1KW	2KW	3KW	5KW	11KW	21KW
the max power	350W	550W	1.5KW	2.5KW	4.5KW	6.5KW	11KW	21KW
output voltage(DC)	220V	220V	220V	220V	220V	220V	220/110V	380V
the height of tower	8m	10m	10m	10m	10m	10m	10m	14m
the top part weight	49kg	63KD	73kg	78kg	98kg	102kg
battery reference	12V100ah, 2pc	12V100ah, 2pcs	12V100ah, 4pcs	12v150ah 4pcs

Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
