Product Specifications
| Prod Model: |
C-22DT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Wire |
| Type: |
LT Water Tank Type Metal Drawing Machine |
Product Description
1. Machine type: 22DT
2. Inlet dia. (mm): 0.8-1.2
3. Outlet dia(mm): 0.10-0.32
4. Drawing line speed(mpm/max): 2000
5. Main motor(kw): 11kw
6. Annealing power(kVA): 16kVA
7. Take-up motor(kw): 3.7kw
8. Annealer method: DC. Three-section annealing
9. Suitable dia. Of spool(mm): 300
10. Capacity for wire receiving(kg): 50kg
11. Power source: 380V
12. Brake: Magnetic brake
13. Machine dimension(mm): 2100L*1600W*1700H
14. Machine weight(kg): 3000kg
Features:
Safe in operation, low in noise and high in efficiency Products from our machines have different configurations, which makes us in the leading position of concerning the product characteristics for users.
|

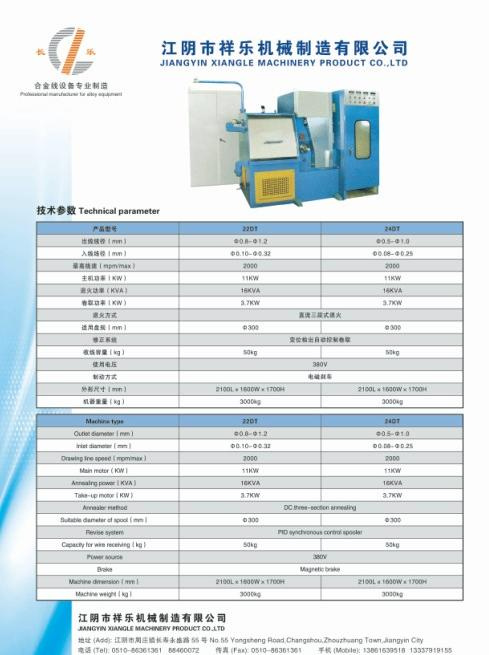

22DT Intermediate wire drawing machine |
|
Inverter Control |
Double inverter control |
|
Inlet Dia |
0.8-1.2mm |
|
Outlet Dia |
0.10-0.32mm |
|
Max line speed(m/min) |
2000m/min |
|
Body structure |
ironed cast |
|
Drawing Capstan |
tungsten plasma capstan |
|
Main motor power(k w) |
11kw |
|
Take-up motor |
3.7kw |
|
Qnline Continuous Annealer |
|
Machine structure |
horizontal |
|
Machine dimension(mm) |
2100L*1600W*1700H |
|
Machine weight(kg) |
3000 |
Jiangyin Xiangle Machinery Manufacturing Co., Ltd. Has established itself as one of China's leading names in the field of Wire Drawing Machines, Annealing Furnace, and other related accessories with our promise of quality products that stay ahead of time.
Our main products are series stainless steel wire drawing machines, Spring wire drawing machine, annealing machine lines, take-up machines, copper wire drawing machine and other related equipments. We believe that perfect high-quality products only come from zero defect production process. We have adopted the advanced production equipment and technology, scientific & standardized management system and strict testing standards to ensure international advanced level on quality, structure, performance and appearance.
Our Management Concept
Quality is the life: To perfect quality is the continual goal of our company staffs all the time
Service is the key: To provide satisfying service is our responsibility.
Innovation is the power: Holding the concept of technology and innovation, we will try our best to develop new product.
Integrity is the principle: Seek truth from fact, manage company with good faith.
We make each component with all our mind and energy; Meet multiple requirements all from clients' interests. We hope to create mutual benefit with our clients!
Your choice, we care! . Please feel free to contact us for further information.
