Product Specifications
| Prod Model: |
SATA_140630006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |

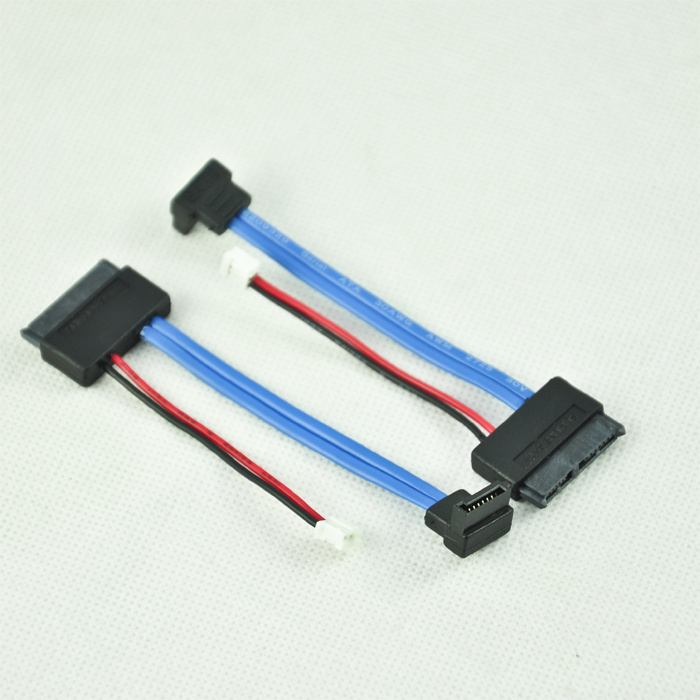

7+15p SATA to SATA 7p and 4pin Housing Cable |
| Color: |
Optional |
| Length: |
500mm,Custom |
| Conductor: |
Tinned Copper |
| Pin Plated: |
24k Gold |
| Type: |
Twisted Pair |
| Jacket: |
PVC |
| Awm: |
UL1061 |
| Cover: |
Assembly |
| OEM/ODM: |
Welcome |
| Material: |
Copper |
| Interface Type: |
SATA |
| Application: |
Network |
| Pin: |
22pin,7pin |
Product Description
Specifications
Name: Sata cable 7+15p male to male date power adapter
Extension adapter, used for transmitting data, power on hd, rohs compliant, lowest price, high quality! Agree alipay. Lead time: 4~7day.
Detailed description
7+15p sata male to male date power extension adapter
1. Slimline sata cable
2. Sata 7+15 p m to 7+15p male
3. Housing: Vc, lcp
4. Terminal: Hoshpor bronze or gold plated
5. Singnal wire: L2725 26/28 awg, tinned copper
6. Power cable: L1007 18/20 awg, tinned copper
Electrical
1. Hi-pot test: Dc300v
2. Insulation resistance: 0m ohms(min)
3. Contactor resistance: 1 ohms(max)
4.100% open short and miss wire test
Mechanic
1. Insertion force: 45n max
2. Withdrawal force: 15n min
3. Operating temperature: -25oc to +85 oc
4. Transfer rate: Supports 3.0gbps
Our company is mainly supplier of sata cables and sata connectors. Excellent quality and competitive price make us win customer consistent high praise. The most of advantage is we could design and change mould by our engineers to meet your request. All of our mould could be reached best produce that most of other supplier couldn't reach it, for example the production of our sata connector could reach 800k per day. Can u imagine how fast it is. So choice us is your best decision.
Mainly deatures:
1)all kinds of our products are rohs compliant,
2)the connectors could be amp, molex, jst, ket or equivalent, wire can use ul. Ccc, ce. Vde, csa, as/nz, pse proved
3)products can be used for computer, lcd screen, home appliance equipment, game machine, alarm systerm and so on
4) odm/oem order are welcomed
5)connector mould, injection mould, terminal mould, strain relief mould used in your projects can be designed or copied, abundance machinery equipment to save cost, makes our price very competitive
6)strict quality control, passed iso: 9001 quality control system, all the products are 100% test before delivery
7) great freight discount to ship emergancy goods by ups or aircargo
|
Mainly Features: |
|
1)All kinds of our products are RoHS compliant. |
|
2)The connectors could be AMP, Molex, JST, ket or equivalent, Wire can use UL, CE. VDE, CSA, AS/NZ, PSE proved. |
|
3)Products can be used for Computer, LCD screen, Home appliance Equipment, game machine, alarm systerm and so on. |
|
4) ODM/OEM order are welcomed. |
|
5)Connector mould, Injection mould, terminal mould, strain relief mould used in your projects can be designed or copied, abundance machinery equipment to save cost, makes our price very competitive. |
|
6)Strict quality control, Passed ISO: 9001 Quality control system, All the products are 100% test before delivery. |
|
7) Great freight discount to ship emergancy goods by UPS or aircargo. |
