Xuchang Chengrui Insulation Material Co., Ltd. >> 2310 Tranformer Motor Insulation Varnished Cloth

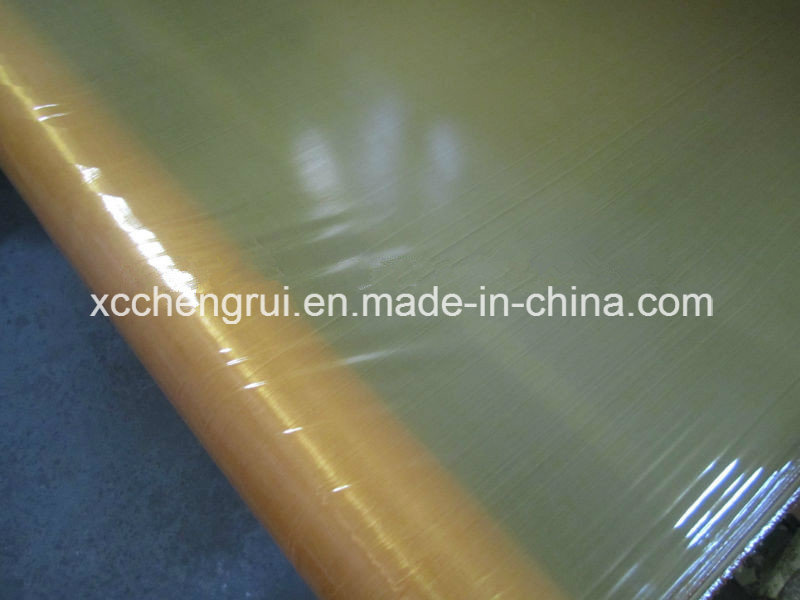

2310 Tranformer Motor Insulation Varnished Cloth

Name: 2310 Tranformer Motor Insulation Varnished Cloth
Brand: China-Manufacturer-Directory.com
SKU: 702996312
Availability: InStock
Rating: 5 (115 reviews)

Supplier:	Xuchang Chengrui Insulation Material Co., Ltd.
Price:	US $ 8.8kg
Min Order:	200kg
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	2310
Markets:	North America,South America,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.08mm 0.10mm 0.12mm 0.15mm
Width:	20mm 25mm 1000mm 1100mm
Heat-Resistance:	a Class 105
Storage Life:	1 Year
Package:	Carton and Pallet
Application:	Insulating Varnish
Type:	Solid
Chemistry:	Inorganic Insulation
Thermal Rating:	A 105
Maximum Voltage:	<10KV
Material:	Fiberglass Cloth
Brand:	Chr

Product Description

2310 oil varnished insulating synthetic cloth for motor

2310 oil varnished insulating synthetic cloth for motor is made from synthetic fabric, and then, in the process of dipping in the oily paint and drying.

Characteristics for 2310 oil varnished insulating synthetic cloth for motor
It is Class A insulating material.
It has good electrical and mechanical performances, it will be used at 105 centigrade or less for a long period

Applications for 2310 oil varnished insulating synthetic cloth for motor
It can be used for the binding and insulating materials for the electric motor, appliance, etc.

Specification for 2310 oil varnished insulating synthetic cloth for motor

Nominal thickness(mm):0.11,0.13,0.15,0.17,0.20mm
Width(mm): 20mm,25mm,1000mm,1100mm

Model No.	Product Name	Components		Temp. Class	Features and Applications
Model No.	Product Name	Basic Material	Impregnated Varnished	Temp. Class	Features and Applications
2210/2212	Oil varnished silk	Silk	Oil varnish	A (105 ºC)	-Excellent softness and electric property. -As liner and coil insulation for motors and electric appliances.
2310/2312	Oil varnished synthetic cloth	Synthetic fabric	Oil varnish	A (105 ºC)
2432	Alkyd varnished glass cloth	E-glass fiber cloth	Alkyd resin	B (130 ºC)	-Excellent dielectric, mechanical property and heat resistance, good oil, fungus and humidity-heat resistance. -As coil insulation for oil-immersed transformers and oil circuit breakers.
2440	Polyester varnished glass cloth		Polyester varnish	F (155 ºC)	-Excellent dielectric, mechanical property and good oil resistance, -As liner and wrapping insulation for common motors and electric appliances.
2450	Silicone varnished glass cloth		Organic silicone varnish	H (180 ºC)	-Excellent heat resistance, elasticity,good fungus, cold and oil resistance. -As coil insulation for H-Grade motors and electric appliances.

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
