Product Specifications
| Prod Model: |
UTP CAT6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Bare Solid Copper |
| Insulation: |
HDPE |
| Support: |
Seperator |
| Rip Cord: |
Optional |
| Jacket: |
PVC or Lszh |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PE |
| Type: |
Cat 6 |
| Certification: |
SGS |
| Model: |
UTP CAT6 |
| Brand: |
Sol |
Product Description

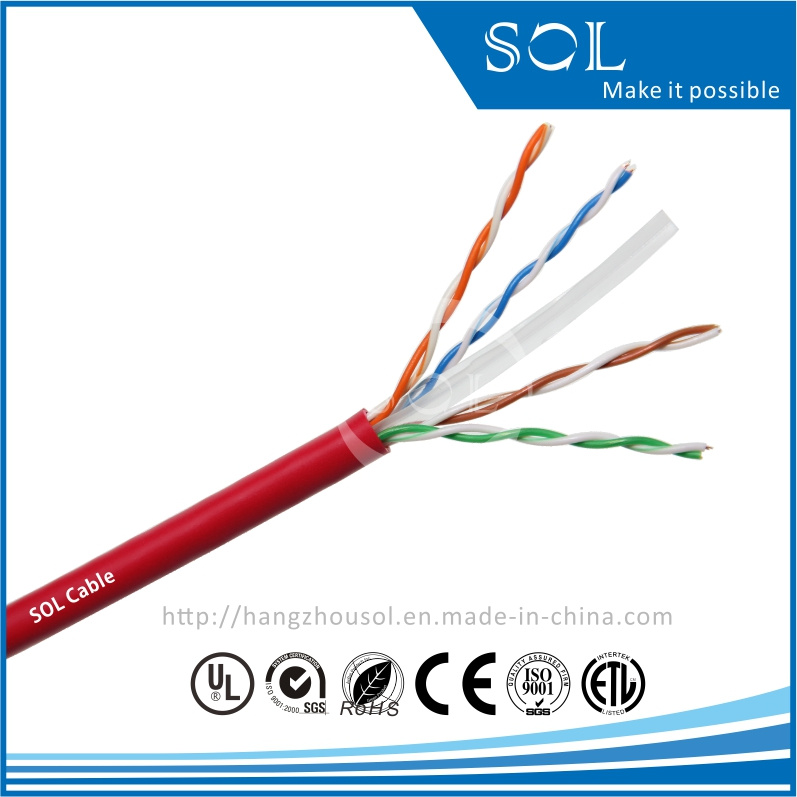

Lan Cable Series:
UTP Cat6 (Solid)
Unshielded Twisted 4Pairs
Application:
used as work-station oution to the FD/IDF and other horizontal cabling,
supporting:
TP-PMD Audio, Integrated service digital network(ISDN),
ATM, 100Base-TX, 100VG-AnyLAN,
1000Base-T(Gigabit Ethernet), Fast Ethernet ETC.
| UTP CAT6 |
| Structure | 1 | Conductor | Bare solid copper |
| 2 | Insulation | Colourcoded PE |
| 3 | Seperator | HDPE |
| 4 | Polyester | Optional |
| 5 | Rip cord | Optional |
| 6 | Jacket | Lead free PVC or LSZH |
| Description | Flammability grade | CMX, CM, CMG, CMR |
| Rated temperature | 60°C , 75°C, 90°C |
| Reference Standard | UL444, UL1581 |
Note: Other specification can be made upon customer requirements.
| Item No. | Construction | Nominal Conductor Dimension mm | Nomial Insulation Diameter mm | No.of Pairs | Nomial Cable OD.mm | Type of Jacket | Remark |
| UTP6-550 | UTP | 0.55 | 0.98 | 4 | 6.1 | PVC/PE/LSZH | 250MHz |
| UTP6-656 | UTP | 0.656 | 1.02 | 4 | 6.3 | PVC/PE/LSZH | 250MHz |
| UTP6-570 | UTP | 0.57 | 1.03 | 4 | 6.4 | PVC/LSZH | 550MHz |
Packing:
100m/200m per Coil/roll,
200m/250m per Reel,
500ft/1000ft per Rolling Reel,
305m/500m per wooden Drum.
Delivery Day: 20days after receiving the T/T payment.
Port: Shanghai Port, Ningbo Port.
