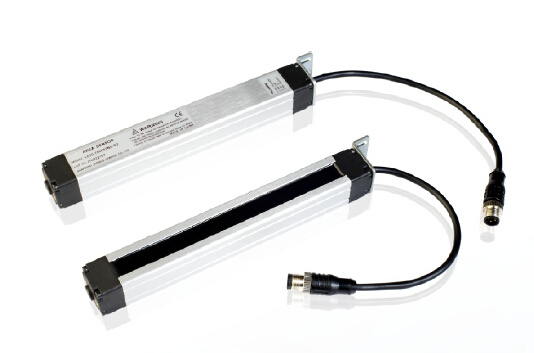

Area sensors— — LE20 Series.
LE20 Series Feature:
---------------------------------------------------
1. Long distance detection, the longest is 5m.
2. Serialized, various of type, detection height from 140mm to 940mm.
3. High-brightness LED indicator, work status show more easier.
4. High protection degree, apply in widely environment(IP65).
LE20 Series Application:
---------------------------------------------------
Be applied in the industrial, assembly line control and civilian equipment field, play the role of area protection, security protection, size detection, height detection.
Area sensors:
---------------------------------------------------
The area sensor is composed by optical emitter and receiver, all of emitters are in a housing (High quality aluminum alloy as the basic framework, the colors of housing could be customized), all of receivers are in the other housing.
The object will block a part of light what from the emitters to the receivers when it was to be placed between emitters and receivers.
Area sensor can identify the area where to be blocked by synchronous scanning. At first, a emitter tub send a light plus, and the corresponding receiver look for this plus in the same time.
It's finished a scan for a passage when the receiver found this plus, than to the next passage till it finished all of scan.
Detection Area:
---------------------------------------------------
The means of detection area is the area covered by optical network what composed by receiver and emitter.
The tips of mounting:
---------------------------------------------------
Emitter and receiver must to be fixed on the same plane and the horizontal alignment so that receiver could received all of the light what from correspond emitter.
Note1:
Don't using this product in the personal security protection.
Note2:
Customize for cable length, housing material and shape.
Note3:
Lanbao is top sensor manufacturer in China. Her strong items are: Inductive, capacitive, photoelectric sensors, light curtain and accessories, with UL, CE, RoHS, ISO: 9001: 2008 certification.
If you are considering decreasing your cost for purchasing high quality sensors, then Lanbao is absolutely your best choice.
Any query, just feel free to let us know.
|
Lanbao Measuring Light Curtains__LE20 Series |
|
Emitter |
LE20-T2405T-F2 |
|
Receiver |
LE20-T2405TNC-F2 (NPN NC) |
|
Axes quantity |
24 Axes |
|
Detecting height |
460mm |
|
Detecting width |
0.1-5m |
|
Beam distance |
20mm |
|
Sening oblect |
>φ35mm opaque object |
|
Supply voltage |
12-24V DC +/-10% |
|
Current consumption |
<120mA |
|
Response time |
<36ms |
|
Light |
Infrared LED (modulate) |
|
Reverse polarity |
Yes |
|
Short circuit protection |
Yes |
|
Overload protection |
Yes |
|
Ambient temperature |
-10~+55C |
|
Protection degree |
IP65 |
|
Housing material |
Housing: Aluminium alloy; Light cover: PC; End cover: Strengthen nylon |
|
Connection |
0.2m cable + M12 connector |
|
Accessory |
5m cable connection cable(E12-N4F5) (Customized available) |
|
