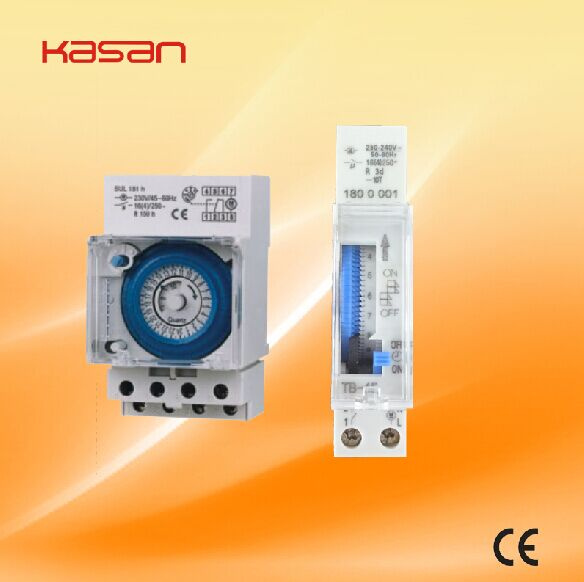

24 Hour Mechanical Timer 15mins 110-220VAC
Product Specifications
| Prod Model: |
timer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Current: |
10A |
| Timer: |
24hour |
| Type: |
Timer |
| Usage: |
Universal Counter |
| Function: |
Subtract Counter |
Product Description
Technical Data
Model No.: TB-45
Movement Type: AC Type
Rated Voltage: 110-250V
Frequency: 45~60HZ
Movement: Quartz
Back up Power: 100Hours
Resistive load: 250V AC 16A
Full Timing Range: 24 Hours
Lamp Load: 2A
Inductive Load: 10A (cos =0.7 or more)
Motor Load: 4A
Minimum Setting Unit: 15 Minutes
Minimum Setting Interval: 15 Minutes
No. of ON-OFF Operations: 96 Times
1. For first time, please charge battery first for 10 minutes before use.
2. To set the correct time, turn the dial in direction of arrow ans set the present time.
3. Please observe the rated voltage and voltage tolerance of the time switch for adequate use.
4. Do not use the timer switch where: 4.1 There is much dust
4.2 There is much moisture
4.3 Outdoors or where it will be exposed to rain or water
4.4 There is much vibration
5.When the time switch is used for loads exceeding the rated capacity, it is imperative that the time switch be used in combination with one or more magnetic contactors according to each load.
6. Mounting methods: By 35mm Din Rail
| Type | SUL181h | SUL180a |
| Contact capacity | AC220V 16A | AC220V 16A |
| Timing range | 24h | 24h |
| Contact resistance | ≤50mΩ | ≤50mΩ |
| Insulation resistance | ≥100mΩ | ≥100mΩ |
| Coil voltage | 110,230V AC | 110,230V AC |
| 105 times | 105 times |
| 107 times | 107 times |
| Operation temperature | -40°C~+55°C | -10°C~+50°C |
| Storage battery (Working reserve) | Time 150h | Time 70h |
| Min setting unit | 30 Minutes | 15 Minutes |
| Set up times | 30m/per time 48 times | 15m/per time 96 times |
| Remarks | Without Battery Type:SUL161h | Without Battery Type:SUL160a |
