High Brightness LCD Panel Auto Detect Color Format 3D Video Decoder
Motion-adaptive Interlace to Progressive 10 Bit Signal Process Color Temperature settings
PIP/PBP for 2 HD/SD-SDI siginals display Pixel Measurement Vectorscope
YCbCr Waveform Histogram/RGB Histogram Picture Flip
Focus Assist False color/ Zebra UMD
Image Size Settings Mark Settings Support 3G/HD-SDI Input
SDI Embedded Audio meter Display (VU+PPM) SWAP Function x9 Zoom in
Fast Mode H/V Delay Tally Indicator
Compatible SDI Formats
ITU-R BT. 656 576I(50)
SMPTE-125M 480I(59.94)
SMPTE-274M 1080I(60/59.94/50)1080P(30/29.97/24/25/23.98)
SMPTE-260M 1035I(60/59.94)
SMPTE-296M 720P(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-425M 1080P(60/59.94/50)
Specifications and Features

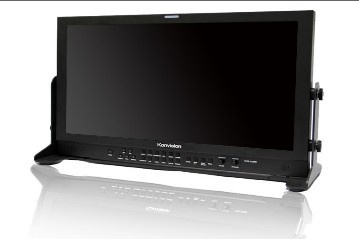

Model Number KVM-2450W
Display Size 24"
Resolution 1920× 1200 Full HD
Aspect Ratio 1610
Wide Viewing Angle H: 178 degree / V: 178 degree
Pixel Pitch 0.270× 0.270(mm)
Color Depth 16.7M
Response time 5ms
Brightness 450CD/m2
Contrast Ratio 10001
Video input/output 1× BNC
Y/C input/output 2× BNC
Component (YPbPr/YCbCr/RGB) input/output 3× BNC(Support 1080p)
HDMI/DVI/VGA HDMI/DVI/VGA Input
2x 3G/HD/SD-SDI Inputs and 2x Loopthrough Output 3G/HD/SD-SDI Auto-Detected
