24 Ton Hydraulic Crawler Excavator (HW240-8)
Product Specifications
| Prod Model: |
HW240-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Crawler Excavator |
| Size: |
Medium-Sized |
| Condition: |
New |
| Certification: |
ISO9001: 2000 |
Product Description
24 ton Hydraulic Crawler Excavator (HW240-8)
SINOTRUCK Qingdao Heavy Industry Co., Ltd. Our company specializes on truck, special tractor, and crawler hydraulic excavator business. We have started manufacture excavator since 2009 from China domestic markets. Nowadays, Chinese machines become more and more popular among international markets, so we spread our business to the world markets since 2012. At present, our SINOTRUCK has finished the first excavator project phase, which includes 35,000 square meters combined workshop with the annual output of 5000 sets of middle and large excavator production line construction. The second phase is planed to complete in 2013, the capacity will realize double at that time.We could supply hydraulic crawler excavator for 13ton, 21ton, 24ton, 33ton, 36ton 45ton etc. with best quality and low prices. Our excavator hydraulic system comes from Japan KAWASAKI. Our engine comes from American Cummins. All of our spare parts come from the high grade and famous supplier We are now having 13ton hydraulic excavator, 21ton hydraulic excavator, 24ton hydraulic excavator, 33ton hydraulic excavator, 36ton hydraulic excavator, 45ton hydraulic excavator etc.If you have any requirements, pls feel free to let me know. Hope to work with you!
|
No. |
Model |
Operation Weight(Kg) |
Bucket Capacity(m³ ) |
Max. Excavating Force (KN) |
|
|
1 |
HW240-8 |
23800 |
1.2 |
158.5 |
|
|

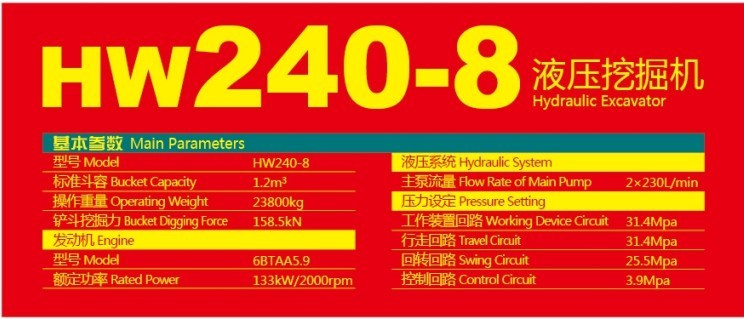

MAIN SPECIFICATIONS |
|
Engine |
Brand: Cummins |
Rotating Speed |
12 rmp |
|
Model: 6BTAA5.9 |
Gradeability |
70% |
|
Output rate: 133KW/2000rpm |
Motor, Reducer |
Japan KAWASAKI |
|
Main Pump Flow Rate |
2× 230 L/min |
Unit Pressure of Ground |
51.5 kPa |
|
Max Digging Height |
9356 mm |
|
Max Dumping Height |
6689 mm |
Main Valve |
from Japan |
|
Max Excavating Depth |
6258 mm |
Traveling Motor |
Japan NABTESCO |
|
Max Vertical Excavating Depth |
5346 mm |
H Ground Contact Length of Track |
3445 mm |
|
6024 mm (2.5m radius) |
|
Max Digging Radius |
9682 mm |
|
Min Radius of Gyration |
3769 mm |
Hydraulic Cylinder |
Made in China |
|

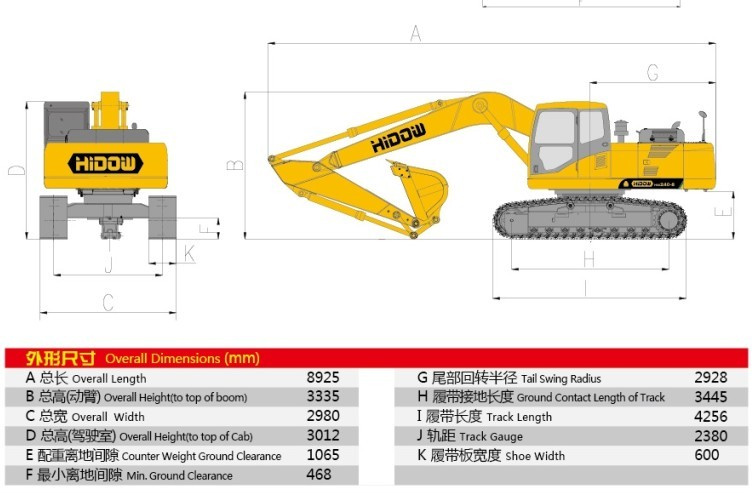

Overall Dimension(mm) |
8925× 2980× 3335 |
SINOTRUK QINGDAO HEAVY INDUSTRY Co., Ltd (original named as Special Truck Company, CNHTC) (here reference SINOTRUK Qingdao) is located in Qingdao, a beautiful seaside city. It is one of the wholly owned subsidiaries of SINOTRUK and the famous enterprise in special truck industry in China.
In 2011, our company expands the production scope, and increases the engineering machinery products, then the company rename "Special Truck Company, CNHTC" to "SINOTRUK Qingdao Heavy Industry Co., Ltd", and move to new factory located in Qingdao High-tech Industrial Development Zone. With over 2, 000 staffs working there, SINOTRUK Qingdao has the capacity of manufacturing 20, 000 special trucks and over 60, 000 sets of hydraulic components per year. The company owns a fixed capital of USD400 million and occupying 899, 100 square meters. The main products cover Excavator, Dump Truck, Concrete Mixer Truck, Garbage Truck, Aircraft Tractor, Military Vehicle, Semi-trailer, Water Tank Truck, Fuel Tank Truck, Fire Fighting Truck, Mobile Workshop, hydraulic component, etc.
SINOTRUK Qingdao is one of the 52 national vehicle export base enterprises and 53% of the products are exported to more than 50 countries and regions, such as Southeast Asia, Africa, South America, Middle Asia and Russia, etc. SINOTRUK Qingdao can provide best service for the overseas users in plenty of spare parts supply, after-sales services, abundant technical strength, regular customers visit and professional training.
It is your choice to choose us, to supply directly from manufacturer, quality trucks, best service, genuine spare parts.
