Product Description
Summarization

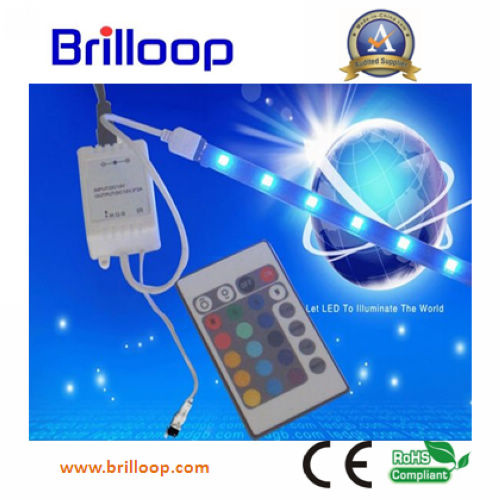

24-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.
Technical Parameters
1. Working temperature: -20-60 ° C
2. Supply voltage: DC12V, 24V
(for orders specify voltage)
3. Output: 3 channels
4. Connecting mode: Common anode
5. External dimension: L50*W35*H22 mm
6. Packing size: L105*W65*H40 mm
7. Net weight: 50 g
8. Gross weight: 70 g
9. Static power consumption: <1 W
10. Output current: <2 A (each channel)
11. Output power: 12V<72W, 24V<144W
Direction for use
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power
2. Operation, you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote control and receiving head.
|
Brightness rise(a total of eight grading) |
Brightness drop (a total of eight grading) |
Close load output |
Open load output |
|
Static red |
Static green |
Static |
Static white |
|
Static orange |
Static light green |
Static |
Multicolor jumpy changing |
|
Static deep yellow |
Static cyan |
Static brown |
the overall gradually
changing |
|
Static yellow |
Static light blue |
Static pink |
Multicolor jumpy changing |
|
Static light yellow |
Static pale blue |
Static purple |
Red, green, blue colour transition |
