Shenzhen Chuangyin Technology Co., Ltd. >> 24kv Indoor Epoxy Resin CT/ Current Transformer (15~1500/5, 0.2S~10P)

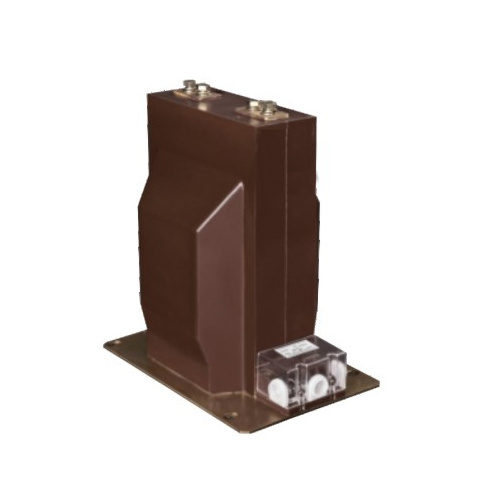

24kv Indoor Epoxy Resin CT/ Current Transformer (15~1500/5, 0.2S~10P)

Name: 24kv Indoor Epoxy Resin CT/ Current Transformer (15~1500/5, 0.2S~10P)
Brand: china-manufacturer-directory.com
SKU: 757577415
Availability: InStock
Rating: 4.6 (37 reviews)

Supplier:	Shenzhen Chuangyin Technology Co., Ltd.
Price:	US $ 350-360/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LZZBJ10-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	CT
Current Transformer:	Current Transformers
24kv:	Epoxy Resin
15~1500/5:	0.2s~10p
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

We're manufacturer.

LZZBJ10-24 current transformers (CT) epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body

The product has the feature of lightweight, omni-directional installation, withstanding nastiness and dampness, it is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 24kV, IEC61869-1&2

Qualification: CE-,TüV- and RoHS-marked,ISO 9001:2008-certified,KEMA

Commpany Information:
With Green and Smart concept,we are offerring all series of split core Current Transfermer/Sensor,Rogowski coil to over 30 countries in the world.

Outline Drawing:

Specification:
Two Secondary Single Ratio:

Rated transformation ratio (A)	Accuary classes combination	Rated output(VA)			ALF	FS	Short-time thermal current ith (kA/s)	Rated dynamic current Idyn (kA)
		Measuring		Protective
		0.2(s)	0.5	10P
15/5......200/5	0.2(s)/0.2(s) 0.2(s)/0.5 0.5/0.5 0.2(s)/10P 0.5/10P	10	15	10 15	10	5 (10)	100I1n	250I1n
300/5							25	63
400/5							31.5	80
500/5							40	100
600/5							40	100
800/5							63	130
1000/5							63	130
1500/5							80	160

Note:

Please browse our website and download product catalogue for detailed information.

SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD.
( CY GROUP )
Certification: KEMA, ISO9001, UL, SGS, CE.
( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )

Packing List:
Current transformer / bushing type current transformer / CT
VT/PT/Potential Transformer/Tension Transformer/Pressure Transformer/Voltage Transformer:
CHUANGYIN LMZ9-7.2G 7.2kV Outdoor, Single Phase Epoxy Resin Voltage Transformer
Unit Price: USD180.00 (FOB SHENZHEN).
Net Weight: 6kg/pcs.
Gross Weight: 37kg/plywood (Total 2pcs).
Volume: 265* 185 * 245 = 0.012CBM.
Delivery Time: 3 Days.
Catalog Please Check The Attachment: LMZ9-7.2G, Please Contact Ms.Becky

Contact us:

Becky Wang (Manufacturer of LV&MV CT PT Suppliers)
Shenzhen Chuangyin Technology Co.,Ltd. (Website:www.chuangy.com)
Add:1st Floor,B Block,Jiada R&D Building,5# Song Pingshan Road,Shenzen High-tech Industrial Park,Nanshan,Shenzhen,China
Tel: + 86-755-86000302
Cell Phone: + 86-15889623648
website: www.chuangy.com

Company Information:

Shenzhen Chuangyin Technology Co., Ltd has three manufacturing bases ,they are Jiangxi Chuangyin Co.,Ltd, Zhuhai Chuangyin Co.,Ltd and Joint-Venture Adex-Chuangyin Electric Co.,Ltd(Bangladesh); with 40,000 square meters of modern standard workshop and a number of first-class production line and test
equipments, by many years' experience for three dedicated engineering teams, the annual output of medium &low current transformer and
voltage transformer is more than 36000 sets and CT, relay is more than 25 million pcs.
Since established in 2002,Chuanyin has been operating international management system and viewing quality as our life, the pass rate of products is always 99.9999%.we also have established a strict quality control system from material to whole process control. we passed ISO9001-2008 quality system certification by KEMA,Type Test Report,CE, UL, CQC, UC2 UC3 etc.
Chuangyin's product is well known with high accuracy, good stability, high efficiency, reasonable price and on-time delivery. With strong R&D strength and first-class product, good reputation has been gotten from domestic and oversea market. Customers are throughout more than 30 countries in the word. Chuangyin has become the one of largest and professional manufacturer of CT,PT and relay in China.

Our Services

Chuangyin promises to her customers: high quality product, good service, fast delivery and reasonable price.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds split core current transformers, Rogowski coils, energy meter components (CT and relay), medium voltage current transformers, potential transformers, low voltage current transformers and switchgear components.

Passed CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
