Product Specifications
| Prod Model: |
JDZX10-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| 24kv: |
Phase-Earth |
| Single Pole PT: |
Voltage Transformer |
| Vt: |
Instrument Transformer |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description

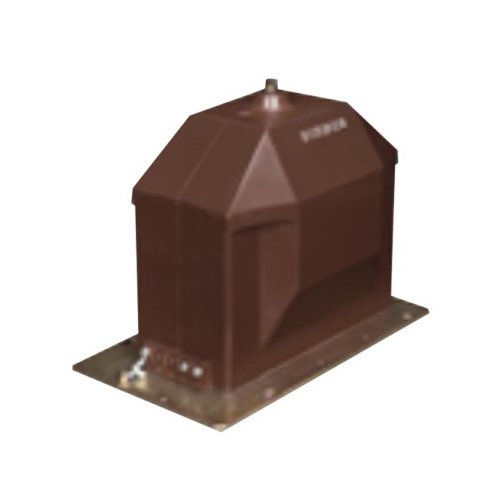

JDZX10-24 voltage transformer/PT/VT, used indoor single phase or three phase
AC circuit for measuring electric capacity, voltage and protective relaying with the frequency of 50Hz or 60Hz and rated voltage 11kV
Product adopts epoxy resin casing full-closed structure with low magnetism density and large creepage distance of external insulation
Product has high reliability and maintenance free, IEC68869-1&3
Commpany Information:
Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D,
production and sales of kinds split core current transformers, Rogowski coils,
energy meter components (CT and relay), medium voltage current transformers,
potential transformers, low voltage current transformers and switchgear components.
Work with us, a CT and relay assembly solutions provider that GE and Itron trust
Qualification:CE-,TüV- and RoHS-marked,ISO 9001:2008-certified,KEMA
Specification
| Type | Rated
Primary Voltage
(kV) | Rated
Secondary
Voltage
(kV) | Acuracy
Classes
Combination | Rated
Output(VA)
COS0=0.8 | Thermal
Limiting
Output
(VA) | Rated
Insulation
Level
(kV) |
| JDZ10-12 | 11/√3 | 0.11/√3 | 0.2 | 25 | 400 | 12/28/75 |
| 0.5 | 50 |
| 1 | 100 |
| 0.11/√3/0.11/3 | 0.2/6P | 15/50 | 300 |
| 0.5/6P | 30/50 |
Note:Upon request we are glad to offer transformers according to other technical specs.
