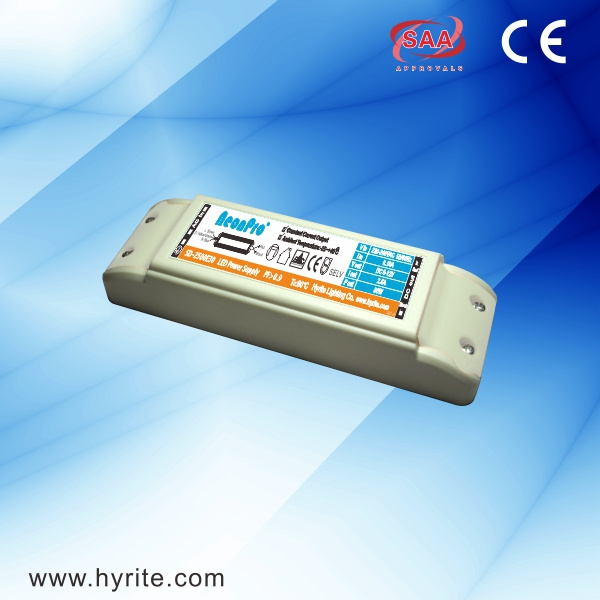

Product Specifications
| Prod Model: |
SD-1250E30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
30W |
| Output: |
Constant Current or Constant Voltage |
| Input Voltage: |
170-250V |
| IP Rating: |
IP20 Non Waterproof |
| Warranty: |
2 Years Warranty |
| Use: |
for Spot Light, Down Light, Panel Light |
| Size: |
204*45*37mm |
| Case: |
Plastic |
| Output-Type: |
24VDC |
| Certificates/Standards: |
CE |
| Usage: |
Construction, Building |
| Circuit Structure: |
PWM Controlled |
| Output Type: |
Terminal |
| Driving Method: |
Constant Voltage |
| Certification: |
CE, EMC, SAA |
| Power Supply Voltage: |
AC170-260V |
| Brand: |
Neonpro |
Product Description
12V 48W Constant Voltage Slimline Indoor LED Power SupplyFeature for Slimline LED Power Supply:
1. Super slim body, special design for application with narrow space.
2. Suitable for slim LED light box, display cabinet lighting.
3. Constant voltage output, 12V or 24V.
4. For indoor use only, IP20.Application for Slimline LED Power Supply:
*Available for using in narrow space,
such as slim LED light box/display cabinet lighting; *Used for LED Module, Strip, Spot Light, Down Light, Panel Light, Perforating Lamp, Pixel Lamp, Flex Ribbon, Light Bar, Light Box, Wall Washer, etc…
Brief Introduction for Slimline LED Power Supply:
| Model no. | TL-12E48 |
|---|
| Model series | TL |
|---|
| Input voltage | 220 VAC± 5% 50/60 Hz |
|---|
| Power | 48W |
|---|
| Output type | Constant voltage |
|---|
| Dimming | Not dimmable |
|---|
| Power Factor | Low PF~0.6 |
|---|
| Efficiency | 83% |
|---|
| Output voltage | 12V ± 5% |
|---|
| Output current | 4A |
|---|
| Overload protection | 105%-120% hiccup mode, auto-recovery |
|---|
| Over voltage protection | 120% rated output voltage |
|---|
| Withstand voltage | I/P-FG:1.5KV AC I/P-O/P:3.0KV AC |
|---|
| Operating temperature | -25~40ºC |
|---|
| Installation | Indoor |
|---|
| IP rating | IP 20 |
|---|
| Cooling | Free air convection |
|---|
| Certificates/standards | CE |
|---|
| Dimensions(L*W*H) | 285*18*18 mm |
|---|
| Weight(kg) | 0.11 |
|---|
| Packing information | 100 Pcs/ Carton, G.W 8KG |
|---|
Note for Slimline LED Power Supply:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 ctn (Samples are available)
Shipping for Slimline LED Power Supply:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air
More Pictures for Slimline LED Power Supply:
![]()
![]()
![]()
![]()
![]()
![]()
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
