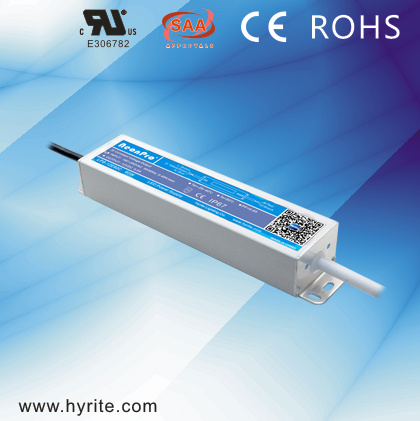

24V 60W IP67 Efficiency86% Single-Output AC to DC LED Power Supply

Name: 24V 60W IP67 Efficiency86% Single-Output AC to DC LED Power Supply
Brand: china-manufacturer-directory.com
SKU: 759544095
Availability: InStock
Rating: 5 (83 reviews)

Supplier:	Hyrite Lighting Co.
Price:	US $ 10.64-11.20/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LPS-24E60C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	60W
Input Voltage:	220V
Output Voltage:	24V
Efficiency:	86%
IP Rating:	IP 67
Dimensions(LWH):	1984333mm
Weight(Kg):	0.9500
Packing Information:	10 PCS/ Carton, G.W 9.5 Kg
Power Factor:	Low
Dimming:	No
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
In-Out:	AC to DC
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

24V 60W IP67 Efficiency86% Single Output LED Power Supply with CE

1.Product Feature of the LED power supply :
*Slim Body Design, Efficiency>0.86
*Constant Voltage type
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*TUV CE ROHS approval.

2. Technical Specification of the LED power supply:

Model no.	LPS-5E60C;LPS-12E60C;LPS-24E60C
Model series	LPS-C
Input voltage	170-250 VAC 50/60 Hz
Power	60 W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.65
Power factor	Low
Efficiency	85%
Output voltage	5V; 12V; 24V DC ± 5%
Output current	12A; 5A; 2.5A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*1 (18cm)
*Dimensions(LWH)*	1984333 mm
Weight(kg)	0.5000
Packing information	20 Pcs/ Carton, G.W 11KG

3.Workshop & Project & Exhibiton

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time of the LED power supply : Aro 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping term for the LED power supply:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
