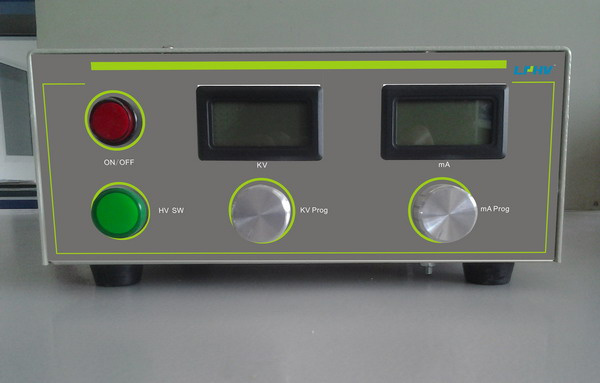

24V Input High Voltage Power Supply

Name: 24V Input High Voltage Power Supply
Brand: China-Manufacturer-Directory.com
SKU: 691655222
Availability: InStock
Rating: 4.5 (48 reviews)

Supplier:	Anshan Leadsun Electronics Co., Ltd.
Price:	US $ 800-850/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	50KV/1mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Control:	PWM
Output Type:	Single
Output Power:	1 - 50W
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	1 Year
Power Supplying System:	Level 1 Power Distribution Equipment
Certification:	RoHS
Input Voltage:	24V

Product Description

high voltage power supply 50KV/1mA,

24V input, DC output

a. individual and integrated control unit, each PC board can test and check individually.
b. PWM voltage control mode
c. input rectification, high frequency inversion, high voltage rectification to supply voltage to the ESP equipment
d. constant voltage and constant current, working constantly in rated value, voltage and current can program individually.
e. fast modulation of output, reliable protection
f. can be worked in the conditions of short circuit and sparks.
e. over current, over voltage, less voltage protection
f. high accuracy of 4 ½ digits shown constantly
g. the resolution is 0.01KV to 0.01mA

Item	Parameters	Remarks
Input voltage	24V DC	Wave less than 10%
Rated power	50W	Full load, output Umax, Imax
Rated output voltage	50kV
Rated output current	1mA
Relative voltage control accuracy	0.5%	Uo=80%*Umax
Absolute voltage control accuracy	1.5%	Uo=80%*Umax
Voltage/temperature coefficient	20V/1K
Voltage program accuracy	Better than 5%
Voltage output range	0-50KV adjustable
Output limiting current	1.0mA
Control response time	Better than 50mS
Ambient temperature	-20 ~ 50 C
Ambient humidity	10%-90% no atomization
Cooling	Air cooling
Starting	Soft start
Constant voltage control mode	PWM
Current control mode	Constant current of average value Peak value testing	Within 100nS peak value testing, cut off and restart automatically
Working frequency	40kHz
Exchanging frequency	Better than 70%	Output voltage from 50%_75% , efficiency 80%_90%
Voltage regulation rate	0.5%
Current and voltage program mode	By potentiometer OR 0~5V voltage
Monitor	0~5V voltage corresponding to 0 to full scale
Dimension	220220100 mm LBH

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
