0.25 M3/H Marine Oily Bilge Separator (YWC)

Name: 0.25 M3/H Marine Oily Bilge Separator (YWC)
Brand: china-manufacturer-directory.com
SKU: 684172922
Availability: InStock
Rating: 4.8 (123 reviews)

Supplier:	Chongqing Gathering Marine Equipment Co., Ltd.
Price:	US $ 5000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YWC Marine Oily Bilge Separator
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Oil Water Separator Standard:	Mepc.159(55)
Oil Water Separator Capacity:	0.25-5.00 M3/H
Oil Water Separator Approval:	CCS/Ec
Processing Methods:	Biology
Pullution Sources:	Water Pollution Control

Product Description

15ppm Bilge Separator

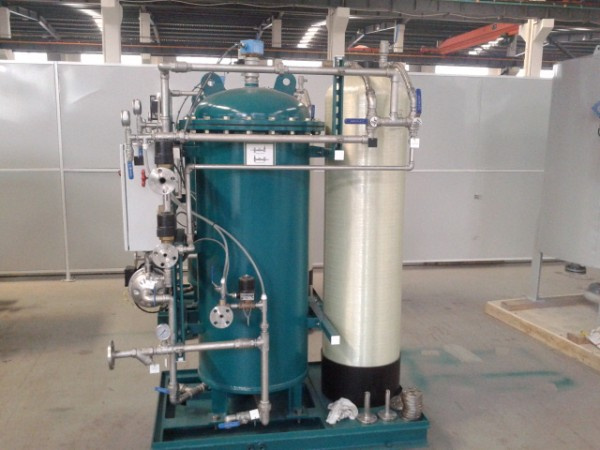

YWC Series 15ppm Bilge Separator

(15ppm Oil Water Separator)
(Patent NO. ZL 2007 2 0034686.1)

YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤ 15ppm. This separator is the high-tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.

YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT. The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from YWC can meet any standards of Environment Bureau in China.

YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) has been obtained the Type Approval of CCS, (GL) EC and IMO circular in July 2007. USCG is applying, will be coming soon in 2009.

The Main Technical Table of the YWC Series Bilge Separator
Type	YWC-0.25	YWC-0.50	YWC-1.00	YWC-1.50	YWC-2.00	YWC-2.50	YWC-3.00	YWC-4.00	YWC-5.00
Rating/max Capacity (m 3 /h)	0.25	0.5	1	1.5	2.0	2.50	3.00	4.00	5.00
Power of pump (kw)	0.37	0.55	0.75	1.10	1.10	1.50	1.50	2.20	2.20
Electric Heater Power (kw)	3	3	option	option	option	option	option	option	option
Steam Heater (m 2 /kw)	---	---	1.0/30	1/45	2/60	2/75	3/90	4/120	5/150
15ppm Bilge Alarm	included	included	included	included	included	included	included	included	included
Base (channel steel) (mm)	#5 1000*600	#6 1100*690	#6 1050*1080	#6 1100*1130	#8 1900*1120	#8 1900*1120	#8 1700*1500	#8 2280*1700	#8 2590*2000
Height( mm)	1250	1460	1600	1650	1700	1900	1900	1900	1900
Dry/wet weight (kg)	300/450	600/800	800/860	1060/1810	1260/2260	1500/2800	1800/3200	2100/3900	2500/4600
Applicable ship vessel	< 1000 DMT	1000-5000 DMT	5-10 KDWT	10-30 KDWT	30-50 KDWT	50-100 KDWT	100-200 KDWT	100-300 KDWT	300 KDWT above
