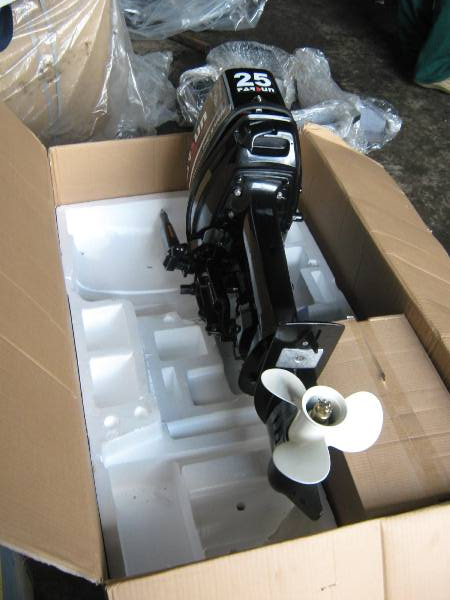

PARSUN 25hp 2-stroke outboard engine
The parsun 25HP outboard demonstrates parsun's excellence in engineering. Parsun's stylish portable 25HP twin cylinder outboard provides ultra smooth, reliable, economical performance. High quality at unbeatable value.
Features
High grade marine aluminum alloy for ultimate corrosion protection
Tilt & trim with shallow water drive various positions
Low oil indicator for increased protection
Twist grip throttle control for easy maneuverability & safety
Thermostat controlled water cooling system
Safety lanyard with emergency shutoff
Easy forward-neutral-reverse gear shifting
Vibration reduction system for smooth performance
Start in gear protection for increased safety
Adjustable steering friction for easier maneuverability
Cdi ignition system for trouble free starting
Innovative large recoil wheel assists easy starting
Quiet, through the propeller hub exhaust
Quality 24L fuel tank with hose

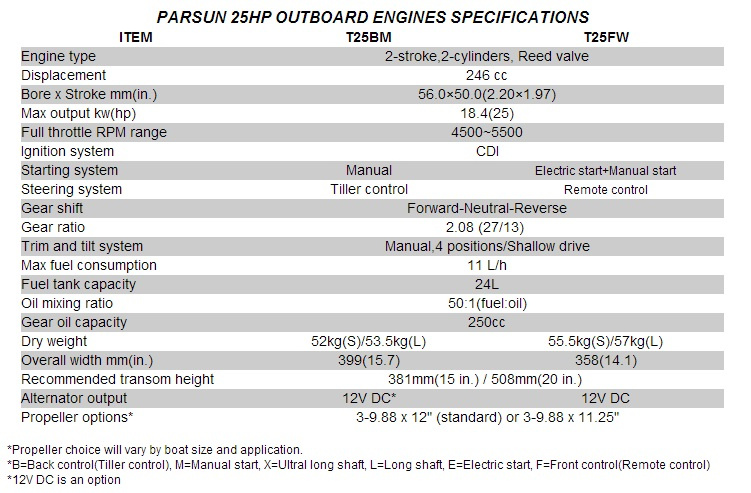

| Model | Unit | T25BMS | T25BML | T25FWS | T25FWL |
Item | |
Overall length | mm(in.) | 849(33.4) | 609(24) |
Overall width | mm(in.) | 399(15.7) | 358(14.1) |
Overall height | mm(in.) | 1134(44.6) | 1261(49.6) | 1134(44.6) | 1261(49.6) |
Transom height | mm(in.) | 381(15) | 508(20) | 381(15) | 508(20) |
Weight | Kg | 52 | 53.5 | 55.5 | 57 |
Full throttle operating range | r/min | 4500-5500 | 4500-5500 |
Maximum output | Kw (HP)@r/min | 18.4(25)@5000 | 18.4(25)@5000 |
Idling speed (Neutral) | r/min | 1050-1150 | 1050-1150 |
Engine type | | Reed Valve | Reed Valve |
Cylinders | | L2 | L2 |
Displacement | cm 3 | 496 | 496 |
Bore ×stroke | mm(in) | 72.0×61.0(2.83×2.40) | 72.0×61.0(2.83×2.40) |
Ignition system | | CDI | CDI |
Control system | | Tiller control | Remote control |
Starting system | | Manual start | Electric start/Manual start |
Gear positions | | Forward-Neutral-Reverse | Forward-Neutral-Reverse |
Gear ratio | | 2.08 (27/13) | 2.08 (27/13) |
Trim and tilt system | | Manual tilt | Manual tilt |
Fuel tank capacity | | 24 | 24 |
Maximum fuel waste | L /h | 11 | 11 |
Mixing ratio | Fuel:Oil | 50:1 | 50:1 |
Gear oil capacity | cm 3 | 320 | 320 |
Propeller options* | in | 3-9 7 /8" x 11 1 /4" | 3-9 7 /8" x 11 1 /4" |
