25HP Outboard Engine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
T25FWL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Type: |
2-Stroke, 2-Cylinders, Reed Valve |
| Displacement: |
246cc |
| Bore X Stroke: |
56X50mm |
| Max Output: |
40HP |
| Full Throttle Rpm Range: |
4500-5500 |
| Ignition System: |
Cdi |
| Starting System: |
Manual or Electric Start |
| Steering System: |
Tiller Control or Remote Control |
| Gear Shift: |
Forward-Neutral-Reverse |
| Gear Ratio: |
2.08 |
| Fuel: |
Gasoline Engine |
Product Description
Parsun 25HP outboard engine short shaft 2 stroke outboardThe parsun 25HP outboard demonstrates parsun's excellence in engineering. Parsun's stylish portable 25HP twin cylinder outboard provides ultra smooth, reliable, economical performance. High quality at unbeatable value.
Features
1. High grade marine aluminum alloy for ultimate corrosion protection
2. Tilt & trim with shallow water drive various positions
3. Low oil indicator for increased protection
4. Twist grip throttle control for easy maneuverability & safety
5. Thermostat controlled water cooling system
6. Safety lanyard with emergency shutoff
7. Easy forward-neutral-reverse gear shifting
8. Vibration reduction system for smooth performance
9. Start in gear protection for increased safety
10. Adjustable steering friction for easier maneuverability
11. Cdi ignition system for trouble free starting
12. Innovative large recoil wheel assists easy starting
13. Quiet, through the propeller hub exhaust
14. Quality 24L fuel tank with hose

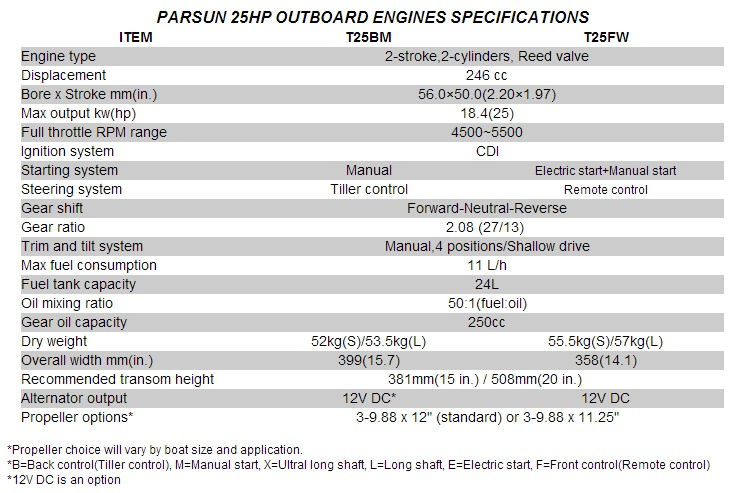

| | Model | Unit | T25BMS | T25BML | T25FWS | T25FWL |
| Item | |
| Overall length | mm(in.) | 849(33.4) | 609(24) |
| Overall width | mm(in.) | 399(15.7) | 358(14.1) |
| Overall height | mm(in.) | 1134(44.6) | 1261(49.6) | 1134(44.6) | 1261(49.6) |
| Transom height | mm(in.) | 381(15) | 508(20) | 381(15) | 508(20) |
| Weight | Kg | 52 | 53.5 | 55.5 | 57 |
| Full throttle operating range | r/min | 4500-5500 | 4500-5500 |
| Maximum output | Kw (HP)@r/min | 18.4(25)@5000 | 18.4(25)@5000 |
| Idling speed (Neutral) | r/min | 1050-1150 | 1050-1150 |
| Engine type | | Reed Valve | Reed Valve |
| Cylinders | | L2 | L2 |
| Displacement | cm 3 | 496 | 496 |
| Bore ×stroke | mm(in) | 72.0×61.0(2.83×2.40) | 72.0×61.0(2.83×2.40) |
| Ignition system | | CDI | CDI |
| Control system | | Tiller control | Remote control |
| Starting system | | Manual start | Electric start/Manual start |
| Gear positions | | Forward-Neutral-Reverse | Forward-Neutral-Reverse |
| Gear ratio | | 2.08 (27/13) | 2.08 (27/13) |
| Trim and tilt system | | Manual tilt | Manual tilt |
| Fuel tank capacity | | 24 | 24 |
| Maximum fuel waste | L /h | 11 | 11 |
| Mixing ratio | Fuel:Oil | 50:1 | 50:1 |
| Gear oil capacity | cm 3 | 320 | 320 |
| Propeller options* | in | 3-9 7 /8" x 11 1 /4" | 3-9 7 /8" x 11 1 /4" |
BREAKING NEWS!
Parsun partnered with EASTERN PRECISION and transferred 80% of its stake to DONGFANG, an A-share listed company on China Shenzhen Stock Exchange. Being affiliated to an A-share listed company gives Parsun greater room and advantage for future expansion.
We have been the first company to manufacture and export gasoline generators and water pumps in China since 1995. In 2006, after years of R&D work, we expanded into the marine engines business, which requires more sophiscated technology and state-of-art workmanship, as that' S our competitive advantage.
Now, we are the NO. 1 maker of outboard engines in China, and account for 90% of the outboards exported from China. Our customers spread worldwide including Europe, North America, South America, Australia, Africa, etc...Parsun becomes a well-known quality brand on outboard engines in many countries now.
Leveraging on our quality and service, our generators, water pumps and engines are well received in developing and developed countries. We are amongst the top companies in China in generators and water pumps exports, and most products are CE and EPA certified.
We are eager to build long term partnership with good customers based on our reliable quality and fast professional service. We believe our quality is the best power to maximize our customers' Value and satisfaction.
