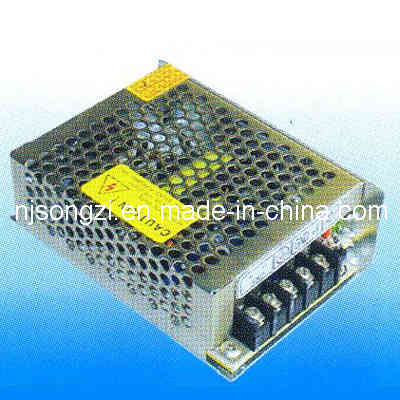

25W Single Output DC-DC Switching Power Supply
Low cost, high reliability
Built-in EMI filter
Low output ripple& noise
2: 1 wide input range
1500VDC I/O isolation
Protections: Over load/ Short circuit
Case: 802; Size: 110*78*36
DC adjustment range...± 10% rated output voltage
Line regulation (full load)...≤ 0.5%
Output over load protection...105%-150% hiccup mode, auto-recovery
Withstand voltage...I/P-O/P, I/P-F/G: 1.5KVAC, O/P-FG: 0.5KVAC, 1min
Isolation resistance...100MΩ (min) at 500VDC
Working temperature...0-40º C @100%, -10%@80%, 50º C @60% load
Storage temperature...-20º C ~+85º C, 20%~95%RH (non condensing)
Safety standards...Design refer to GB4943, UL60950-1, EN60950-1
EMC standards...Design refer to GB9254, EN55022 class A
Cooling method...Free air cooling convection
Weight...0.25Kgs/PCS
|
Product model |
Input |
Output |
Load regul. |
R&N |
Efficiency |
|
CL-25-12-5 |
9.2~18V |
5V, 5A |
1% |
100mV |
71% |
|
CL-25-12-12 |
9.2~18V |
12V, 2.1A |
0.5% |
100mV |
72% |
|
CL-25-12-24 |
9.2~18V |
24V, 1.1A |
0.5% |
150mV |
75% |
|
CL-25-24-5 |
18~36V |
5V, 5A |
1% |
100mV |
72% |
|
CL-25-24-12 |
18~36V |
12V, 2.1A |
0.5% |
100mV |
75% |
|
CL-25-24-24 |
18~36V |
24V, 1.1A |
0.5% |
150mV |
78% |
|
CL-25-48-5 |
36~72V |
5V, 5A |
1% |
100mV |
74% |
|
CL-25-48-12 |
36~72V |
12V, 2.1A |
0.5% |
100mV |
78% |
|
CL-25-48-24 |
36~72V |
24V, 1.1A |
0.5% |
150mV |
81% |
