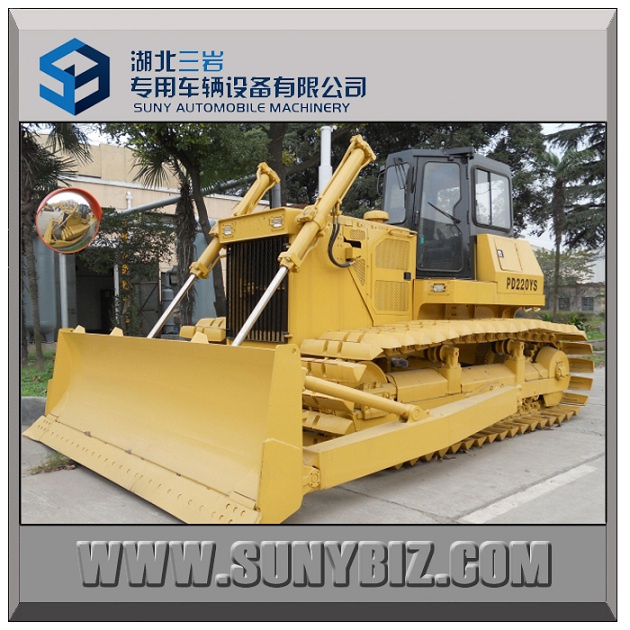

27 Ton Swamp Type Bulldozer with Cummins Engine

Product Specifications

Prod Model:	PD220YS
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Weight:	27000kg

Product Description

INTRUDUCTION TO PD220YS SWAMP TYPE BULLDOZER

PD220Y series bulldozers are manufactured according to the imported technology of Komatsu D85A. It has outstanding advantages contrasting to relevant civil products:
1. Undercarriage steering hydraulic system
We imported, digested and applied the update steering valve of Komatsu, which lead to compact structure and easy operation.
2. Electronic monitor system
    The 3-stage alarming & monitoring system is mounted in cabin, which can measure and monitor voltage, oil pressure, water temperature, oil temperature, engine speed. It also can monitor the status of fuel oil, cooling water and the condition of air filter. By the twinkling of light and buzzing of horn, the system can inform drivers the essential information of bulldozer and assure bulldozers working in normal, safe and high efficiency condition. There are also engine oil pressure gauge and water temperature gauge in the instrument panel to make parameters visible and own two-tier protection function.
3. Transmission, hydraulic parts, undercarriage and working equipment
Inter-changeable with same products of Komatsu as well as those products that are produced according to Komatsu technology.
4. The operating system is designed to be reasonable, handy and comfortable and allow more working place for the driver.
5. Final drive
The final drive gear is produced according to the imported technology strictly. Our imported specialized gear-processing equipment insure the high quality and the leading position in China.
6. The cabin is hexahedron with wide view scope.
PD220Y bulldozer is the only one which import update technology of Komatsu D85A-21and occupy leading position in China.

PD220YS SWAMP BULLDOZER SPECIFICATION

No	Description			Unit		Specification
1	MODEL			/		PD220YS
2	Engine	Model		/		Cummins NT855-C280S10
		Type		/		Straight vertical, four-stroke, water cooling, direct injection type. Turbocharger.
		Number of cylinder-bore*stroke		mm		6-139.7*152.4
		Displacement		l		14
		Fly wheel/rated revolution		kW/r/min		175/1800
		Min. fuel consumption		g/kw.h		≤235
3	Start method	Type		/		Electric starting motor
		Starting motor		V/kW		24V/11kW
		Voltage/power
		Battery		/		24V(12V*2)-195Ah
4	Lubrication system	Lubrication type		/		Forced lubrication.
		Cooling type		/		Water cooling
7	Air filter type			/		Dry type, precleaned cyclone air cleaner.
8	Transmission system	Hydraulic torque converter		/		3-element, single stage, single phase
		Transmission		/		Hand operated, hydraulic shift, planetary gear, multiple disc clutch, forced lubrication by gear pump.
		Bevel gear		/		Helical bevel gear, splash lubrication.
		Steering clutch		/		Wet, multiple disc, spring loaded, hand-operated with booster and hydraulic released.
		Steering brake		/		Wet, band brake, operated with hydraulic booster.
		Final drive		/		Spur gear, double reduction, splash lubrication.
9	Travel Speed	Forward	1st	km/h		0-3.6
			2nd	km/h		0-6.5
			3rd	km/h		0-11.2
		Reverse	1st	km/h		0-4.3
			2nd	km/h		0-7.7
			3rd	km/h		0-13.2
10	Under carriage	Suspension system		/	Equalizer bar
		Track tension		/	Hydraulic-adjusted
		Sprocket		pics	Segmented
		Number of track rollers (each side)		pics	6 (4 single, 2 double)
		Number of carrier rollers (each side)		pics	2
11	Track	Type		/	Sealed single grouser
		Track pitch		mm	216
		Number of track shoes		pics	45
		Track gauge		mm	2250
		Length of track on ground		mm	3480
		Track width		mm	945
		Ground clearance		mm	405
12	Hydraulic system of work equipment	Pump type		/	CBT3160 gear pump
		Rated delivery		L/min	257
		Control valve		/	Hand-operated, servo valve.
		Working pressure		MPa	13.7
		Fuel tank		L	110
		Blade Max. lift above the ground		mm	1350
		Blade Max. drop below the ground		mm	500
		Max. lift speed		m/s	0.35
		Max. tilt		mm	500
		Pitch adjustment		0	53.5
13	blade	type		/	Straight tilt blade
		Dimension		mm	4365*1230
		Blade capacity		m3	6.6
15	Mix. Turning radius			m	3.3
16	Ground ability			0	30
17	Dimension without ripper			mm	6166*4365*3626
18	Operating weight without ripper			ton	27
