Product Specifications
| Prod Model: |
2740 |
| Markets: |
North America,South America,Africa,Mid East,Eastern Asia,Western Europe |
| Diameter: |
0.5-30mm |
| Package: |
50-100m/Roll,According to Clients'request |
| Thickness: |
0.5-20mm |
| Quality Warranty Period: |
6 Months |
| Application: |
Switch Baseplate |
| Type: |
Solid |
| Chemistry: |
Inorganic Insulation |
| Material: |
Resin |
| Thermal Rating: |
F 155 |
| Maximum Voltage: |
<10KV |
| Color: |
Red,White,Black,Blue,etc. |
| Brand: |
Chr |
Product Description

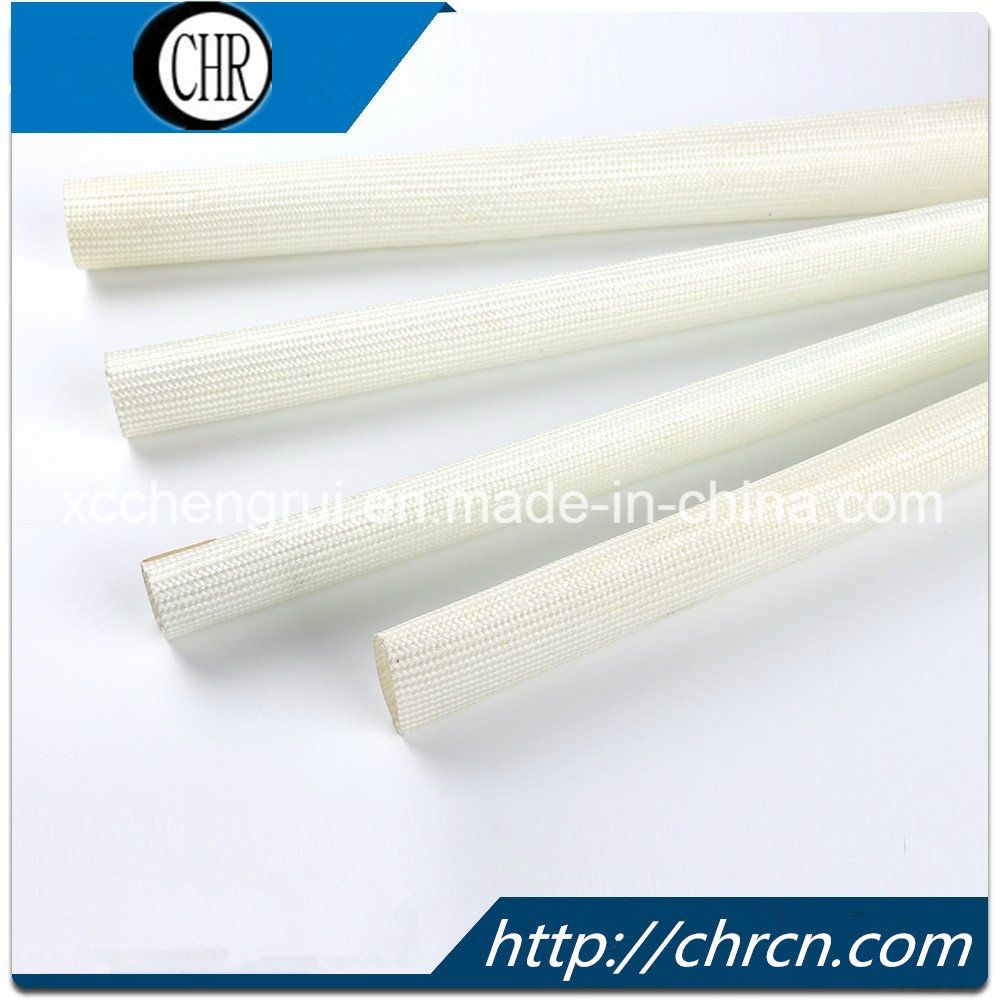

2740 class F acrylic fiberglass sleeving for insulation
1 .Description:
Insulation sleeves 2740 is made of non-alkali fiberglass coated with acrylic resin. With good dielectric properties,excellent oil, heat and benzene resistance, excellent softness and elasticity
2.Specifications
1).Diameter:0.5~30mm
2).Packing: 50-100m/roll
3). breakdown voltage is from 1.5 to 7.0 KV
4). resistance temperature is 155°c
3.Color:
yellow,white,red, other colors according to request
4. Applications:
Used for wiring insulation and mechanical protection for electrical machinery, electric appliances electrical instruments and wireless sets.
Item | Unit | Normal value |
| inner dia.& wall thickness(mm) | mm | inner dia(mm) | wall thickness(mm) |
| standard | tolerance | min | max |
| 0.5-3.0 | ±0.20 | 0.45 | ±0.10 |
4.0-9.0
| ±0.25 | 0.55 | ±0.15 |
| 10-14 | ±0.50 | 0.70 | ±0.20 |
| 16-20 | ±1.00 | 0.90 | ±0.30 |
| flame resistance | / | not less than 45 sec/25mm |
| elasticity | / | no cracking or detachment of coating visible (1) after 3 hours at 200±2°C. (2) after 2 hours at -40±6°C |
| breakdown voltage | kv.min | room temp. | 4.0
|
| after damp | 2.0 |
| heat resistance | / | no cracking detachment of coating visible after 72 hours at 200±5°C |
| quality warranty period | 6 months |
