2800/350 Toilet Paper Machine with Single Cylinder

2800/350 Toilet Paper Machine with Single Cylinder
Supplier: Shandong Xinhe Paper-Making Engineering Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: 2800-350
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Daily Capacity: 15tons/Day
GSM Range: 13.5~25g/Sqm
Trimmed Width: 2800mm
Working Speed: 350m/Min
Design Speed: 400m/Min
Dynamic Balancing Speed: 500m/Min
Driving Type: AC Sectional Control
Total Power: 125kw
Sheet Former Type: Fourdrinier Wire
Paper Thickness: Normal Specification Paper
Certification: UL
Condition: New
Type: Paper Making Machine

Product Description

Specifications

1.Toilet paper machine
2.High paper quality
3.Energy convervation
4.Excellent after-sale service

1.Main Parameter:



Product

toilet paper,facial tissue paper etc

Gsm range

13.5~25g/sqm

Trimmed width

2800mm

Capacity

15t/d

Working speed

350m/min

Design speed

400m/min

Balancing speed

500m/min

Center bearing distance

3700mm

Drying type

1 dryer Φ3000,closed hood

Driving type

AC sectional control

Total power

125kw

Dimension

13400X9000X6490mm(lengthXwidthXheight)



2.Brief Inroduction:

The equipment includes all of the land rails, electrical machines, electrical equipments, back wheels, cardan joint couplings, pulleys, belts, screws, sizing blocks, dowels, bearings, base rings, carpets and wires.

 We will send 2 engineers to be responsible for installation commissioning and training workers. You need to pay them $50 per day for each person and provide them food, hotel, air tickets and transportation. The installation period will be 90 days.

The delivery time will be 90 days after deposit in advance



Sizer: Can be provided

Calender: Can be provided

Slitter rewinder: Can be provided

Dryer hood: Open type or closed type





Company Information

  We are a professional integrated company. Main business includes paper machine manufacturing, engineering installation, commissioning and the total package of paper-making project. We own a group of excellent staff team and powerful, high-precise processing and welding equipments. Since the company was established, it has served dozens of production lines for many paper-making enterprises and enjoys a good reputation among them. A number of mills have contracted more than 10 production lines. The company is also equipped with a large number of the entire production line and assembly parts mainly exported to Southeast Asia, West Asia, and South America etc.

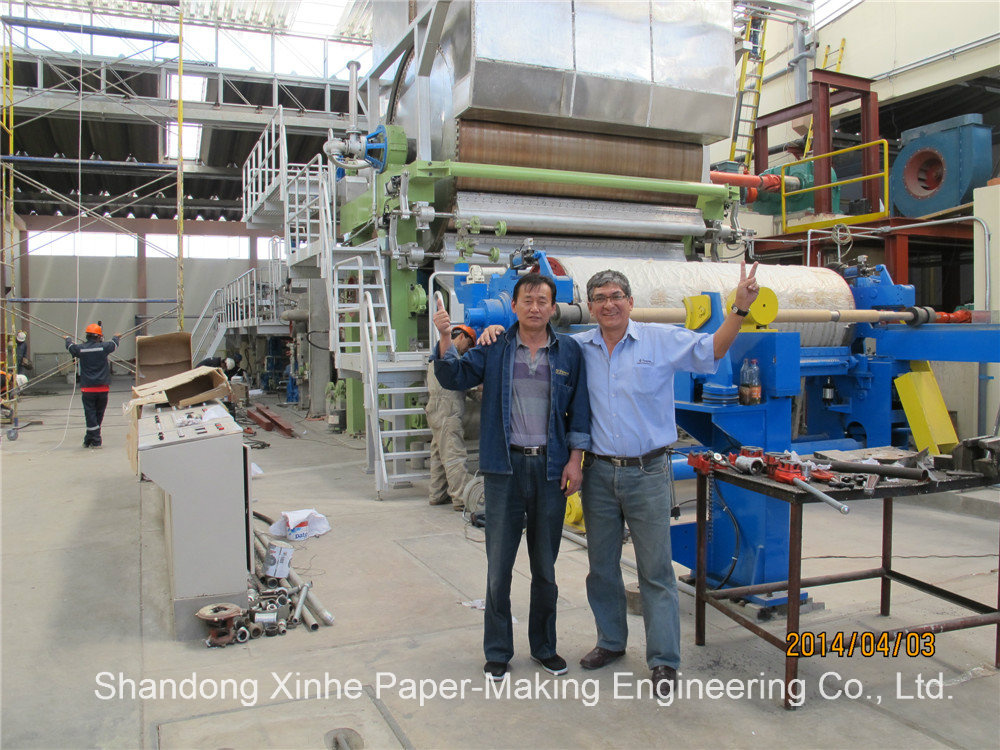

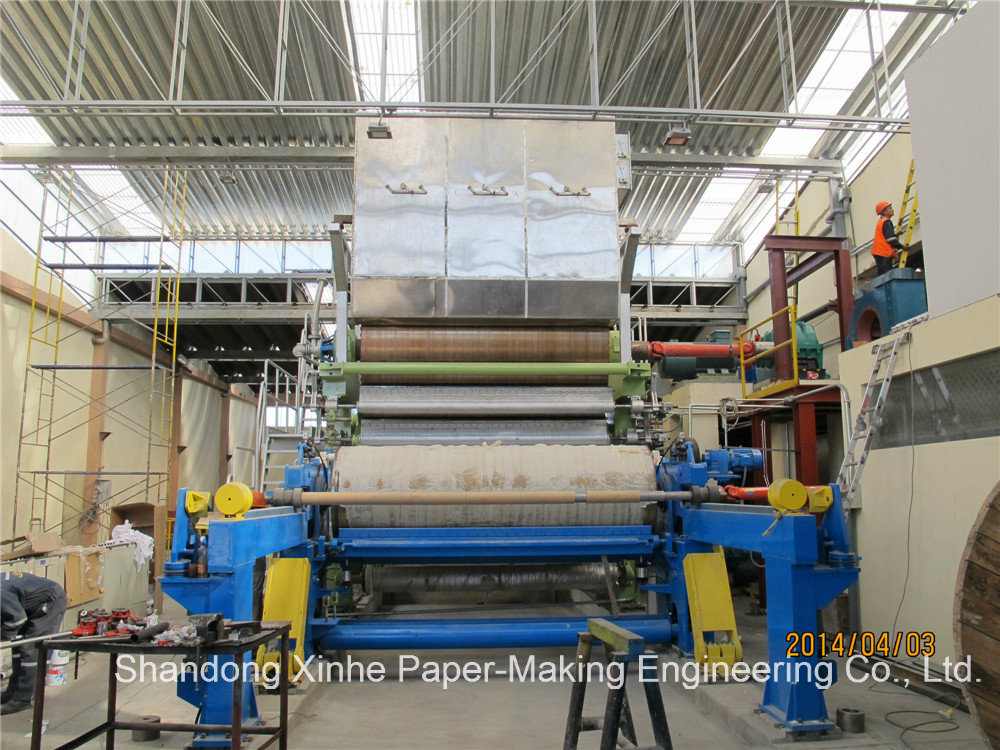

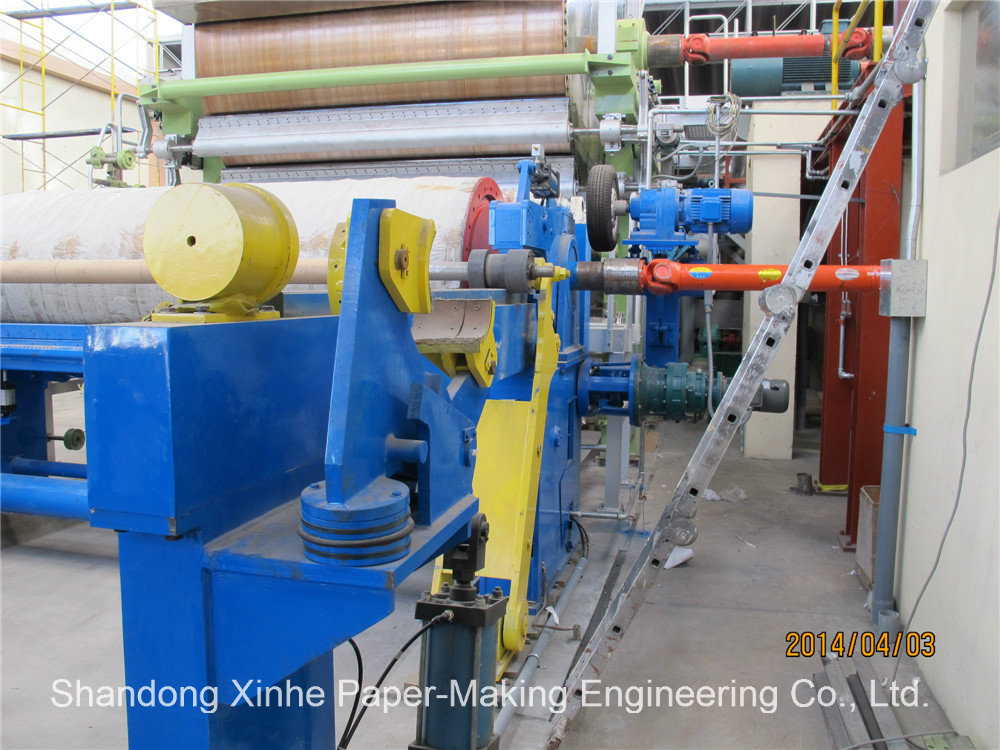

This whole line is working on Peru.



Shandong XinHe Paper-Making Engineering Co., Ltd is located in Liaocheng, west of Shandong province, which is a beautiful Water-City in the north of China. We are a professional integrated company. Main business includes paper machine manufacturing, engineering installation, commissioning and the total package of paper-making project. We own a group of excellent staff team and powerful, high-precise processing and welding equipments. Since the company was established, it has served dozens of production lines for many paper-making enterprises and enjoys a good reputation among them. A number of mills have contracted more than 10 production lines. The company is also equipped with a large number of the entire production line and assembly parts mainly exported to Southeast Asia, West Asia and South America etc.

Comer S. P. A. Was founded in 1960, is locate in Vicenza of Italy famous architecture city. It has long been engaged in mechanical pulp production line, deinked pulp production line, high-speed tissue machine, head box and designing and production of Yankee dryer. Several tissue machines in America, Brazil, Saudi Arabia etc had functioned very well, the machine speed is more than 1200m/min(basis weight 13G/m2), with low energy consumption. The finished paper has high flexibility. Comer S. P. A has first-rate design team, advanced processing equipment, pulp preparation system and pulp research lab.

Now Comer S. P. A. Authorized our company as sole agent of Crescent Tissue Machine in China. AP and South America which the paper width is between 2800-5000mm, the speed is or more than 1200-2000m/min, sell kinds of head box, steel Yankee dryer, suction touch roll, doctor and pulp-making equipments etc.

We will supply high quality product, lab service, field installation and training for all paper mills. We want to bring max profit for our customer with high quality product and low price.
