contact & negotiate!!! John:8615638823327 company:
we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
so welcome to visit and negotiate
Perfect service:
1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service
The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company.

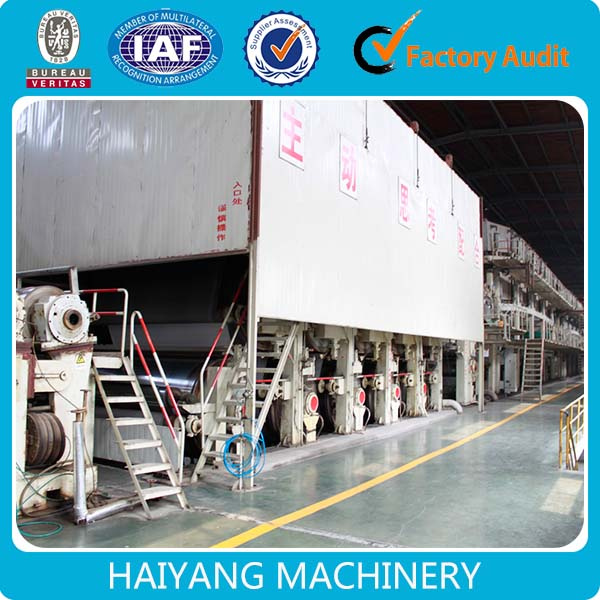

2800mm Kraft paper making machine
1Technical parameter
1. Raw material: 100% waste paper
2. Output paper: Kraft paper, corrugated paper
3. Output paper weight: 120 - 240 GSM
4. Net paper width: 2800 mm
5. Capacity: 50 TD
6. Drive way: Alternating current frequency conversion adjustable speed, section drive
Main equipment structure:
1. Cylinder section: Stainless steel mesh 3 sets; Couch roll 4 sets; Include reverse roll 1 set; With manifold distributor, step diffusion headbox made from stainless steel.
2. Squeeze section: Squeeze roll 2 sets. Pneumatic pressure device.
3. Press section: Blind press roll 2 set, . Pneumatic pressure device.
4. Dryer section: Alloy dryer can 18 sets, equipped with dry wire device and 18 sets of scraper
5. Sizing section: Size roll 2 sets.
6. Winding section: 2880mm model Horizontal pneumatic winding machine 1 set.
7. Rewinding section: 2880mm model Upper feeding Frame type rewinding machine 1 set
| No. | equipment | Qty(set/sets) |
| 1 | 2800mmmulti-cylinder and multi-mesh paper machine | 1 |
| 2 | dryer can exhaust hood | 2 |
| 3 | axial flow ventilator | 3 |
| 4 | roots pump | 2 |
| 5 | suction box | 4 |
| 6 | 2800mmwinding machine | 1 |
| 7 | 2800mmrewinding machine | 1 |
| 8 | horizontal hydra-pulper | 2 |
| 9 | high frequency vibration screen | 4 |
| 10 | reject separator | 2 |
| 11 | De-sander | 4 |
| 12 | vat thicker | 2 |
| 13 | double disc refiner | 8 |
| 14 | 15mconveyer | 2 |
| 15 | impeller | 6 |
| 16 | 4 inch pulp pump | 4 |
| 17 | 6 inch pulp pump | 8 |
| 18 | 8 inch pulp pump | 4 |
| 19 | frequency conversion controlling cabinet | 1 |
| 20 | Work table | 1 group |
| 21 | Air pump | 1 |
| 22 | 6T boiler | 1 |
Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication
Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients
Why choose us
Our company gathers a technique team of engineers and experts with over 30 years' experience which helps us be a professionall on all kinds of paper making machines and make us competitive on the market. We focus on quality and customers' need and improve our technology and service continually. We believe our devotion to work will help us to achieve global leadership in providing first-class products and superior quality services to customers around the world
Our advantages
Technical advantage
1. Experiences producing team
2. Advanced technological strength
Product advantage
1. Through the international authentication
2. Same material with most preferential price
3. A lot of varieties for the customer to choose
Service advantages
1. Technical consultation
2. Project evaluation
3. Detailed design of factory
4. Installation and test the whole production line
5. Training engineers and workers
6. Supplying spare parts for long time
