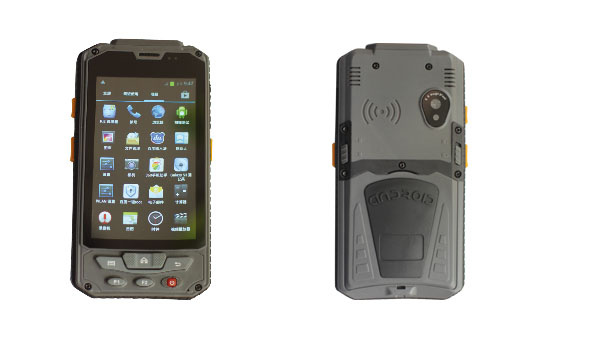

2d Barcode Terminal Tablet

Product Specifications

Prod Model:	H5900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
Touch Screen:	Touch Screen
Type:	Barcoder
System:	Android
CPU:	Dual Core 1.2GHz

Product Description

Features
The processor Cortex A9 1GHZ The processor
Cortex A9 1GHZ
Memory capacity ROM: EMMC 32Gb RAM: LPDDR2 4Gb

The operating system Android 4.03
Wireless communications GPRS(option) GPRS, EDGE, 4-band 900/1800, 850/1900
WCDMA(3G, option) band 850/2100, Cat. 8 HSDPA Cat. 6 HSUPA
WIFI(standard) Conform to the IEEE 802.11b/g
Bluetooth(option) Conform to the Bluetooth 4.0
Display
4.3inch IPS display, The resolution of the 480*800, Gabo Lingual perspective, the sun is visible
4.3inch IPS, pixel 480*800
Touch screen
Support more capacitive touch
Indicator light
() Network indicator light, charge indicator
,
Audio
() Support the speech

Micro SD card
( Micro SD) Support 32 gb MICRO SD card
32G MICRO SD
Data security
() Product is the data security protection, in a completely off electricity (remove the battery and the power converter), data is not lost
, (),
GPS indicators
(GPS) Channel: Channel 12: 12
Receive types: L1, C/A code and carrier phase smoothing: L1, C/A,
Heavy capture: < 1 s: < 1s
The latest ASIC chip; A squadron of patent algorithms; EVEREST multipath suppression technology
ASIC; COASTEVEREST
Error range: < = 10 meters: <=10
Navigation map
Support navione, baidu, Google, gold and other navigation map
The input method
Full-screen handwriting, half screen handwriting, strokes and pinyin, Numbers, letters, symbols
Physical interface
High-speed USB2.0 interface equipment end, 3.5 stick related plug-in interface
USB2.0, 3.5
Camera
The rear 500 w megapixel camera with flash
500W,
The flashlight
Low power consumption LED lights lighting, emergency use LED,
The fingerprint module(option) Sensor types: Inductive, image size: 256 * 288, image resolution: 500 dpi
Registration time < 3 seconds, compare the time < < 0.1 s, than in time of 0.5 seconds (100)
Boomed from < 0.1%, recognize false rate < 0.001%, fingerprint capacity: 512
A dimensional barcode(SE4500/N431X)
Read code system
Can read all kinds of main one-dimensional bar code: Code 39\Code 93\Code 128\Codebar\EAN-13\EAN-8\UPC-A\UPC-E\ITF 14\UCC/EAN-128\ITF 25\Matrix 25\EAN-128\ISBN
: Code 39\Code 93\Code 128\Codebar\EAN-13\EAN-8\UPC-A\UPC-E\ITF 14\UCC/EAN-128\ITF 25\Matrix 25\EAN-128\ISBN
Read distance
0 cm~50 cm
Two dimensional barcode
Moto-SE4500 Hardware decoding, the decoding speed and error rate of 0.01% or less
, , ≤ 0.01%
Honeywell-5180
RFID
Ultra high frequency
(915MHz) More than 3 m distance for EPC C1 GEN2 / ISO18000-6 - c protocol of 900 MHZ tag read operation (associated with tags and antenna)
3mEPC C1 GEN2 /ISO18000-6C900MHz()
High frequency
(13.56MHz) 0 ~ 7 cm range for ISO15693, ISO14443 double deal 13.56 MHz tags for reading and writing (associated with tags and antenna)
0~7cmISO15693\ISO1444313.56MHz()
Low frequency
125 K / 134.2 K animal ear tag
125K/134.2K
PSAM Support two PSAM card
PSAM
High frequency (CPU card read)
(CPU) Support the CPU card read and write, used with PSAM
CPU, PSAM
Active in close communication(option)
Active 2.45 G
(2.45G) Distance is 200 m, 200 m label can be read all at once
200m, 200
433M Read more than 200 m distance, distance is adjustable
200m,
Battery performance
The battery
() 4100 mah lithium polymer battery, standby time: More than 150 hours, working time: More than 8 hours, ac adapter charging (1 a)
4100mAh,: 150,: 8, (1A)
The battery standby time
() After a full charge, the wireless communication function on standby, after 360 hours, can run normally
, , 360,
Battery charging time
() Charging time < 4.5 hours
<4.5
Charging time
() More than 8 hours (a charge)
8()
The work environment
Operating temperature
() -20C~50C
Storage temperature
() -20C~70C
Relative humidity
() 10%~90%RH,
Protection grade
() IP65
