Supplier: | Leader Precision Instrument Co., Ltd. |
---|---|
Price: | US $ 3000-7000/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB |
![]() |
Prod Model: | MV-1510 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No.: | Mv-1510 |
Travel-X.Y Axis: | 150*100(Mm) |
Travel-Z Axis: | 150 |
Repeatability: | 0.003mm |
Stage Size: | 354*228mm |
Stage Load Capacity: | 30kg |
Dimension L*W*H: | 540*560*850mm |
Net Weight: | 98kg |
Optional Delivery: | Digital Readout Mc800 |
Standard Delivery: | English User Manual |
Type: | Video |
Principle: | Optics |
Mobility: | Desktop |
Number Of Cylinder: | Binoculars |
Shape: | Cylindrical Shaped Lens |
Usage: | Measuring |
Magnification: | 40X-255X |
Principle Of Optics: | Ordinary |
Brief introduction of 2D Non-Contact Video Measuring System (MV-1510)
The MV series vision measuring machine is widely used in the world due to the following features:
1. Solid granite frame guarantees strength, accuracy and stability
2. Precision stages are available
3. Higher resolution linear encoder 0.5µ M
4. Superb full-color high resolution image with zoom optics
5. Sighting device: Cross-hair generator
6. Connection: RS232 or USB output and metrology software
7. High resolution S-video color CCD camera
8. New MC800 geometric DRO
9. One-click edge detection

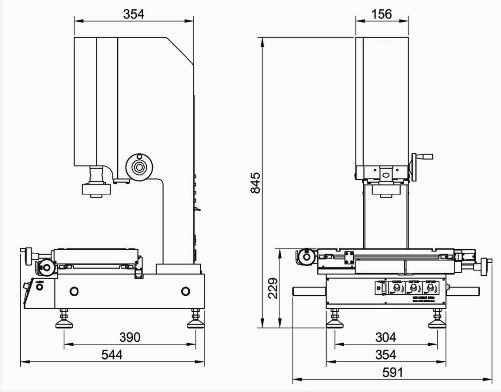

The size and picture of this video measuring machine
The specification of this video measuring system (VMM)
Model No. | MV-1510 | MV-2010 | MV-3020 | MV-4030 |
Travel-X.Y axis | 150*100(mm) | 200*100(mm) | 300*200(mm) | 400*300(mm) |
Travel-Z axis | 150 | 150 | 150 | 150 |
Resolution | 0.05µm | 0.05µm | 0.05µm | 0.05µm |
X,Y-axis accuracy | ±(3+L/75)µm | ±(3+L/75)µm | ±(3+L/75)µm | ±(3+L/75)µm |
Repeatability | 0.003mm | 0.003mm | 0.003mm | 0.003mm |
Stage size | 354*228 | 404*228 | 500*330 | 606*466 |
Stage load capacity | 10kg | 10kg | 20kg | 30kg |
Dimension L*W*H | 540*560*850 | 540*560*850 | 760x600x900 | 970x670x940 |
Net weight | 98kg | 108kg | 138kg | 238kg |
Measuring software M2D | 1/3'' High resolution camera | Zoom lens 0.7x-4.5x(28X-180X) |
Capture Card | USD transfer Box | Learning kit |
Digital Readout MC800 | Navitar Click Zoom Lens | Navitar Zoom Lens |
Navitar Coaxial Zoom Lens | SENTECH CCD Camera | Computer |
