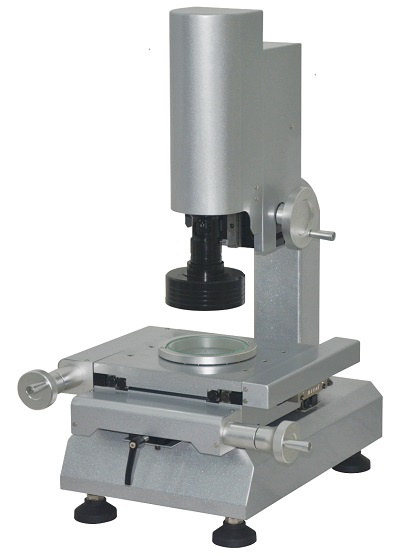

2D Portable Video Measuring Instruments (OP-TEK 1010)
Product Specifications
| Prod Model: |
OP-TEK 1010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Metal Table Size: |
200X200mm |
| Glass Table Size: |
Dia 100mm |
| S/Y-Axis Travel: |
100X100mm |
| Accuracy: |
2.0+L/200 |
| Repeatability: |
±2um |
| Linear Scale: |
High-Precision Linear Scale, Resolution:0.0005mm |
| Illumination: |
Adjustable 256-Grade LED Cold Illumination Adjust |
| Video System: |
USB2.0 CMOS Camera, 6.5X Detented Zoom Lens |
| Measuring Software: |
Op-Tek 1.0 |
| Max.Load (Kg): |
10 |
Product Description
Characteristcs:
High-strength aluminum alloy structure and Pretty design with compacted frame, steady performance, facilitated operation and easy carry;
High-precision V-type linear guide and toothless rod drive to ensure good stability, rigidity and reduce the geometric error of the dynamic deformation;
Unique center rotary table and high-accuracy glass stage are available;
Adjustable LED cold illumination (contour and surface) controlled by software and PC system, avoid the thermal deformation of sample;
High resolution CMOS Camera without image card, USB2.0 interface supports plug and play, Simple and practical OP-TEK software, desktop and notebook PC are available.
Specifition:
| Model | OP-TEK 1010 | OP-TEK 2010 |
| Code | 522-108 | 522-118 |
| Metal Table Size | 200x200 | 300x200 |
| Glass Table Size | ¢100mm | 220x120mm |
| S/Y-axis Travel | 100x100mm | 200x100mm |
| Accuracy | 2.0+L/200 | 2.0+L/200 |
| Repeatability | ±2um | ±2um |
| Linear Scale | High-precision linear scale, resolution:0.0005mm |
| Illumination | Contour | Adjustable 256-grade LED Cold illumination
Adjustable 256-grades 3-Ring & 8-Division LED illumination |
| Surface |
| Video System | USB2.0 CMOS Camera, 6.5X Detented zoom lens |
| Measuring Software | OP-TEK 1.0 | OP-TEK 1.0 |
| Max.Load (kg) | 10 | 10 |
| Dimension | 40x46x65 | 50x46x65 |
| Net Weight | 30kg | 30kg |
Standard Delivery:
| Product Name | Code# | Product Name | Code# | Product Name | Code# |
| Detented Zoom Lens | 421-111 | Rotary Table | 581-541 | 8-division LED Illumination | 425-161 |
| CMOS Camera | 484-314 | Power Cable | 581-921 | Data Processing System | 564-341 |
| OP-TEK Software | 581-108 | USB2.0 Cable | 581-951 | Operation Manual | OP-TEK |
