Product Specifications
| Prod Model: |
UV2030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2m*3m |
| Head: |
Konica512 Konica1024 |
| Color: |
Cmyk,LC,Lm,White |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| System Supported: |
Windowsxp32 |
| Structure: |
Platen Press |
| Printing Speed: |
7.5CPI |
Product Description
Our Technology
1 printheads we use Japan Konkia 512-14PL/MH, Konca1024/14pl the head have auto heating function
2 motor serve and electric we use Japan Panasonice motor and switch, is very steable and good quality.
3 machine body we use steel made, the table at the same level. Can guarantee the steable during printing.
4 y direction screw we import from Taiwan. The terolance is less than 0.001mm
5 the table have vacuum or up-down wheels function
6 printheads adjust is manual.
7 material: Sheet to sheet the maximum material thickness is 5 cm
8 uv ink we use two kinds, they are UK sunjet and Japan TOYO ink
9 the machine have auto cleaning system, C M Y K LC LM W can cleaing individualy or at the same time.
10. Software we use Photoprint 6.0 with dogeon, can control the customer pay by month just like use credit card if the customer want buy machine but just can pay by month.
11 our machine passed CE certificate, from Greece MIRTEC, our Certificate Number: MC/TH-C-456/09.
Good Quality Along With Good Service
We are a professional uv printer machine manufacturer in China.
We treat quality as our life. Also we always supply good service to our clients.
Higher Speed Plus Higher Resolution
We use different printheads from Konica company, there are KM512 and KM1024.
Konica head now is the main print head type in uv printing line, it's stable and fast.
We start to use Konica printhead from the begining to now. KM1024-6PL printheads support client to print terrific quality by 4 colors 4 pass.
It's the highest uv printer machine technology in China, only Docan master this technology.
Stable Performance
We use high quality machine parts with famous brand, such as Konica printheads,
Taiwan Delta servo motors, Japan THK Guide rail, USA PALL filters, German KNF ink
And air pump, ONYX rip software, Agfa uv ink, SMC ink tube...
Wide Application Area
Application areas: Decoration industry, glass industry; Sign industry, exhibition industry,
Leather industry, album printing industry, furniture prinitng industry, textile printing industry, etc.
Media to Print: Glass, ceramic tile, ceiling, aluminum sheet, wooden board, billboards, acryl sheets,
KT board, Plexiglas, foam board & flexible media like wall paper, glistening film, canvas, carpet,
Leather, paper sheets, etc
|

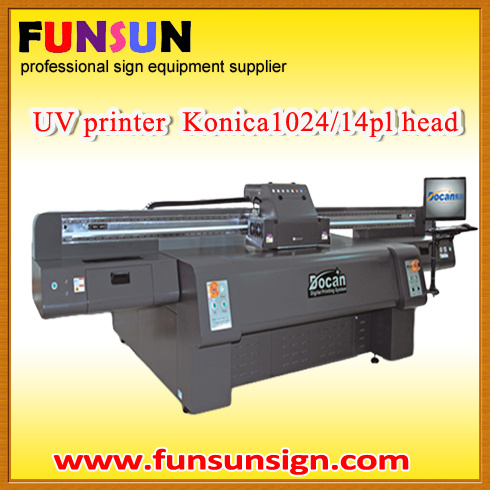

UV2030 Flatbed printer |
|
Item Name |
uv flatbed printer |
|
Model |
uv2030 |
|
Print Technology |
Drop-on-demand Piezo Electric |
|
Working Platform |
Vacuum and roll to roll platform |
|
Print-head Type |
Konica 512-14PL /42PL |
|
Print-head No. |
4/5/6/7/8/10/12/15/16 pcs |
|
Printing Size |
2.00 m width x 3.00 m |
|
RIP Software |
Photoprint 10 |
|
Drying System |
UV lamp |
|
Resolution |
360 dpi x 360 dpi 360 dpi x 720 dpi |
|
720 dpi x 360 dpi 720 dpi x 720 dpi |
|
720 dpi x 1440 dpi 1440 dpi x 1440 dpi |
|
Printing Speed |
In draft mode up than 28 sq.m ( 4 heads ) |
|
In standard mode up than 18 sq.m ( 4 heads ) |
|
In high resolution mode up than 11 sq.m ( 4 heads ) |
|
Ink |
Ink Type |
UV curing ink |
|
Ink Color |
4 colors (C, M, Y, K) - 7colors (C, M, Y, K, LC, LM + W) |
Printing Materials
(55mm thick max.) |
Flat rigid media: glass, ceramic tile, ceiling, aluminum sheets, etc.
Flexible media like wall paper, glistening film, canvas, carpet^
Media in roll: vinyl roll, banner roll, fabric reel, canvas reel^ |
|
Printing Art Life |
Outdoor 5 years, indoor 10 years |
|
Power Supply |
AC220V 50/60HZ (10%) Max 30A |
|
Working Conditions |
Temperature 18-30 degrees, Humidity 40% - 70% |
|
Machine Size |
4890mm*1520mm*1810mm |
|
Printer Weight |
1870 kgs |
|
Packing |
By solid wooden carton |
As a leading Sign equipment supplier, we (Shanghai Funsun Digital&Technology Co., Ltd. )have been in this line of business for years and enjoy high international prestige.
High resolution large format printer with Epson, Konica, Seiko or Polaris head, both indoor and outdoor printer, with all kinds spare parts, as well as ink and printing media.
Both CNC and laser engraver are with CE certification, also provide all size vinyl cutting plotter.
