Product Specifications
| Prod Model: |
IPC-HFW1200S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Megapixel: |
2m |
| Type: |
Monitoring System |
| Application: |
All-Round Monitoring |
| Kind: |
Autofocus Lens |
| Feature: |
Mini Size |
| Client Software: |
Client Software |
| Software Usage: |
Mobile Phone Monitoring Software |
| Software Function: |
Monitoring+Control |
| Model: |
Surveillance |
| Video Transmission System: |
Network Cable Transmission |
| Technology: |
Infrared |
| Sensor: |
CMOS |
| Horizontal Resolution: |
2.0 Megapixel |

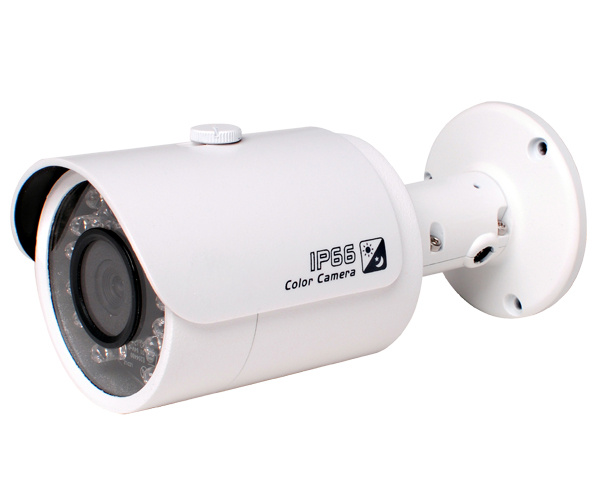

Product Description
>1/3" 2Megapixel progressive scan CMOS
>H.264&MJPEG dual-stream encoding
>Max 25/30fps@1080P(1920x1080)/720P(1280x720)
>Day/Night(ICR), 2DNR,AWB,AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (6mm optional)
>Max. IR LEDs Length 30m
>IP66, DC12V, PoE
Model
IPC-HFW1200S
Camera
Image Sensor
1/3" 2Megapixel progressive scan CMOS
Effective Pixels
2048(H)´1536(V)
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/10000s
Min. Illumination
0. 1Lux/F1.6 (Color) ;0Lux/F1.6(IR on)
S/N Ratio
More than 50dB
Video Output
N/A
Camera Features
Max. IR LEDs Length
30m
Day/Night
Auto(ICR)/Color/B/W
Backlight Compensation
BLC/ HLC
White Balance
Auto/Manual
Gain Control
Auto/Manual
Noise Reduction
2D
Privacy Masking
Up to 4 areas
Lens
Focal Length
3.6mm (6mm optional)
Max Aperture
F1.6(F1.8)
Focus Control
Manual
Angle of View
H: 72.5°(44°)
Lens Type
Fixed lens
Mount Type
Board-in Type
Video
Compression
H.264/MJPEG
Resolution
1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/
CIF(352×288/352×240)
Frame Rate
Main Stream
1080P/720P(1 ~ 25/30fps)
Sub Stream
D1/CIF(1~25/30fps)
Bit Rate
H.264: 16K ~ 8192Kbps
Audio
Compression
N/A
Interface
N/A
Network
Ethernet
RJ-45 (10/100Base-T)
Wi-Fi
N/A
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,
ONVIF
ONVIF Profile S
Max. User Access
20 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot
N/A
RS485
N/A
Alarm
N/A
PIR Sensor Range
N/A
General
Power Supply
DC12V,PoE (802.3af)
Power Consumption
Max 6W
Working Environment
-30°C~+60°C, Less than 95% RH
Ingress Protection
IP66
Vandal Resistance
N/A
Dimensions
70mm×66mm×155mm
Weight
0.62kg
