2m Transmission Analyzer/2m Bert Tester/2m Data Tester

Name: 2m Transmission Analyzer/2m Bert Tester/2m Data Tester
Brand: china-manufacturer-directory.com
SKU: 723576185
Availability: InStock
Rating: 4.9 (145 reviews)

Supplier:	Shenzhen Hontek Co., Ltd.
Price:	US $ 680-700/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,CPT

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

2M Transmission Analyzer

This product is Chinese-made, it has many names, like 2M Transmission Analyzer, 2M Bert tester, 2M data tester, and E1 BER Tester, but same function.

Please contact kitty if you need help.

It is multi-functional and full- featured, hand-held, LCD display.

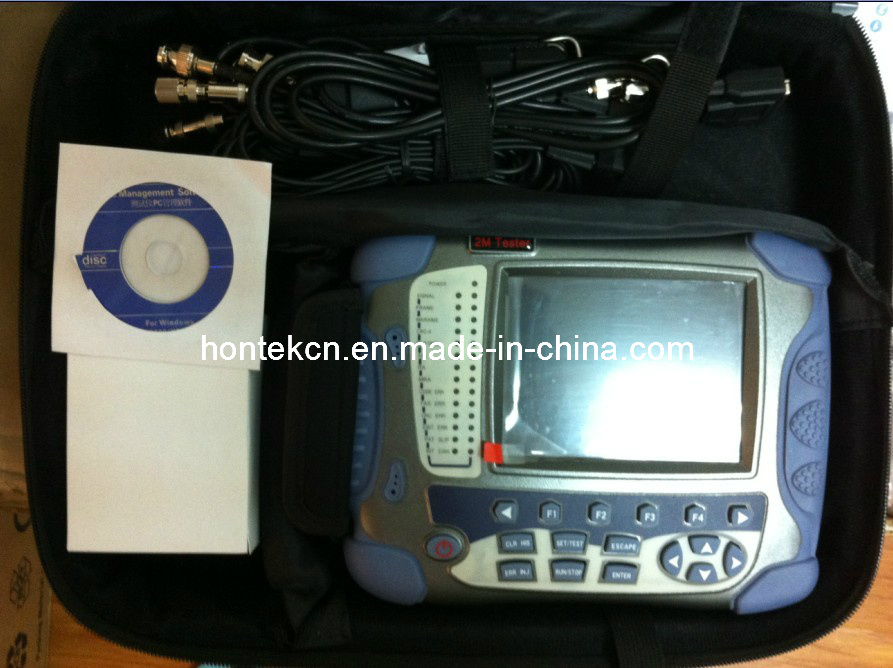

Accessories:
1. Main unit 1 PC
2. BNC-BNC testing cable 1 PC
3. BNC-L9 testing cable(75Ω ) 2 PCS
4.120Ω Testing cable 1 PC
5. RS232 Serial Interface Cable 1 PC
6. USB to Serial Adapter 1 PC
7. Smart battery charger 1 PC
8. Top-grade waterproof carrying case 1 PC
9. PC management software CD 1 PC
10. Warranty card 1 PC

We also have other products, please see list below:

Our main products:

1. Fusion splicer: Sumitomo (type-66/-81c/z1c)
Fujikura (fsm-60s/70s/60r/70r/80s)
Fitel (S178A/S199M12)
Chinese fusion splicer (HSV6000)

2. OTDR: EXFO (axs-100/110, ftb-1/200/500),
JDSU (mts-2000/4000/6000/8000)
YOKOGAWA (AQ7275)
Ethernet tester: AXS-200/610/630/635/805/850/855)

3. Power meter (PPM-350c, FPM-300, HSV300P)
Light source (fls-300, HSV-300L)
VFL (fls-240, HSV-321)
Multi Loss tester (FOT-930, FOT-302)

4. Anritsu site master S331L, S331E, S332E.
5. Fiber cleaver (CT-30(A)/FC-6S), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, splice protector, adapter, closure, pigtail, optical switch, patch panel, etc...
7. Maintenance and repair, calibration service for the EXFO, Sumitomo, Fujikura, Anritsu.

Item	Description
2M	Internal Clock	2048kb/s ± 10ppm
	Frequency Deviation	±999ppm
	Line Interface	75Ω (Unbalanced), 120Ω (Balanced); High Input Impedance > 2K W
	Line Code	HDB3, AMI
	Framing	Unframed, PCM30, PCM30CRC, PCM31, PCM31CRC
	Receive Sensitivity	> -43dB
	Tx Clock Source	Internal, Interface and External 2MHz clock or signal
	Pulse Mask Measurement	Comply with G.703
	Jitter Measurement	Comply with O.172
	Frequency Measurement	Accuracy: ±1Hz
	Offset Measurement	Accuracy: ±1ppm Range: -999ppm ~ +999ppm
	VF Injection	Frequency: 200Hz ~ 3400Hz, Step: 10Hz
		Level: -60dBm ~ +3dBm
	VF Measurement	Frequency: 200Hz ~ 3400Hz, Accuracy: ±1Hz
		Level range :-60.00dBm ~ +3.14dBm -60.00dBm ~ -21.00dBm, accuracy: ±2.87dBm -20.00dBm ~ +3.14dBm, accuracy: ±0.21dBm
	Delay Measurement	Accuracy: ±1μs
G.703 CO	Line Rate	64kb/s ± 100ppm
	Line Interface	120Ω, Balanced
	Line Code	AMI
Datacom	Line Interfaces	V.24, V.35, V.36, X.21, RS-449, RS-485, EIA-530, EIA-530A
	Data Rate	ASYNC	300, 600bit/s, 1.2, 2.4, 4.8, 7.2, 9.6, 19.2, 38.4kb/s
		SYNC	300, 600bit/s, 1.2, 2.4, 4.8, 7.2, 9.6, 19.2, 38.4kb/s, N×64kb/s ( N=1 ~ 32),4M,8Mkb/s
Test Patterns	PRBS	2 23 -1,2 20 -1, 2 15 -1, 2 11 -1, 2 9 -1,2 6 -1
	Fixed Code	1111, 0000, 1010
	16-BIT	User Programmable Word
LED Alarm Indicators	Signal Loss, AIS, Frame Loss, MFrame Loss, Pattern Loss, Remote Alarm, Error, Clock Slip.
Error Injection	Type: BIT, FAS, CRC4, CODE, E-BIT
	Single, Fixed Rate : 10 -2 , 10 -3 , 10 -4 , 10 -5 , 10 -6 , 10 -7
Performance Analysis	ITU-T G.821, G.826 and M.2100
Display	320x240 pixel backlit monochromatic LCD
Serial Port	RS-232C
Rechargeable Batteries	5×1.2V AA NiMH batteries, continuous working for 6 hours
Recharge Time	Approx. 2 hours
AC Power Adapter	Input: 100V ~ 240VAC, 50/60Hz Output: 12VDC/1.5A
TestManager Pro	WIN98/ME/NT/2000/XP
Dimensions	L×W×H 200mm × 160mm × 45mm
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 70°C
Humidity	5% ~ 95% non-condensing
