Supplier: | Yueqing Langir Electric Co., Ltd. |
---|---|
Price: | US $ 8.3/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | JB-2P |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mini Circuit Breaker Rated Voltage: | 1p=250 V DC, 2p=500 V DC 3p=750 V DC, 4p=1000 V DC |
Mini Circuit Breaker Rated Current: | 6,10,16,20,25,32,40,50,63A |
Mini Circuit Breaker Handle Color: | Blue |
Mini Circuit Breaker Brand: | Langir |
Mini Circuit Breaker Is Customed: | Yes |
Breaking Capacity: | Low Voltage Circuit Breakers |
Operation: | Manual Type |
Speed: | Normal Type Circuit Breaker |
Structure: | MCCB |
Certification: | CE |

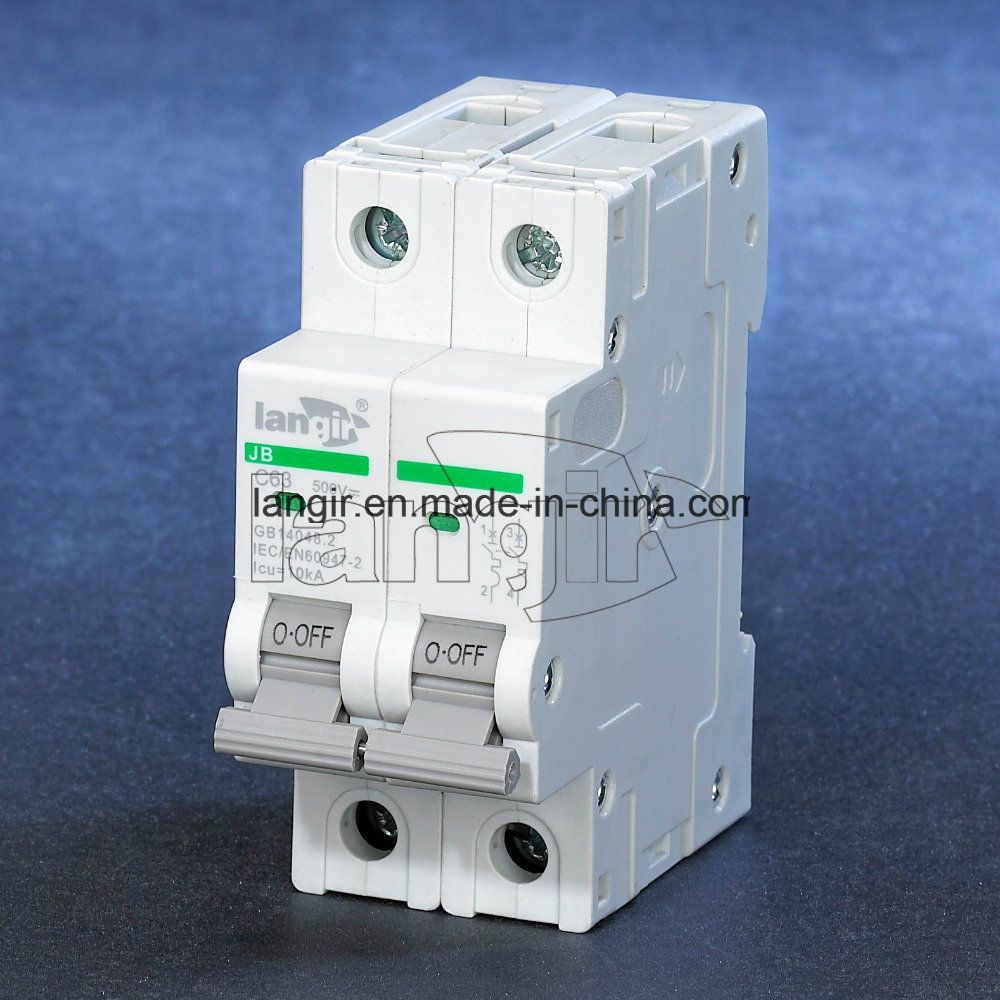

The JB is a DC circuit breaker dedicated to multi string photovoltaic installations.
Storage -40 to 85 degree
- This circuit breaker is designed to protect the cables located between each string of photovoltaic modules and the photovoltaic inverter against overloads and short circuits (see application diagram).
- Combined with a switch , the JB will be installed in a string PV protection enclosure at the end of each string of photovoltaic modules.
- It can be locked (by a padlocking device) in OFF position as a safety measure for removal of the PV inverter.
- Since a fault current can flow in the reverse direction to the operating current, the JB can detect and protect against any bidirectional current.
- To ensure the safety of the installation, it is necessary, depending on the various types of application, to combine the JB with:
a residual current device at the AC end
a fault passage detector (insulation monitoring device) at the DC end
an earth protection circuit breaker at the DC end
- In all cases, fast action on site will be required to clear the fault (protection not ensured in the event of a double fault).
- JB is not polarity sensitive: (+) and (-) wires can inversed without any risk.
- The JB is: delivered with three inter-pole barrier to provide increased isolation distance between two adjacent connectors.
Main characteristics
Operating Voltage (Ue) | 1P=250 V DC, 2P=500 V DC 3P=750 V DC, 4P=1000 V DC |
Rated insulation voltage (Ui) | 1,000 VDC |
Breaking capacity (Icu) | 10 kA |
Impulse voltage (Uimp) | 4 kA |
Electrical connection | By the bottom for In and Out |
Number of poles | 1P, 2P, 3P, 4P |
Standards | IEC 60947-2 EN 60947-2 |
Rated service breaking capacity (Ics) | 100% of the Icu | |
Endurance (O-C) | Electrical | 1,500 cycles (where L/R=2 ms) |
Mechanical | 20, 000 cycles | |
Mechanical | 20, 000 cycles | |
Degree of pollution | 2 | |
Category | A (no delay in accordance with IEC / EN 60947-2 standards) | |
Degree of protection (IEC 60529) | IP40 | |
Tropicalisation | Relative humidity: 95% at 55 degree in accordance with IEC 60068-2 and GB 14048.2 standards | |
Temperature | Operating | -25 to 70 degree |
Storage | -40 to 85 degree |
