Product Specifications
| Prod Model: |
28hs51-0956 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angel: |
1.8 Degree |
| Motor Length: |
51mm |
| Current: |
0.95 a |
| Motor Weight: |
0.2kg |
| Type: |
Electromechanical |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
Product Description

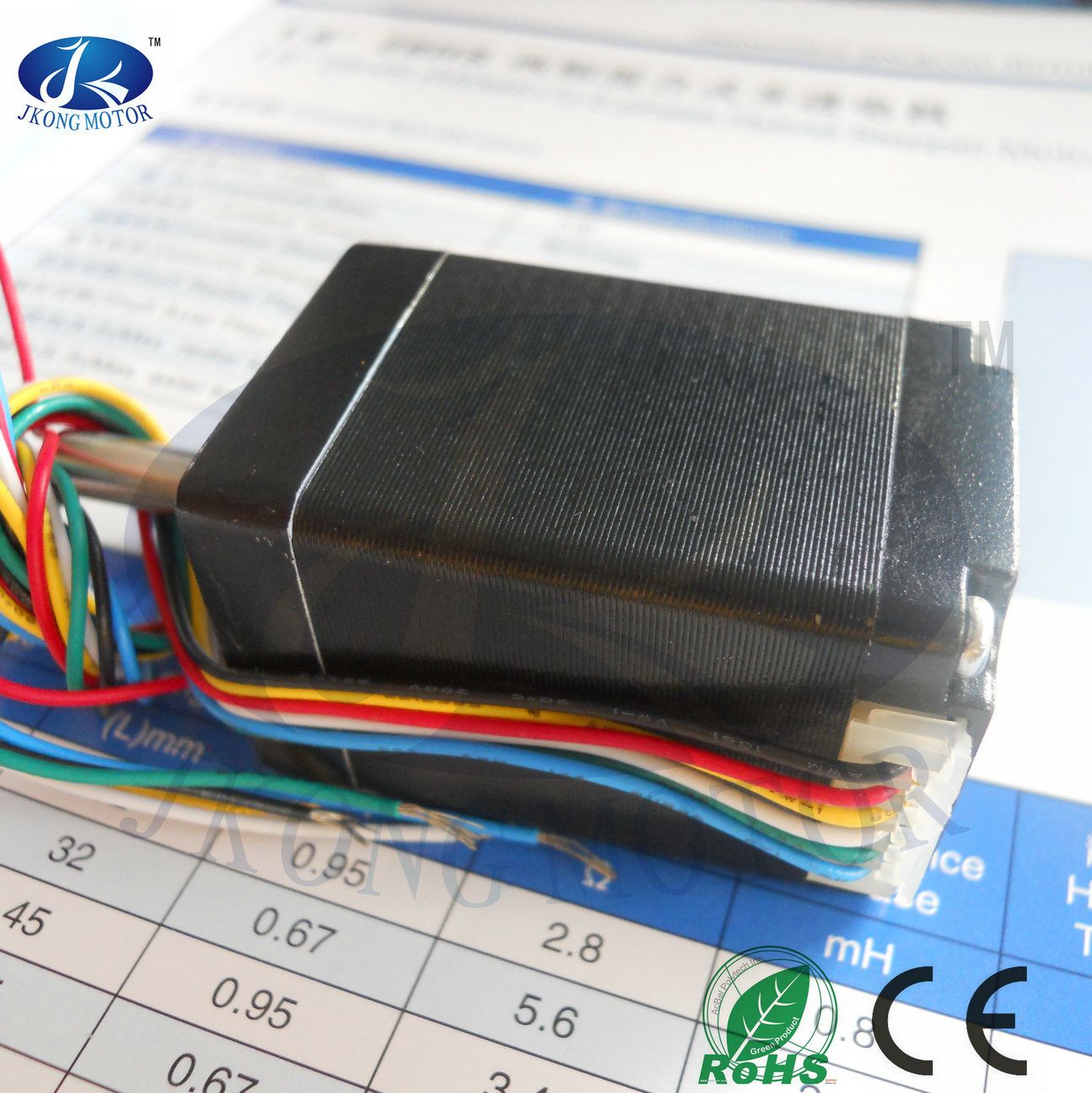

NEMA11 1.8 Degree 2 Phase NEMA Stepper Motor JK
NEMA11 Hybrid Stepper Motor
Model Number: JK28HS51-0956
Phase: 2 Phase
Lead Wire (No. ): 6 wires
Structure: Hybrid
Step Angle: 1.8 degree
Motor Height: 51 mm
Current: : 0.95A
Resistance: 4.6Ω
Inductance: 1.8 mH
Rotor Inertia: 18 g. Cm²
Motor Weight: 0.2KG
Holding Torque: 900 g. Cm
Speed: Low / High speed
Certification: CE, RoHS, ISO9001
Shape: Square
Applications: Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor. CNC router stepper motor.
Description:
1.8 degree Size 28mm Hybrid stepper motor. 3D Printer stepper motor
28mm size stepper motor, NEMA8 stepping motor,
Small stepping motors, 2 phase 28mm stepper motor, Stepper motor 28mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor,
Advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor.
CNC router stepper motor.
About our manufacturer:
We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. We can supply OEM service.
Our products all with CE and RoHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd
JKM mainly specializes in the field of R&D and produces the automotion and motion controller products. For over 6 years development, we have many series inJKM, our products from NEMA8, NEMA11, NEMA16, NEMA17, NEMA23, NEMA34, NEMA42 stepper motor which are in best quality and can be used in many kinds of machines, such as CNC machine, medical equipment, weaving printing equipments and so on.
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.
High quality.
Competitive price,
Good Packing,
Fast Delivery.
Timely after-sales service.
If you need more information. Please contact with us, our contact information:
Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Contact Person: Ms Jane
More Quantity. More discount! ! !
|
Model No. |
Step Angle |
Motor Length |
Current
/Phase |
Resistance
/Phase |
Inductance
/Phase |
Holding Torque |
# of Leads |
Rotor
Inertia |
|
( °) |
(L)mm |
A |
Ω |
mH |
g.cm |
No. |
g.cm² |
|
JK28HS51-0956 |
1.8 |
51 |
0.96 |
4.6 |
1.8 |
900 |
6 |
18 |
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 1, 500 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor.
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
