Product Specifications
| Prod Model: |
3.0m3/min |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Type: |
Piston |
| Lubrication Style: |
Lubricated |
| Application: |
Back Pressure Type, Intermediate Back Pressure Type, High Back Pressure Type, Low Back Pressure Type |
| Mute: |
Not Mute |
| Voltage: |
220V 380V 440V |
Product Description

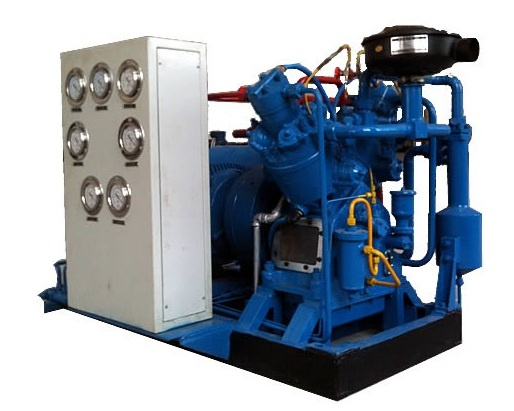

High pressure water-cooling compressor: Mainly used in aerospace, submarine inflatable, petroleum, metallurgy, light industry, defense industry, shipbuilding, machinery, research, cylinder testing, product testing, and other areas of high phosphorus
Compact structure, simple operation, beautiful appearance, easy installation, overall vibration, high reliability, completely replace the imported products;
After drying equipment, atmospheric dew point can be reached to 55 degrees Celsius
Note: 1, The voltage of the over 220KW machine can be 6000V or 10000VAS the customers requirement.
2, We can also supply customized for the specially models.
|
Model |
Air discharge
Nm3/min |
Discharge Pressure
Mpa |
Motor running speed r.p.m |
Size mm
L×W×H |
Motor |
Weight KG |
|
Power KW |
Voltage V |
|
2V-1 |
1.0 |
15-35
|
970 |
1700×1100×1220 |
30 |
380 |
1000 |
|
V-2 |
2.0 |
740 |
2100×1800×1400 |
45 |
380 |
2000 |
|
2W-2.3 |
2.3 |
980 |
2800×1700×1600 |
55 |
380 |
3000 |
|
V-3 |
3.0 |
980 |
2100×1800×1400 |
75 |
380 |
2000 |
|
W-6 |
6.0 |
740 |
3000×2900×1800 |
110 |
380 |
6000 |
|
W-7.5 |
7.5 |
740 |
3000×2900×1800 |
132 |
380 |
7000 |
|
W-10 |
10.0 |
740 |
3100×3000×1900 |
200 |
380 |
7000 |
|
W-12 |
12.0 |
740 |
3100×3000×1900 |
250 |
380 |
9000 |
|
2W-2.3/420 |
2.3 |
40-42 |
980 |
2800×1700×1600 |
65 |
380 |
3000 |
|
V-3/420 |
3 |
980 |
2100×1800×1400 |
75 |
380 |
3000 |
|
W-6/420 |
6 |
740 |
3000×2900×1800 |
132 |
380 |
7000 |
|
W-7.5/420 |
7.5 |
740 |
3000×2900×1800 |
185 |
380 |
8000 |
|
W-10/420 |
10 |
740 |
3100×3000×1900 |
220 |
380 |
8000 |
|
W-12/420 |
12 |
740 |
3100×3000×1900 |
285 |
380 |
9000 |
Shanghai Shang Zhen Compressor Co., Ltd. Is located in Shanghai Jiading - Near F1 Chinese Speedway.
Shang Zhen compressor to focus on:
Blowing air compressor: 30-42 bar
High pressure air compressor: 100-450 bar
Medium pressure compressor: 20-100 bar
Screw compressor: 1.0-80.0 Nm3/min
Power station compressor: 30-100bar
Oil-free compressor: 9-40 bar
In addition, we also offer: Unloading compressor, booster air compressor, piston air compressor and air compressor post-processing equipment,
Air compressor station design, installation and maintenance of air compressor, maintenance, upgrading.
Products using first-class design and technology, precision processing and testing equipment, has passed ISO9001 and CE certification. Products are currently
Sold in more than 70 countries and regions.
Product significant advantages:
Low speed, heavy duty, efficient, stable, 24 hours of continuous work;
Easy installation and low maintenance costs;
Air-cooled, water-cooled, single and multi-machine flexible combination;
Satisfy the use of various operating conditions;
Years of service in the air compressor industry professional team;
Products widely used in:
Blown bottles, electric power, military, leak detection, refrigeration, steel, shipbuilding, petrochemical, machinery, electronics, food and beverage, aerospace, mining and so on all economic sectors.
Distributed in various countries and regions offices and partners, professional staff to provide you with leading technology and excellent quality products, but also provide quality pre -sales, after-sales service, in order to ensure that you can choose to go to the satisfaction of the device, to enjoy the attentive service.
