Product Specifications
| Prod Model: |
UD-3206Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Print Head: |
Spt 510/35pl |
| Ink & Color: |
Solvent Ink C M Y K LC Lm (6 Colors) |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| Plate: |
Digital Printing |
| Structure: |
Roll to Roll |
| Usage: |
Signage Printer |
| Printing Speed: |
85m2/Hr |
| System Supported: |
XP, Vista, Win 7 |
Product Description

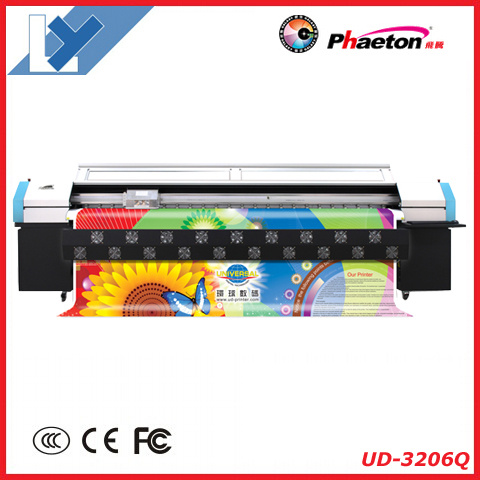

Phaeton Seiko Solvent Printer UD-3206Q:
1, Equipped with Seiko SPT510/35pl print head.
2, X,Y axis AC servo motors / bearing rail, stable and long durability.
3, Full aluminum platform, more strong and flat.
4, Individual positive pressure cleaning.
Model | UD-3206Q | UD-3208Q |
| Print Head | Type | Seiko Spt510 – 35pl |
| Quantity | 6 | 4 * 2 |
| Resolution (dpi) | 1080 |
| Color | 6 color | Double 4 color |
| Speed | Draft | 39m2/hr | 76m2/hr |
| Standard | 27m2/hr | 51m2/hr |
| Quality | 18m2/hr | 34m2/hr |
| Media | Width | Max 3300mm (129.92') |
| Type | Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film etc |
| Weight | Roll media: 80kgs |
| Thickness | Max 4mm |
| Feeding and Take-up | Equipped |
| Cleaning System | Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System |
| Heating System | 3 way intelligent heater |
| Clamp | Equipped |
| Rip Software | Photoprint, Maintop, Wasatch (optional) |
| Print Head Height | 2-6mm (adjustable) |
| Interface | USB2.0 |
| Power | AC220V, 50HZ/60HZ |
| Dimension (mm) | Machine | L4500*W905*H1260 mm 362KGS |
| Packing | L4650*W970*H1550 mm 582KGS |
Founded in 2001, LiYu Tech Ltd has developed from a domestic advertising materials supplier into an international professional advertising equipment and materials supplier in the past 10 years. With our sales and service networks established all over the world, and close collaboration with other international companies, we have sold our products to Europe, Africa, Asia, North America and South America.
Based on the Operation philosophy of "Faithful, Professional, Enterprising, Innovative", LiYu Tech Ltd has been contributing strength on the international signs industry, with bringing stable and quality products to both local and foreign customers and being a part of their financial success. We always focus on Win-Win-Win situation: We win, customer win, end user win.
In early 2005, HongKong LiYu Tech Ltd moved its headquarters to Shenzhen and had built up 8 branches in Mainland of China in later 5 years to increase our customers' satisfaction. Our goal is to set up more and more overseas sale and service center to better serve the sings industry. The AGENT is welcome to join us! !
China has largest advertising market and will be the biggest inkjet printers production base in the near future, LiYu Tech Ltd would like to share this growth with our customer by providing the guarantee of quality products and first class service. We firmly believe honesty and trust is the key to the international trade and continuous development. We are ready to work with the professionals who share the same ideals in the sign industry.
