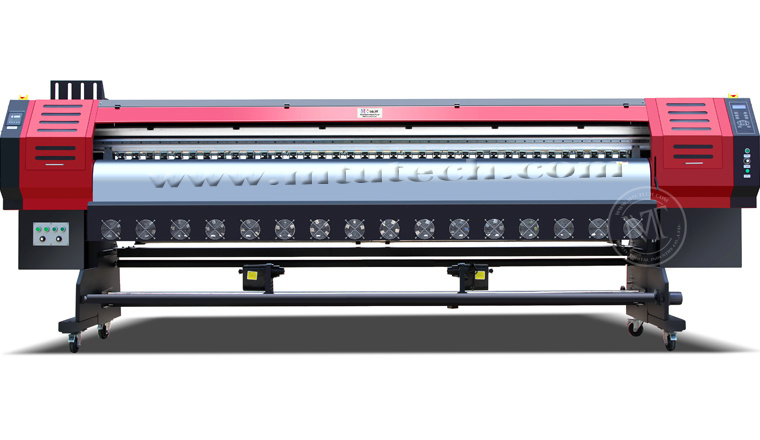

3.2m Width Large Format Eco-Solvent Printer

Product Specifications

Prod Model:	MT-3207DE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Print Head:	Dx5 / Dx7 Optional
Printer Width:	1.8 Meter and 3.2 Meter
Printing Resolution:	1440*1440dpi
Drying System:	3 Heaters for Drying
Software:	Maintop / Photoprint Optional
Printing Interface:	USB2.0
Plate:	Digital Printing
Structure:	Roll to Roll Printer
Color & Page:	4 Colors-Cmyk
Usage:	Indoor and Outdoor Advertisement Printing
Printing Speed:	40.5 M2/Hour
System Supported:	Win XP & Win 7

Product Description

DX7 Micro Piezo print Technology
DX7 print head with micro piezo print technology can show not only the excellent printing quality, but also the durability to the Eco-solvent inks. DX7 print head has a longer and more durable working life. The improvement of printing precision makes the ink droplets smaller, and the stability is better than that of DX5 print head.

3.2m Super-Wide Print Width
Not only can meet the demands of regular printing, but also accepts the special order of super-wide size and expand the business range. Super-wide inkjet printer can use in the textile and other special fields, and the precision is much better than that of the common solvent printers.

Dual Print Head Design
The technology of two print heads is the mature technology that we bring out to the market in the early stage for years. Now the product with two DX-7 print heads will definitely replace the previous version of printers with DX-5 print heads.

Comprehensive Media Handling
The standard media handling includes the automatic feeding&take up system that can load up as heavy as 200kgs. The heating system and hot air drying system which can now easily print on flex banner and diversity media.

5. 1.8m Printer also Available
For the best product coverage, the 1.8m printers with one DX-7 print head model, and two DX-7 headsmodel are also available for your easy choice and best buy.

Type		MT-3207DE Eco Solvent Printer
Print Head		Two DX7 Drop-on-demand Micro-Piezo Print Heads
Number of Nozzles		2880 Nozzles (2 Heads )
Color		4 Colors:Cyan, Magenta, Yellow, Black
Resolution		1440dpi (max)/1440dpi
Height of Print Head		2-5mm
Size of Ink Droplet		1.5-21 pl
Max. Print Width		3200mm
Max. Media Width		3300mm (max)/3300mm
Real Time Tracking		None
Print Speed	3pass	40.5sq.m per hour
	4pass	32.0sq.m per hour
	6pass	25.0sq.m per hour
	8pass	13.8sq.m per hour
Media Feeder		Yes, support 3.2m width, also support two small roll media printing at same time
Media Take-up		Yes, support 3.2m width, also support two small roll media printing at same time
Material	max weight	200kgs
	application type	Flex,Banner,Knife Coated Substrate,Double Side Printing Banner PVC,Advertising Cloth,Adhesive Vinyl,One Way Vision, Mesh,Reflective Banner,Reflective Vinyl,Eco Solvent Media
Ink	Type	Eco Solvent Ink
	Ink tank account	Continuous Ink Supply System
Auto cleanning system		yes
Interface		USB2.0
Power	Power Voltage	AC220-240V 50-60HZ
Control Software		yes
Rip software		Maintop, Photoprint, Wasatch
Operation System		MS Windows XP & Windows 7
Printing Environment		Temperature: 20-25 centi degree, Humidity: 40-60%
Picture type		JPG PSD TIF
Printer Dimension		W4300*D900 * H1250mm
Packing Dimension		W4350*D930 * H730mm
Net Weight		450kgs
Gross Weight		550kgs
