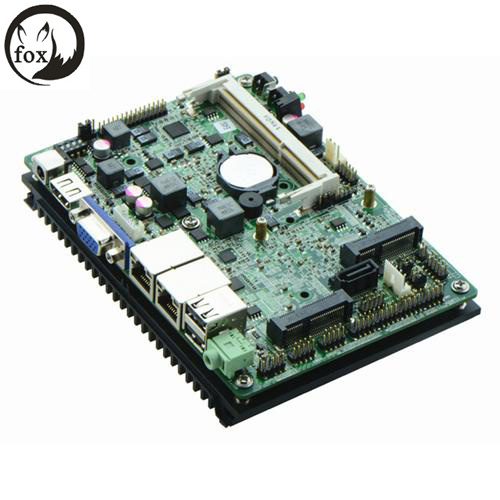

3.5 Inch X86 Embedded AMD Motherboard Fanless Computer Motherboard T56n Embedded Motherboard

Name: 3.5 Inch X86 Embedded AMD Motherboard Fanless Computer Motherboard T56n Embedded Motherboard
Brand: china-manufacturer-directory.com
SKU: 742777555
Availability: InStock
Rating: 4.5 (127 reviews)

Supplier:	Huizhou Dayawan Fox Etech Limited
Price:	US $ 165/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	EPIC-N45_E450
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LAN Port:	Onboard Dual Gigabit LAN Port
Integrated Graphics:	Integrated Graphics
Main Chipset:	AMD
Maximum Memory Capacity:	4G
Structure:	Mini-ITX
Memory:	DDR3
SATA Interface:	SATA2.0
Printed Circuit Board:	Six Layer
Main Board Structure:	Integrated
Audio Effects:	Not HiFi

Product Description

3.5 inch X86 Embedded AMD Motherboard Fanless Computer Motherboard T56N Embedded Motherboard

Specifications

1. AMD T56N CPU
2. 3.5" AMD motherboard
3. Support 1080P Playing
4. AMD Radeon HD6310 GPU
5. Onboard Dual Gigabit Lan Port

Product Description
3.5 inch AMD Motherboard Fanless Computer Motherboard T56N Embedded Motherboard

Model NO.	EPIC-N45_E450 VER: 1.1
CPU	AMD T56N Dual-core Processor 1.65GHz
Chipset	AMD Hudson M1 Chipset
Memory	1* 204pin SO-DIMM DDRIII 800/1066MHz,Max. up to 4GB
Graphics	Built-in AMD Radeon HD6320,support VGA/HDMI/LVDS synchronous/asynchronous display
Graphics	Support 1080P video playback( LVDS supports single 24bit and dual 24bit )
Expansion slots	1* Mini-PCIE (Wireless LAN)
LAN	2* RTL8111E 10/100/1000Mbps Ethernet
LAN	Support Wake-on-LAN and PXE
Storage	1* SATAII
	1* JSATAII pin
	1* MSATA (support SSD)
Audio	Integrated Realtek HD ALC662 for 6-Channel output Support MIC, Line-out
Rear I/O	1* 12VDC_JACK input
	1* HDMI
	1* VGA
	2* RJ-45 LAN
	2* USB 2.0
	1* AUDIO( Line out )
	1* POWER 1* RESET 1* LED1( POWERLED/HDDLED ) Front Panel
Internal I/O	1* LVDS 2*15pin
	1* JVGA 2*5pin
	4* COM (COM1 support RS232/RS422/RS485)
	1* TX-RXCOM RS422/485
	4* USB 2.0
	1* KB2
	1* AUDIO pin (Front Audio interface 2*5pin)
	1* FP1 (2*5pin Front panel buttons and LED connected)
	1* CIR
	1* PWROUT (Hard drive power connector)
	1* LVDS INVERTER
Fun interface	1* CPUFAN 3pin
GPIO	1* GPIO (2*5pin supports 4-way GPIO function)
BIOS	AMI 16MB Flash ROM
Watchdog	Support hardware reset function (L256, 0~255 seconds)
Power	DC_12V single power supply
Operating Temp.	-10°C~ 60 °C
Storage Temp.	-20°C~ 70 °C
Humidity	0%-95%(relative humidity; non-condensing)
Dimension	148mm x 102mm
